Numerical Equivalence Testing

Test numerical equivalence between model components and production code that you generate from the components by using GPU acceleration and processor-in-the-loop (PIL) simulations.

With a GPU acceleration simulation, you test source code on your development computer. With a PIL simulation, you test the compiled object code that you intend to deploy on a target hardware by running the object code on real target hardware. To determine whether model components and generated code are numerically equivalent, compare GPU acceleration and PIL results to normal mode results.

Target Connectivity Configuration for PIL

Before you can run PIL simulations, you must configure target connectivity. The target connectivity configuration enables the PIL simulation to:

  • Build the target application.

  • Download, start, and stop the application on the target.

  • Support communication between Simulink® and the target.

To produce a target connectivity configuration for hardware platforms such as NVIDIA® DRIVE and Jetson, install the MATLAB® Coder™ Support Package for NVIDIA Jetson® and NVIDIA DRIVE™ Platforms.


Starting in R2021a, the GPU Coder™ Support Package for NVIDIA GPUs is named MATLAB Coder Support Package for NVIDIA Jetson and NVIDIA DRIVE Platforms. To use this support package in R2021a, you must have the MATLAB Coder product.

Target Board Requirements

  • NVIDIA DRIVE or Jetson embedded platform.

  • Ethernet crossover cable to connect the target board and host PC (if you cannot connect the target board to a local network).

  • NVIDIA CUDA® toolkit installed on the board.

  • Environment variables on the target for the compilers and libraries. For information on the supported versions of the compilers, libraries, and their setup, see Install and Setup Prerequisites for NVIDIA Boards (MATLAB Coder Support Package for NVIDIA Jetson and NVIDIA DRIVE Platforms).

Create Live Hardware Connection Object

The support package software uses an SSH connection over TCP/IP to execute commands while building and running the generated CUDA code on the DRIVE or Jetson platforms. Connect the target platform to the same network as the host computer or use an Ethernet crossover cable to connect the board directly to the host computer. For how to set up and configure your board, see NVIDIA documentation.

To communicate with the NVIDIA hardware, create a live hardware connection object by using the jetson (MATLAB Coder Support Package for NVIDIA Jetson and NVIDIA DRIVE Platforms) or drive (MATLAB Coder Support Package for NVIDIA Jetson and NVIDIA DRIVE Platforms) function. To create a live hardware connection object by using the function, provide the host name or IP address, user name, and password of the target board. For example, to create live object for Jetson hardware:

hwobj = jetson('','ubuntu','ubuntu');

The software performs a check of the hardware, compiler tools, libraries, IO server installation, and gathers peripheral information on target. This information is displayed in the Command Window.

Checking for CUDA availability on the Target...
Checking for NVCC in the target system path...
Checking for CUDNN library availability on the Target...
Checking for TensorRT library availability on the Target...
Checking for Prerequisite libraries is now complete.
Fetching hardware details...
Fetching hardware details is now complete. Displaying details.
 Board name        : NVIDIA Jetson TX2
 CUDA Version      : 9.0
 cuDNN Version     : 7.0
 TensorRT Version  : 3.0
 Available Webcams : UVC Camera (046d:0809)
 Available GPUs    : NVIDIA Tegra X2

Alternatively, to create live object for DRIVE hardware:

hwobj = drive('','nvidia','nvidia');


If there is a connection failure, a diagnostics error message is reported on the MATLAB command window. If the connection has failed, the most likely cause is incorrect IP address or host name.

Example: The Mandelbrot Set


The Mandelbrot set is the region in the complex plane consisting of the values z0 for which the trajectories defined by this equation remain bounded at k→∞.

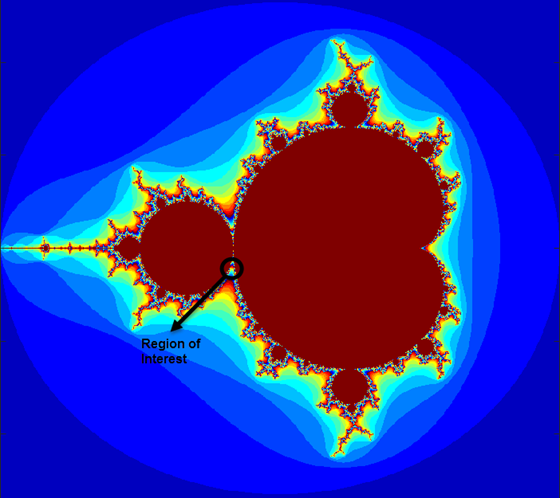

The overall geometry of the Mandelbrot set is shown in the figure. This view does not have the resolution to show the richly detailed structure of the fringe just outside the boundary of the set. At increasing magnifications, the Mandelbrot set exhibits an elaborate boundary that reveals progressively finer recursive detail.

Geometry of the Mandelbrot set


For this tutorial, pick a set of limits that specify a highly zoomed part of the Mandelbrot set in the valley between the main cardioid and the p/q bulb to its left. A 1000-by-1000 grid of real parts (x) and imaginary parts (y) is created between these two limits. The Mandelbrot algorithm is then iterated at each grid location. An iteration number of 500 renders the image in full resolution.

maxIterations = 500;
gridSize = 1000;
xlim = [-0.748766713922161,-0.748766707771757];
ylim = [0.123640844894862,0.123640851045266];

This tutorial uses an implementation of the Mandelbrot set by using standard MATLAB commands running on the CPU. This calculation is vectorized such that every location is updated simultaneously.

GPU Acceleration or PIL Simulation with a Top Model

Test the generated model code by running a top-model PIL simulation. With this approach:

  • You test code generated from the top model, which uses the standalone code interface.

  • You configure the model to load test vectors or stimulus inputs from the MATLAB workspace.

  • You can easily switch the top model between the normal, GPU acceleration, and PIL simulation modes.

Create Mandelbrot Top Model

  1. Create a Simulink model and insert a MATLAB Function block from the User-Defined Functions library.

  2. Double-click the MATLAB Function block. A default function signature appears in the MATLAB Function Block Editor.

  3. Define a function called mandelbrot_count, which implements the Mandelbrot algorithm. The function header declares maxIterations, xGrid, and yGrid as an argument to the mandelbrot_count function, with count as the return value.

    function count = mandelbrot_count(maxIterations, xGrid, yGrid)
    % mandelbrot computation
    z0 = xGrid + 1i*yGrid;
    count = ones(size(z0));
    % Map computation to GPU
    z = z0;
    for n = 0:maxIterations
        z = z.*z + z0;
        inside = abs(z)<=2;
        count = count + inside;
    count = log(count);

  4. Open the block parameters for the MATLAB Function block. On the Code Generation tab, select Reusable function for Function packaging parameter.

    If the Function packaging parameter is set to any other value, CUDA kernels may not get generated.

  5. Add Inport (Simulink) blocks and Outport (Simulink) block from the Sources and Sinks library.

  6. Connect these blocks as shown in the diagram. Save the model as mandelbrot_top.slx.

    Simulink model showing connection between the blocks.

Configure the Model for GPU Acceleration

To focus on numerical equivalence testing, turn off:

  • Model coverage

  • Code coverage

  • Execution time profiling

model = 'mandelbrot_top';
set_param(gcs, 'RecordCoverage','off');
coverageSettings = get_param(model, 'CodeCoverageSettings');
set_param(model, 'CodeCoverageSettings',coverageSettings);
set_param(model, 'CodeExecutionProfiling','off');

Configure the input stimulus data. The following lines of code generate a 1000-by-1000 grid of real parts (x) and imaginary parts (y) between the limits specified by xlim and ylim.

gridSize = 1000;
xlim = [-0.748766713922161, -0.748766707771757];
ylim = [ 0.123640844894862,  0.123640851045266];
x = linspace( xlim(1), xlim(2), gridSize );
y = linspace( ylim(1), ylim(2), gridSize );
[xG, yG] = meshgrid( x, y );
maxIterations = timeseries(500,0);
xGrid = timeseries(xG,0);
yGrid = timeseries(yG,0);

Configure logging options in the model.

set_param(model, 'LoadExternalInput','on');
set_param(model, 'ExternalInput','maxIterations, xGrid, yGrid');
set_param(model, 'SignalLogging', 'on');
set_param(model, 'SignalLoggingName', 'logsOut');
set_param(model, 'SaveOutput','on')

Run Normal and PIL Simulations

Run a normal mode simulation.

sim_output = sim(model,10);
count_normal = sim_output.yout{1}.Values.Data(:,:,1);

Run a top-model PIL simulation.

set_param(model,'SimulationMode','Processor-in-the-Loop (PIL)')
sim_output = sim(model,10);
count_pil = sim_output.yout{1}.Values.Data(:,:,1);
### Target device has no native communication support.
Checking connectivity configuration registrations...
### Starting build procedure for: mandelbrot_top
### Generating code and artifacts to 'Model specific' folder structure
### Generating code into build folder:
### Generated code for 'mandelbrot_top' is up to date because no structural,
parameter or code replacement library changes were found.
### Evaluating PostCodeGenCommand specified in the model
### Using toolchain: NVCC for NVIDIA Embedded Processors
### '/mathworks/examples/sil_pil/mandelbrot_top_ert_rtw/' is
up to date
### Building 'mandelbrot_top': make  -f buildobj
### Successful completion of build procedure for: mandelbrot_top

Build Summary

Top model targets built:

Model                Action         Rebuild Reason
mandelbrot_top  Code compiled  Compilation artifacts were out of date.

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 22.94s
### Target device has no native communication support. Checking connectivity
configuration registrations...
### Connectivity configuration for component "mandelbrot_top": NVIDIA Jetson ###
PIL execution is using Port 17725.
PIL execution is using 30 Sec(s) for receive time-out.
### Preparing to start PIL simulation ...
### Using toolchain: NVCC for NVIDIA Embedded Processors
### '/mathworks/examples/sil_pil/mandelbrot_top_ert_rtw/pil/' is
up to date
### Building 'mandelbrot_top': make  -f all
### Starting application: 'mandelbrot_top_ert_rtw/pil/mandelbrot_top.elf'
### Launching application mandelbrot_top.elf...
PIL execution terminated on target.

Unless up-to-date code for this model exists, new code is generated and compiled. The generated code runs as a separate process on your computer.

Plot and compare the results of the normal and PIL simulations. Observe that the results match.

imagesc(x, y, count_normal);
colormap([jet();flipud( jet() );0 0 0]);
title('Mandelbrot Set Normal Simulation');
axis off;

imagesc(x, y, count_pil);
colormap([jet();flipud( jet() );0 0 0]);
title('Mandelbrot Set PIL');
axis off;

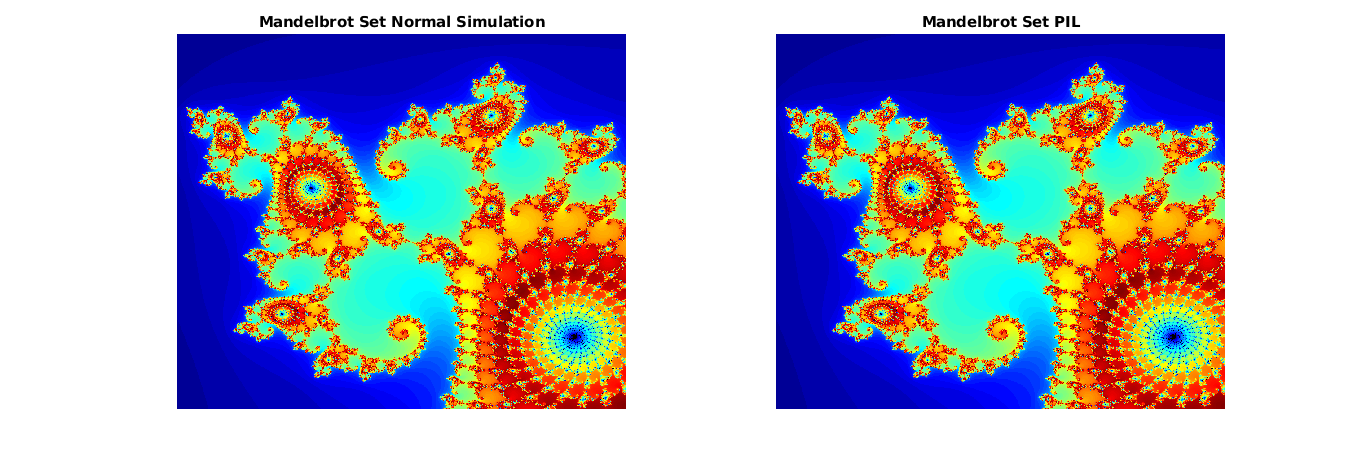

Mandelbrot set output from normal and PIL simulations

Clean up.

if ishandle(fig1), close(fig1), end
clear fig1
simResults = {'count_sil','count_normal','model'};
save([model '_results'],simResults{:});


MAT-file logging is not supported for Processor-in-the-loop (PIL) simulation with GPU Coder.
