# etfe

Estimate empirical transfer functions and periodograms

## Description

example

g = etfe(data) estimates a transfer function of the form:

$y\left(t\right)=G\left(q\right)u\left(t\right)+v\left(t\right)$

data contains time- or frequency-domain input-output data or time-series data:

• If data is time-domain input-output signals, g is the ratio of the output Fourier transform to the input Fourier transform for the data.

For nonperiodic data, the transfer function is estimated at 128 equally-spaced frequencies [1:128]/128*pi/Ts.

For periodic data that contains a whole number of periods (data.Period = integer ), the response is computed at the frequencies k*2*pi/period for k = 0 up to the Nyquist frequency.

• If data is frequency-domain input-output signals, g is the ratio of output to input at all frequencies, where the input is nonzero.

• If data is time-series data (no input channels), g is the periodogram, that is the normed absolute square of the Fourier transform, of the data. The corresponding spectral estimate is normalized, as described in Spectrum Normalization and differs from the spectrum normalization in the Signal Processing Toolbox™ product.

example

g = etfe(data,M) applies a smoothing operation on the raw spectral estimates using a Hamming Window that yields a frequency resolution of about pi/M. The effect of M is similar to the effect of M in spa. M is ignored for periodic data. Use this syntax as an alternative to spa for narrowband spectra and systems that require large values of M.

example

g = etfe(data,M,N) specifies the frequency spacing for nonperiodic data.

• For nonperiodic time-domain data, N specifies the frequency grid [1:N]/N*pi/Ts rad/TimeUnit. When not specified, N is 128.

• For periodic time-domain data, N is ignored.

• For frequency-domain data, the N is fmin:delta_f:fmax, where [fmin fmax] is the range of frequencies in data, and delta_f is (fmax-fmin)/(N-1) rad/TimeUnit. When not specified, the response is computed at the frequencies contained in data where input is nonzero.

## Examples

collapse all

Estimate empirical transfer function and smoothed spectral estimate.

ge = etfe(z1);
gs = spa(z1);

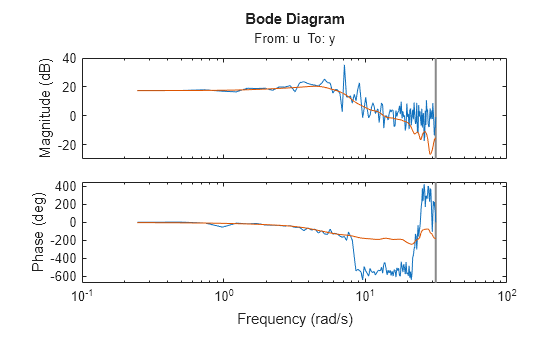

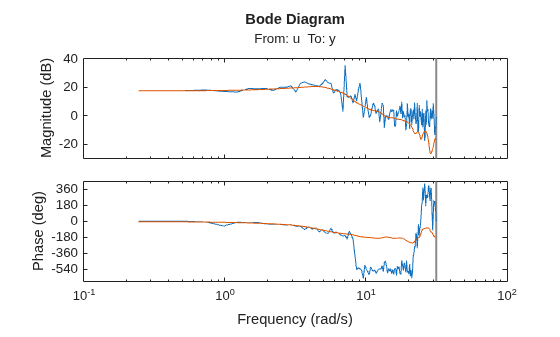

Compare the two models on a Bode plot.

bode(ge,gs)

Generate a periodic input, simulate a system with it, and compare the frequency response of the estimated model with the original system at the excited frequency points.

Generate a periodic input signal and output signal using simulation.

m = idpoly([1 -1.5 0.7],[0 1 0.5]);
u = iddata([],idinput([50,1,10],'sine'));
u.Period = 50;
y = sim(m,u);

Estimate an empirical transfer function.

me = etfe([y u]);

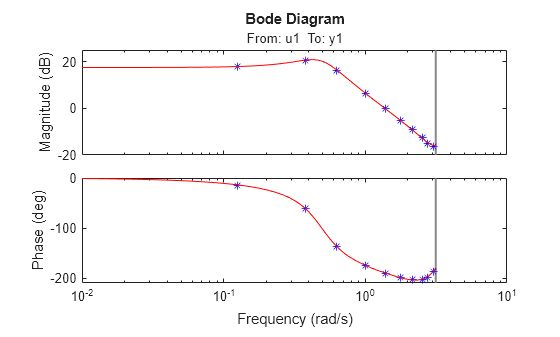

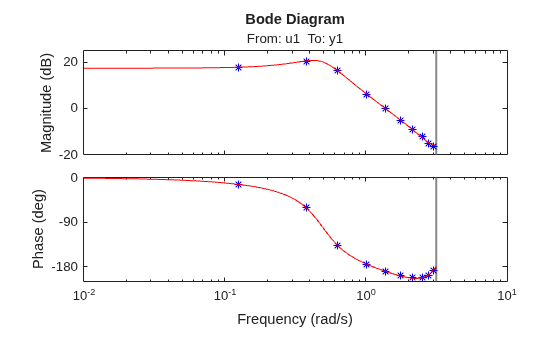

Compare the empirical transfer function with the original model.

bode(me,'b*',m,'r')

Perform a smoothing operation on raw spectral estimates using a Hamming Window and compare the responses.

Estimate empirical transfer functions with and without the smoothing operation.

ge1 = etfe(z1);
ge2 = etfe(z1,32);

Compare the models on a Bode plot.

ge2 is smoother than ge1 because of the effect of the smoothing operation.

bode(ge1,ge2)

Estimate empirical transfer functions with low- and high-frequency spacings and compare the responses.

Estimate empirical transfer functions with low and high frequency spacings.

ge1 = etfe(z9,[],32);
ge2 = etfe(z9,[],512);

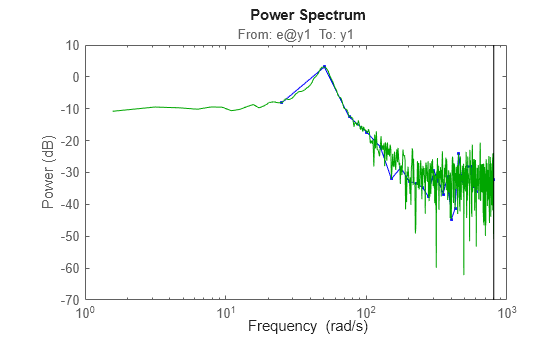

Plot the output power spectrum of the two models.

spectrum(ge1,'b.-',ge2,'g')

## Input Arguments

collapse all

Estimation data, specified as an iddata object. The data can be time- or frequency-domain input/output signals or time-series data.

Frequency resolution, specified as a positive scalar.

Frequency spacing, specified as a positive scalar. For frequency-domain data, the default frequency spacing is the spacing inherent in the estimation data.

## Output Arguments

collapse all

Transfer function estimate, returned as an idfrd model.

Information about the estimation results and options used is stored in the model's Report property. Report has the following fields:

Report FieldDescription
Status

Summary of the model status, which indicates whether the model was created by construction or obtained by estimation.

Method

Estimation command used.

WindowSize

Size of the Hamming window.

DataUsed

Attributes of the data used for estimation, returned as a structure with the following fields:

FieldDescription
Name

Name of the data set.

Type

Data type.

Length

Number of data samples.

Ts

Sample time.

InterSample

Input intersample behavior, returned as one of the following values:

• 'zoh' — Zero-order hold maintains a piecewise-constant input signal between samples.

• 'foh' — First-order hold maintains a piecewise-linear input signal between samples.

• 'bl' — Band-limited behavior specifies that the continuous-time input signal has zero power above the Nyquist frequency.

InputOffset

Offset removed from time-domain input data during estimation. For nonlinear models, it is [].

OutputOffset

Offset removed from time-domain output data during estimation. For nonlinear models, it is [].
