This example shows how to explore 3-D labeled volumetric data using the Volume Viewer app. Using the app, you can view the labeled volume by itself or view the labels as an overlay on the intensity volume. To illustrate, the example loads an intensity volume that shows the human brain with labeled areas that show the location and type of tumors found in the brain.
This part of the example shows how to load a labeled volume and an intensity volume into the Volume Viewer.
Load the MRI intensity data of a human brain and the labeled volume from MAT-files
into the workspace. This operation creates two variables in the workspace:
load(fullfile(toolboxdir('images'),'imdata','BrainMRILabeled','images','vol_001.mat')); load(fullfile(toolboxdir('images'),'imdata','BrainMRILabeled','labels','label_001.mat')); whos
Name Size Bytes Class Attributes label 240x240x155 8928000 uint8 vol 240x240x155 17856000 uint16
Open the Volume Viewer app. From the MATLAB® Tool strip, open the Apps tab and under Image Processing and Computer
Vision, click . You can also open the app using the

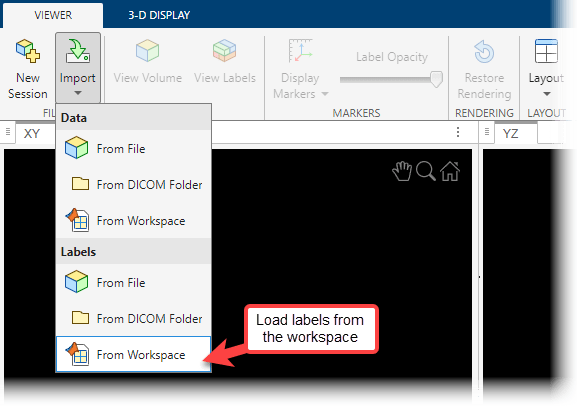

Load the labeled volume into the Volume Viewer app. Click Import Labeled Volume to open the labeled volume. You can load an image in a file name or load a variable from the workspace. (If you have volumetric data in a DICOM format that uses multiple files to represent a volume, you can specify the DICOM folder name.) For this example, choose the Import From Workspace option.

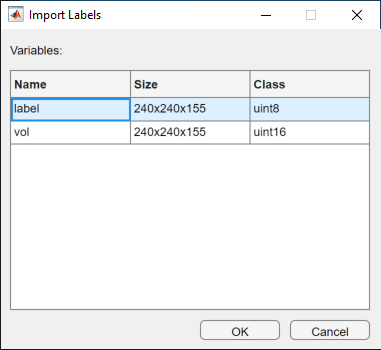

Select the workspace variable associated with the labeled volume data in the Import from Workspace dialog box and click OK.
In this part of the example, you view the labeled volume data in the Volume Viewer.

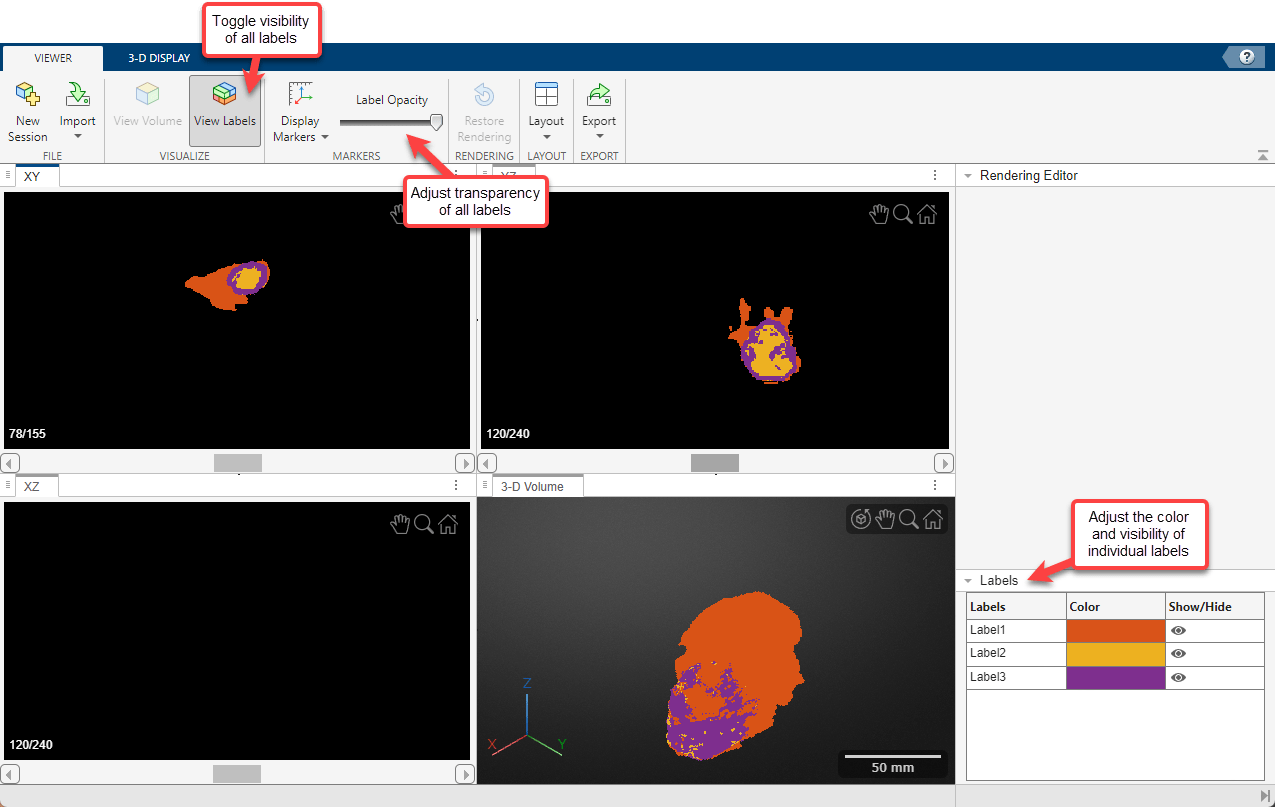

View the labeled volume in the Volume Viewer app. By default, the Volume Viewer displays the data as a labeled volume but you can also view it as slice planes. To explore the labeled volume, zoom in and out on the image using the mouse wheel or a right-click. You can also rotate the volume by positioning the cursor in the image window, pressing and holding the mouse, and moving the cursor. You are always zooming or rotating around the center of the volume. The position of the axes in the Orientation Axes window reflects the spatial orientation of the labeled volume as you rotate it.
Refine your view of the labeled volume using the Rendering Editor part of the Volume Viewer. You can use the Rendering Editor to view certain labels and hide others, change the color, and modify the transparency of the labels. Label 000 is the background and it is typically not visible. When you select the background label, the Show Labels check box is clear, by default. To select all the visible labels at once, select the background label and click Invert Selection. To change the color of a label (or all the labels), select the label in the Rendering Editor and specify the color in the Color selector. You can also control the transparency of the label using the Opacity slider.
In this part of the example, you view the labeled volume and the intensity volume in the Volume Viewer at the same time. Viewing the labeled volume overlaid on the intensity volume can provide context for the data.

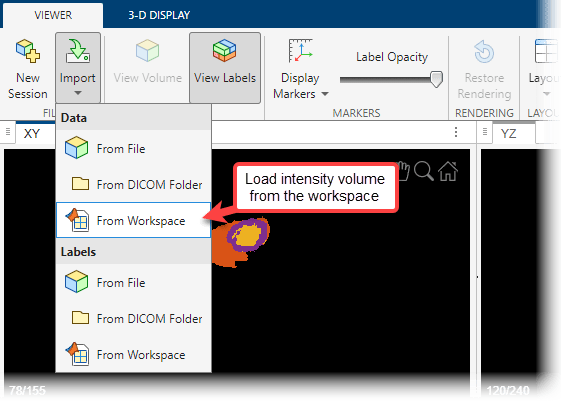

With the labeled volume already in the Volume Viewer, load the intensity volume into the app. Click Import Volume and choose the Import From Workspace option.

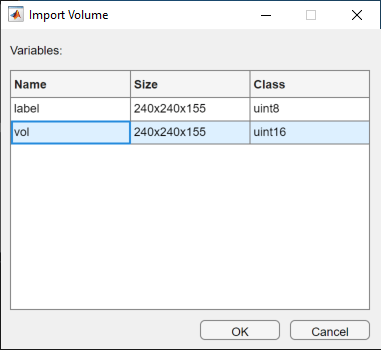

Select the workspace variable associated with the intensity volume in the Import from Workspace dialog box and click OK.

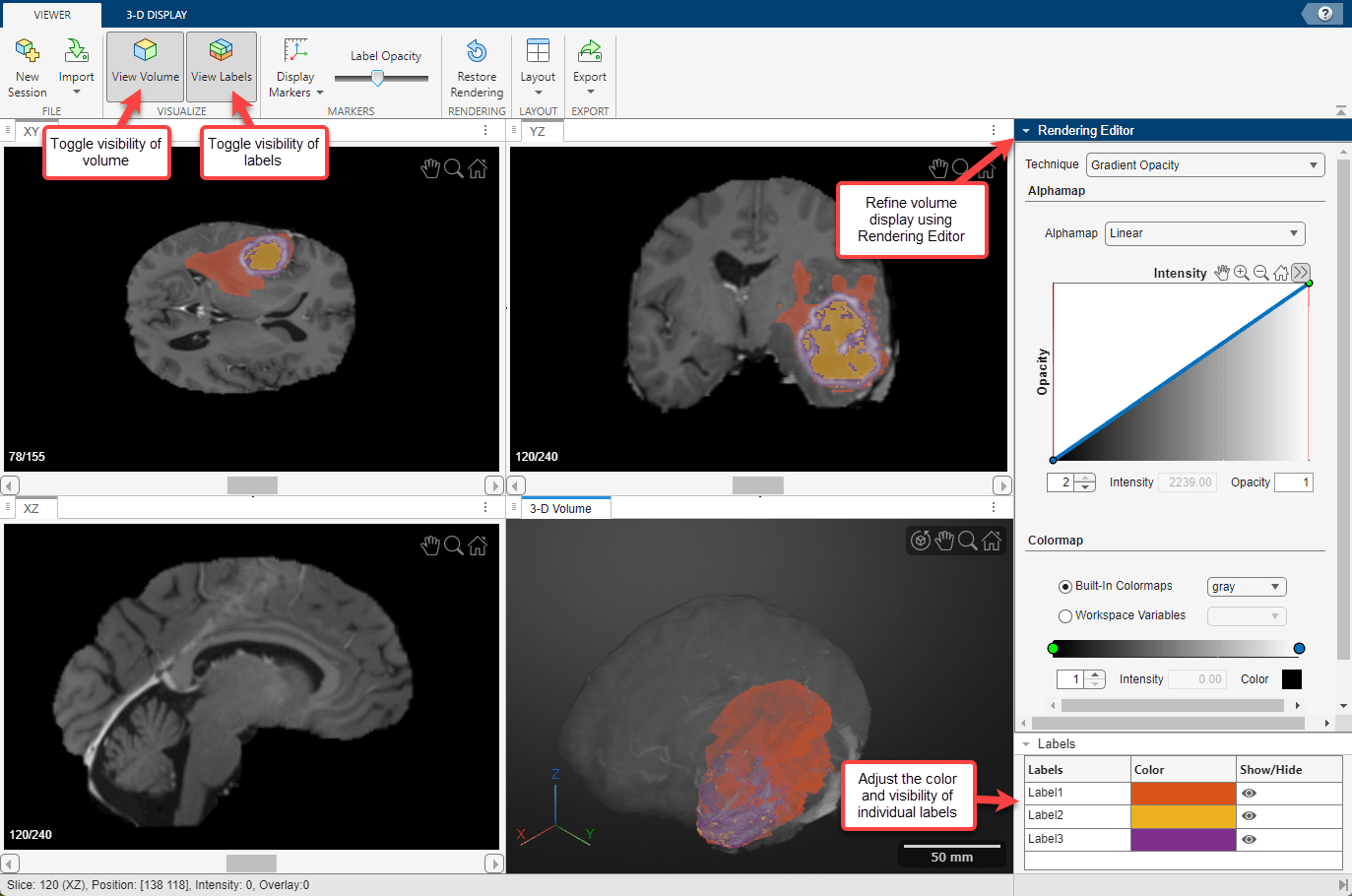

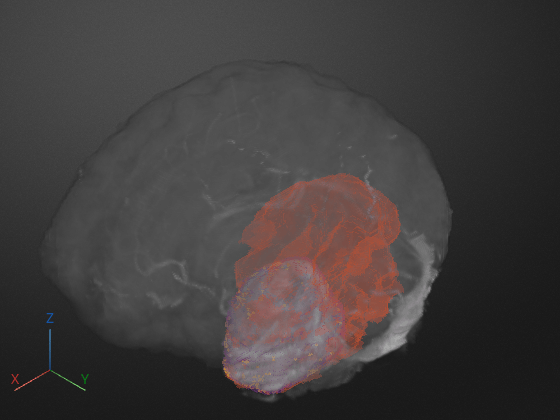

The Volume Viewer displays the labeled volume over the intensity volumetric data. By default, the Volume Viewer displays the label data and the intensity data as volumes but you can also view it as slice planes. To explore the labeled and intensity volumes, zoom in and out using the mouse wheel or a right-click. You can also rotate the volumes by positioning the cursor in the image window, pressing and holding the mouse, and moving the cursor. To view only the intensity volume, and hide the labeled volume, click View Volume.
Refine your view of the labeled volume and the intensity volume using options in the Rendering Editor. To only view the labeled volume, and hide the intensity volume, clear the Embed Labels in Volume check box. In the Labels area of the Rendering Editor, you can select any of the labels and change its color or transparency. Label 000 is the background. By default, the background is set to black and is not visible. The Show Labels check box is clear. To select all the labels, click on the background and then click Invert Selection. If the intensity volume is visible, you can modify the threshold value and transparency using the sliders in the Volume area of the Rendering Editor.
