Collect blocks into current workspace
Extract Finest and Coarsest Levels from Multiresolution Image
Create a blocked image using a modified version of image "tumor_091.tif" from the CAMELYON16 data set. The original image is a training image of a lymph node containing tumor tissue. The original image has eight resolution levels, and the finest level has resolution 53760-by-61440. The modified image has only three resolution levels. The spatial referencing of the modified image has been adjusted to enforce a consistent aspect ratio and to register features at each level.
bim = blockedImage('tumor_091R.tif');
gather to extract the coarsest resolution level. By default,
gather returns the coarsest level
level_coarsest = gather(bim);
gather to extract the finest resolution level. You must specify the resolution level. The finest resolution level is always numbered 1.
level_finest = gather(bim, "Level", 1);

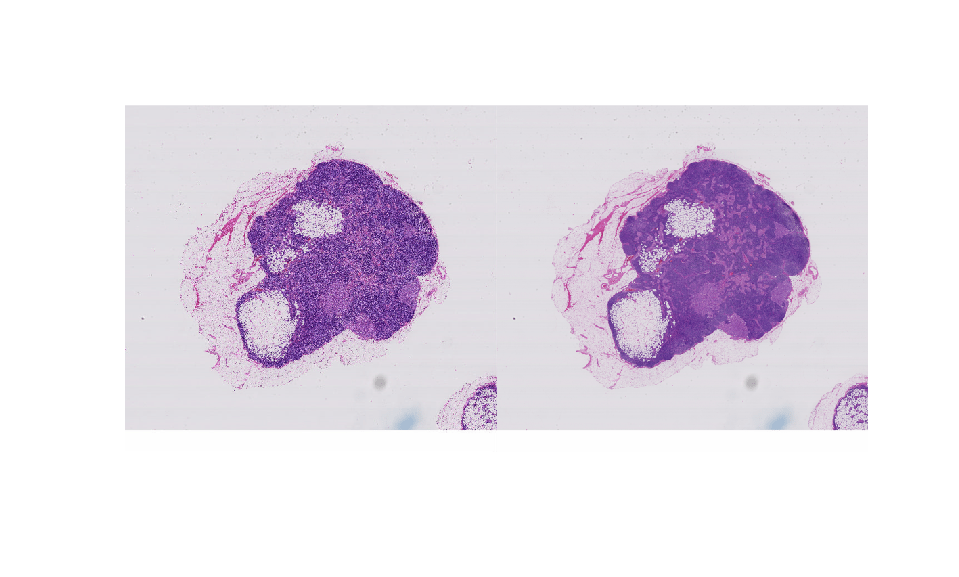

Display the coarsest resolution level and finest resolution level side-by-side.
data — Image formed from blocks
Image formed from blocks, returned as a numeric array of the type specified by the
ClassUnderlying property of the blocked image.
Introduced in R2021a
