images.spatialref.Rectangle

Spatial extents of 2-D rectangular region

Description

A Rectangle object stores the spatial extents of a 2-D image.

Creation

You can create a Rectangle object in the following ways.

  • centerCropWindow2d — Create a Rectangle of a specified size whose position is centered on an image of different size.

  • randomCropWindow2d — Create a Rectangle of a specified size whose position is selected randomly from within an image of different size.

  • Running the command

    r = images.spatialref.Rectangle(XLimits,YLimits)
    creates a Rectangle object and sets the XLimits and YLimits properties.

Properties

expand all

Minimum and maximum limits of the x-axis, specified as a 2-element numeric vector of the form [min max], where max is greater than min.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Minimum and maximum limits of the y-axis, specified as a 2-element numeric vector of the form [min max], where max is greater than min.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Examples

collapse all

Read and display an image.

I = imread('parkavenue.jpg');
imshow(I)

Specify a target window size as a two-element vector of the form [width, height].

targetSize = [300 600];

Create a Rectangle object that specifies the spatial extent of the crop window.

r = centerCropWindow2d(size(I),targetSize);

Crop the image to the spatial extents. Display the cropped region.

J = imcrop(I,r);
imshow(J)

Read and display an image.

I = imread('board.tif');

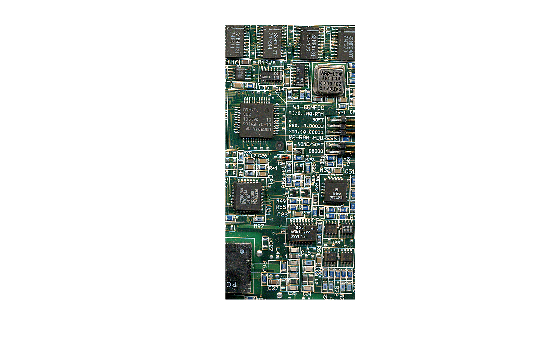

imshow(I)

Create a Rectangle object by specifying the horizontal and vertical spatial extents of the cropping window.

r = images.spatialref.Rectangle([200 300],[50 200])
r =
  Rectangle with properties:

    XLimits: [200 300]
    YLimits: [50 200]

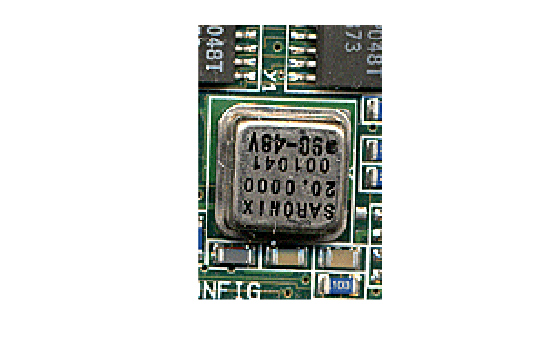

Crop the image to the spatial extents. Display the cropped region.

J = imcrop(I,r);
imshow(J)

Introduced in R2019b
