Use LTE Toolbox™ low-level functions to process and recover received downlink and uplink

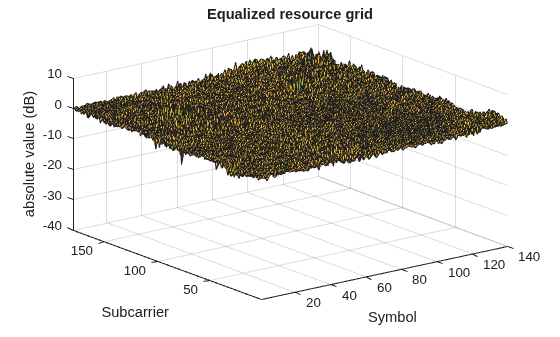

This example shows how to use the LTE Toolbox™ to create a frame worth of data, pass it through a fading channel and perform channel estimation and equalization. Two figures are created illustrating the received and equalized frame.

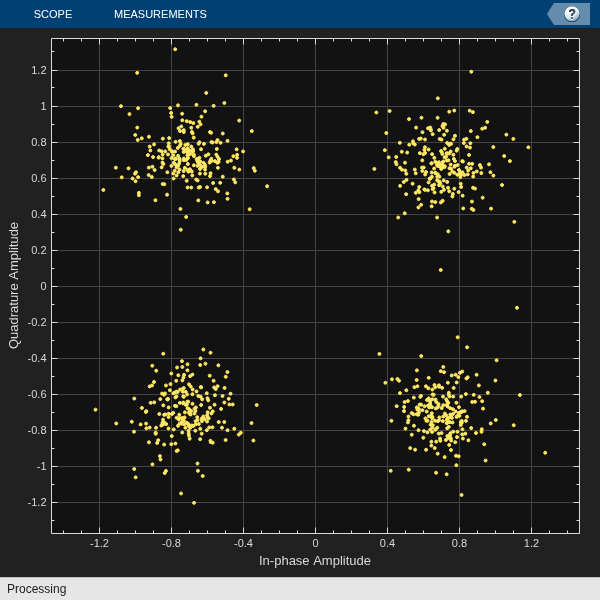

This example shows how the LTE Toolbox™ can be used to fully synchronize, demodulate and decode a live eNodeB signal. Before the User Equipment (UE) can communicate with the network it must perform cell search and selection procedures and obtain initial system information. This involves acquiring slot and frame synchronization, finding out the cell identity and decoding the Master Information Block (MIB) and the System Information Blocks (SIBs). This example demonstrates this process and decodes the MIB and SIB1, the first of the System Information Blocks. To decode MIB and SIB1 a comprehensive receiver is required, capable of demodulating and decoding the majority of the downlink channels and signals.

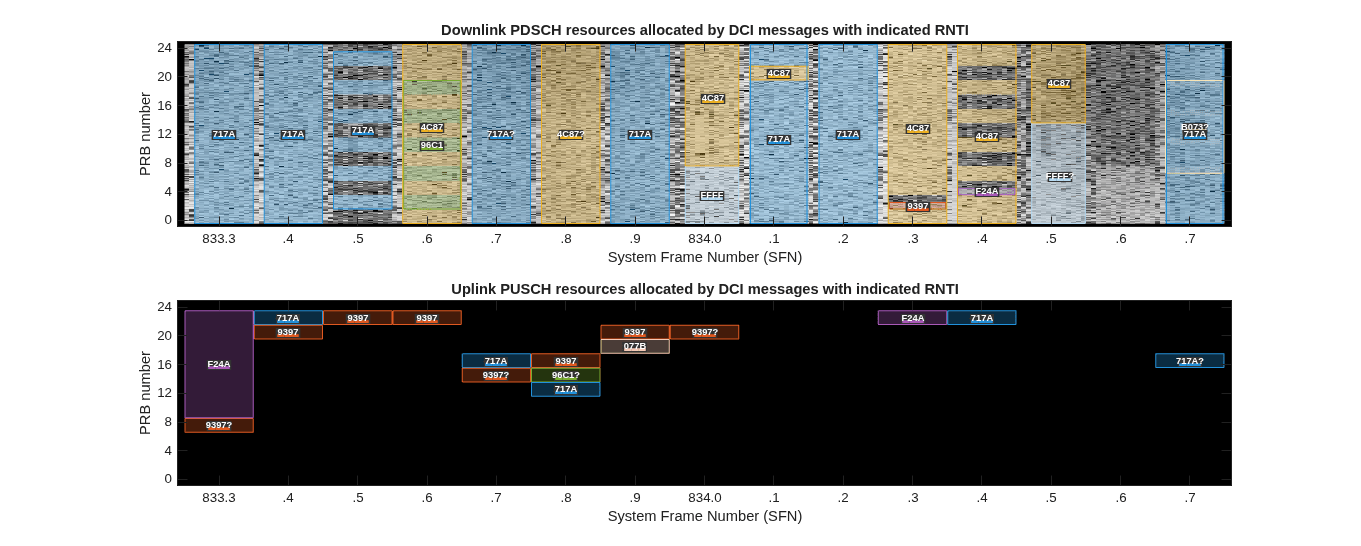

This example shows how LTE Toolbox™ can be used to detect the presence of UEs associated with an eNodeB. This is achieved by searching a downlink signal for DCI messages and establishing the set of unique identifiers (C-RNTIs) in use.
