Remove custom terrain data
Display Custom Terrain Using Geographic Globe

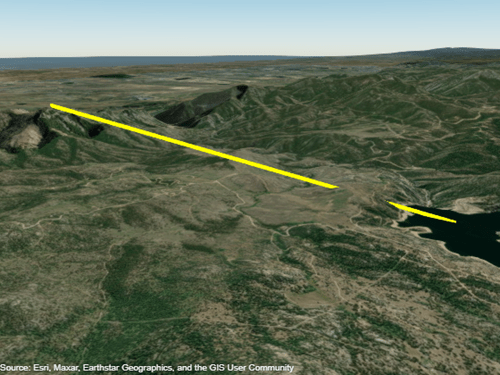

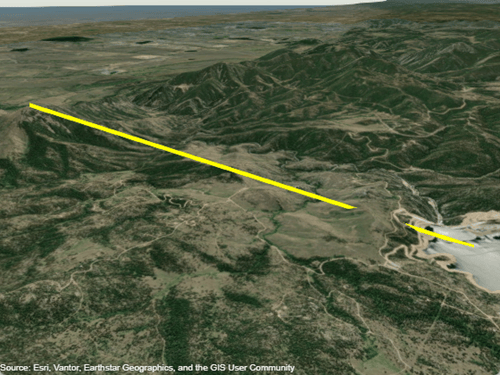

Display a line from the surface of Gross Reservoir to a point above South Boulder Peak using custom terrain.
First, add terrain for an area around South Boulder Peak by calling
addCustomTerrain and specifying a DTED file. The DTED file is from the SRTM Void Filled data set, available from the US Geological Survey. Name the terrain
Create a geographic globe. Specify the terrain by name, using the
"Terrain" argument of the
geoglobe function. Then, plot the line. Tilt the view by holding Ctrl and dragging.
uif = uifigure; g = geoglobe(uif,"Terrain","southboulderpeak"); lat = [39.95384 39.95]; lon = [-105.29916 -105.3608]; hTerrain = [10 0]; geoplot3(g,lat,lon,hTerrain,"y","HeightReference","Terrain","LineWidth",3)
Close the geographic globe and remove the custom terrain.
Introduced in R2020a
