Control Chart Interactivity

You can interactively explore and edit plotted data to improve the visual display of the data or reveal additional information about the data. The interactions available depend on the contents of the axes, but typically include zooming, panning, rotating, data tips, data brushing, and restoring the original view.

Some types of interactions are available through the axes toolbar. The toolbar is located at the top-right corner of the axes and expands when you click the Expand axes toolbar button.

Other types of interactions are built into the axes and are available through gestures, such as dragging to pan or scrolling to zoom. These interactions are controlled separately from those in the axes toolbar.

When you create a chart, you can control the set of available interactions in several ways:

• Expand, collapse, or remove the axes toolbar.

• Customize the axes toolbar.

• Enable or disable built-in interactions.

• Customize built-in interactions.

• Customize interaction behavior.

Expand, Collapse, or Remove Axes Toolbar

To expand or collapse the axes toolbar, set the Expanded property of the AxesToolbar object to "on" or "off", respectively. (since R2026a) To remove the toolbar, set the AxesToolbar object to []. For example, expand and then remove an axes toolbar.

f = figure;
ax = axes(f);
ax.Toolbar.Expanded = "on";
ax.Toolbar = [];

Customize Axes Toolbar

You can customize the options available in the axes toolbar using the axtoolbar and axtoolbarbtn functions.

For example, you can add a custom state button to the axes toolbar that toggles the visibility of the axes grid lines.

First, create a program file named mycustomstatebutton.m. Within the program file:

• Plot random data.

• Create a toolbar for the axes with options to zoom and restore the view using the axtoolbar function.

• Add an empty state button to the toolbar using the axtoolbarbtn function. Return the ToolbarStateButton object.

• Specify the icon, tooltip, and callback function for the state button by setting the Icon, Tooltip, and ValueChangedFcn properties. This example uses the icon, which you must first save as an image file named mygridicon.svg on your path.

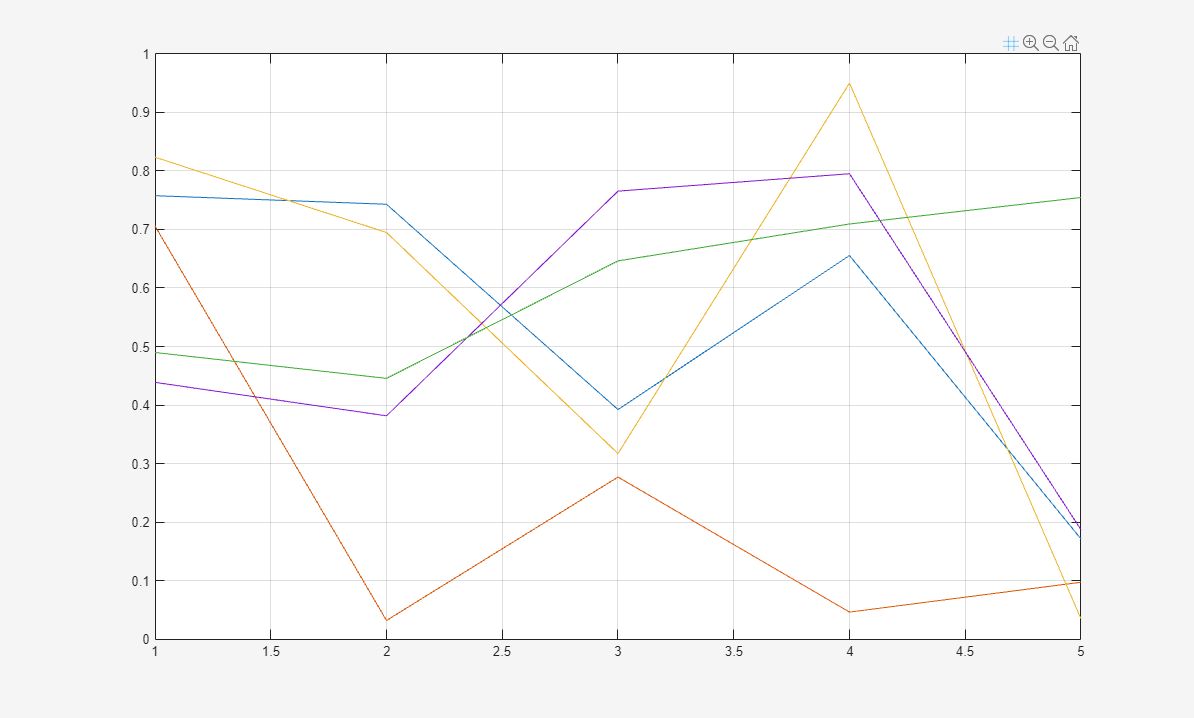

Run the program file, and click the icon to toggle the visibility of the grid lines.

function mycustomstatebutton

plot(rand(5))
ax = gca;
tb = axtoolbar(ax,{"zoom","restoreview"});

btn = axtoolbarbtn(tb,"state");
btn.Icon = "mygridicon.svg";
btn.Tooltip = "Grid Lines";
btn.ValueChangedFcn = @customcallback;

    function customcallback(src,event)
        switch src.Value
            case "off"
                event.Axes.XGrid = "off";
                event.Axes.YGrid = "off";
            case "on"
                event.Axes.XGrid = "on";
                event.Axes.YGrid = "on";
        end
    end

end

Enable or Disable Built-In Interactions

To control whether a set of built-in interactions is enabled within a chart, use the disableDefaultInteractivity and enableDefaultInteractivity functions. Sometimes MATLAB^® automatically disables the built-in interactions. For example, they might be disabled for charts that have special features, or when you implement certain callbacks such as a WindowScrollWheelFcn callback.

Customize Built-In Interactions

Most types of axes include a default set of built-in interactions that correspond to specific gestures. The interactions that are available depend on the contents of the axes. Most Cartesian axes include interactions for scrolling to zoom, hovering or clicking to display data tips, and dragging to pan (in a 2-D view) or rotate (in a 3-D view). You can replace the default set with a new set of interactions, but you cannot access or modify any of the interactions in the default set.

To replace the default interactions, set the Interactions property of the axes to an array of interaction objects. Choose a compatible combination of interaction objects from the following table. To delete all interactions from the axes, set the property to an empty array ([]).

Interaction Object	Description	Compatible Interactions
panInteraction	Pan within a chart by dragging.	All except regionZoomInteraction and rotateInteraction
rulerPanInteraction	Pan an axis by dragging it.	All
zoomInteraction	Zoom by scrolling or pinching.	All
regionZoomInteraction	Zoom into a rectangular region by dragging. (For 2-D Cartesian charts only)	All except panInteraction and rotateInteraction
rotateInteraction	Rotate a chart by dragging it.	All except panInteraction and regionZoomInteraction
dataTipInteraction	Display data tips by hovering, clicking, or tapping.	All

For example, create a plot containing 1000 scattered points. Expand the axes toolbar to see the available interactions.

x = 1:500;
y = randn(1,500);
y2 = 5*randn(1,500) + 10;
plot(x,y,".",x,y2,".");
ax = gca;
ax.Toolbar.Expanded = "on";

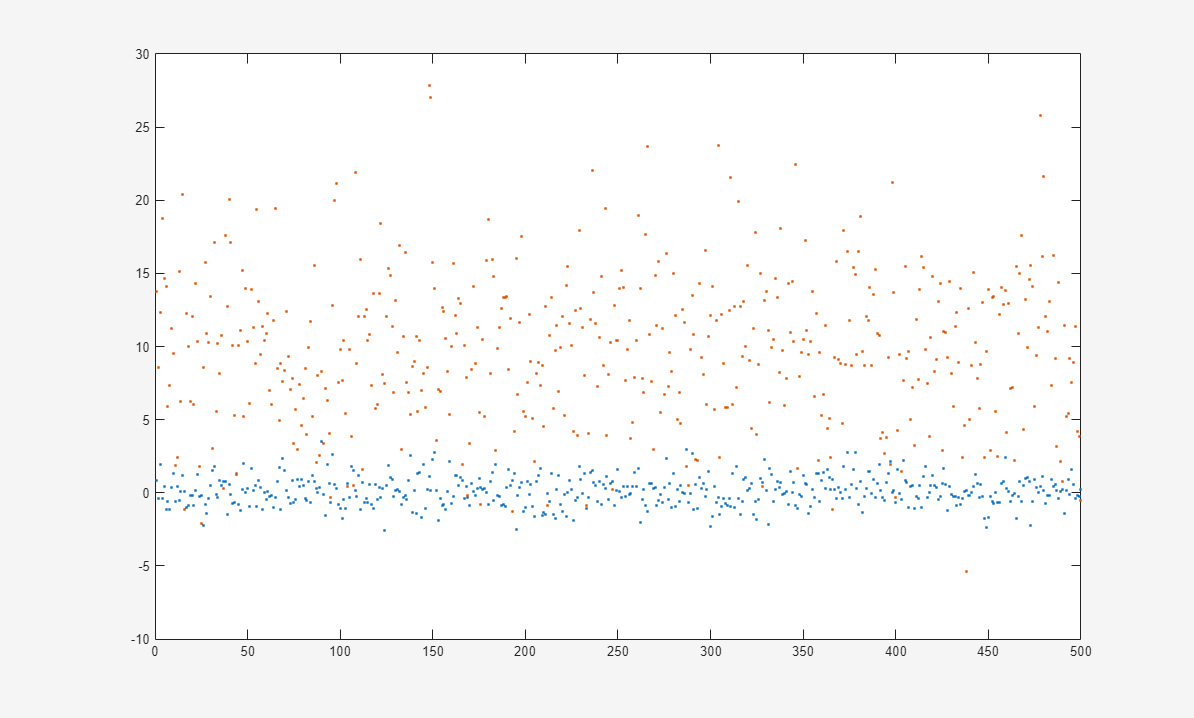

By default, this plot has a set of interactions that includes dragging to pan within the chart area. However, because the plot has a dense collection of points, a more useful set of interactions might include one that allows you to zoom into specific regions of the plot. The regionZoomInteraction object provides this functionality. Replace the default set of interactions for the current axes with an array that includes the regionZoomInteraction object.

ax.Interactions = [zoomInteraction, regionZoomInteraction, rulerPanInteraction];

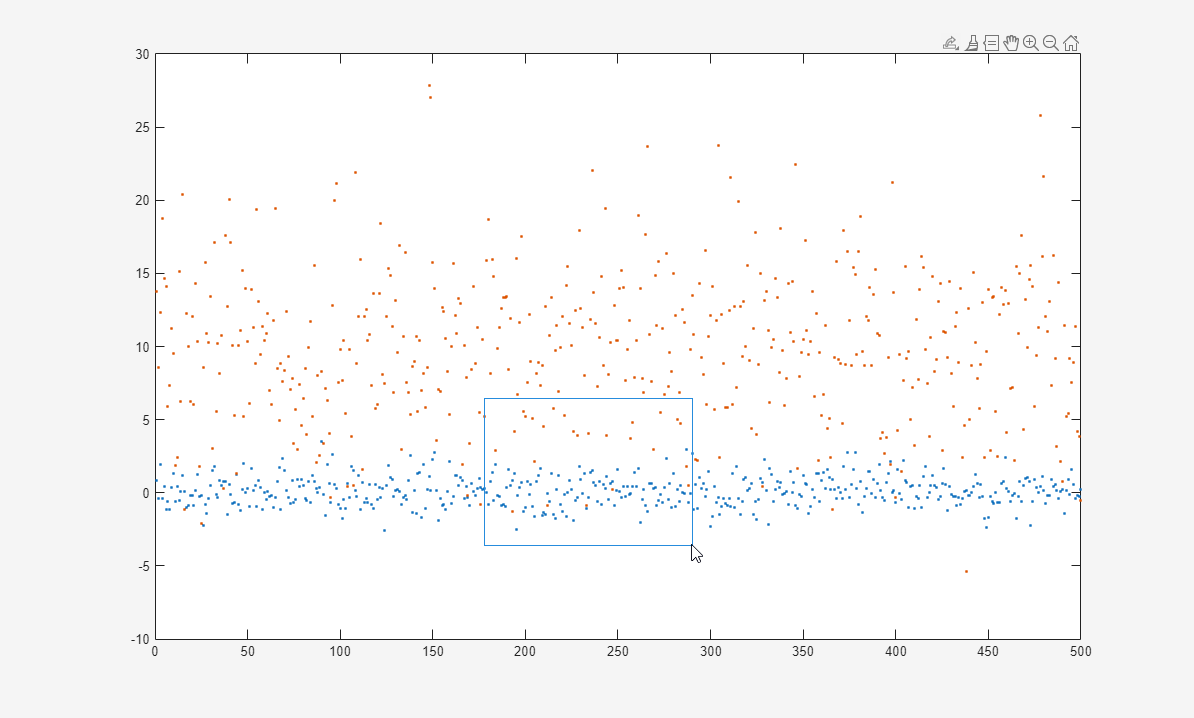

Now, dragging within the plot area defines a rectangular region of interest to zoom into.

Customize Interaction Behavior

You can customize the behavior of certain aspects of axes interactions. Customize axes interactions by changing the property values of the CartesianAxesInteractionOptions object associated with the InteractionOptions property of the axes.

For example, customize axes interactions in a figure. Modify the supported interactions for the axes. Specify the PanSupported property as "off" so the axes do not support the pan interaction.

f = figure;
ax = axes(f);
plot(ax,magic(4))
ax.InteractionOptions.PanSupported = "off";
ax.Toolbar.Expanded = "on";

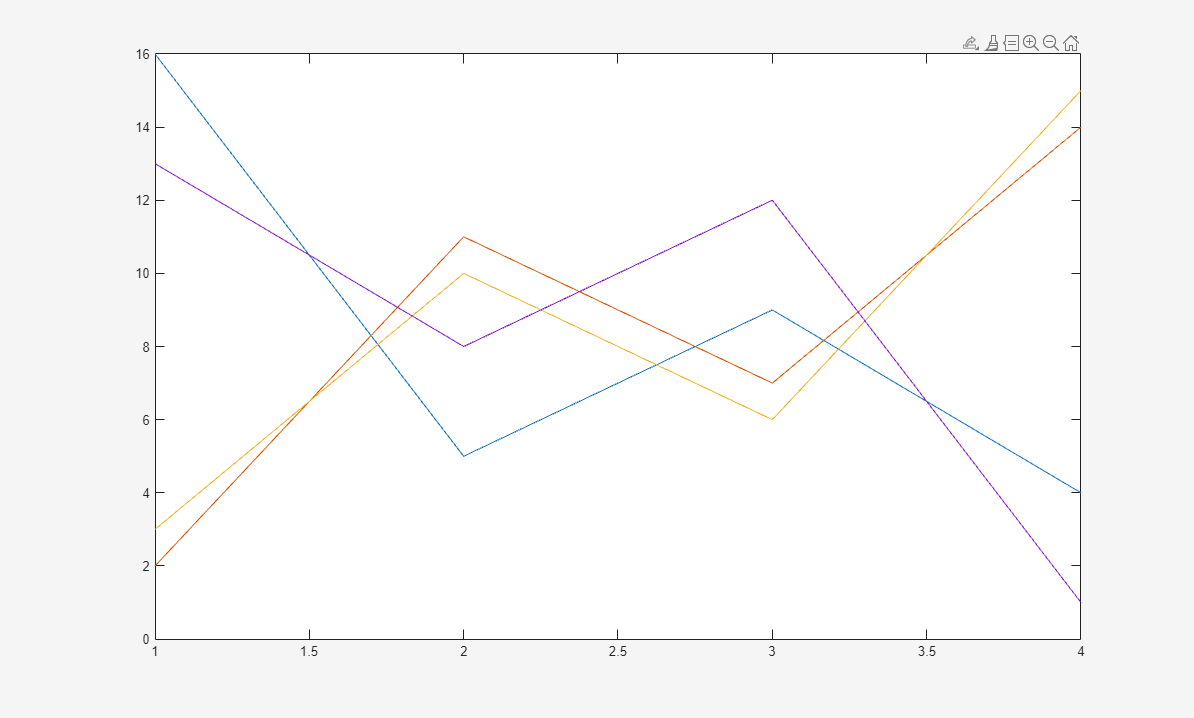

The axes toolbar no longer includes the Pan button, and clicking and dragging the plot does not pan the view of the axes.

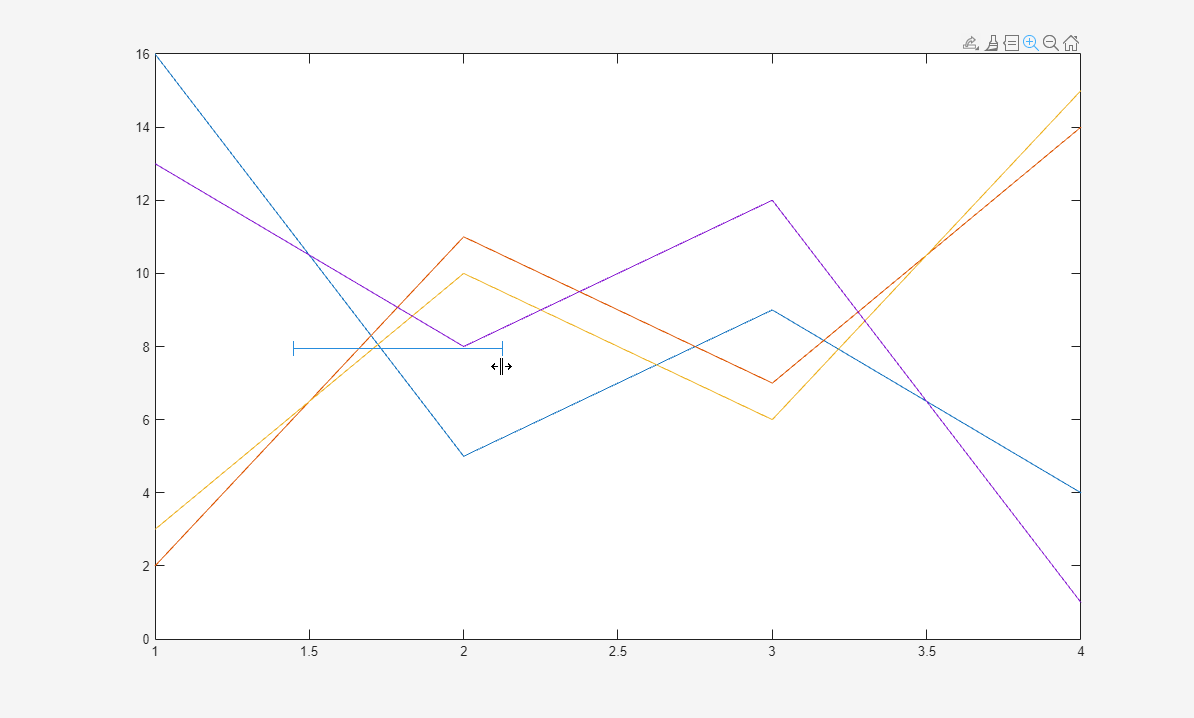

Then, constrain the zoom interaction to only the x-dimension.

ax.InteractionOptions.LimitsDimensions = "x";

Now, all of the zoom interactions associated with the LimitsDimensions property are constrained to the x-dimension. For example, enable zoom mode for the axes.

zoom(ax,"on")

Then, drag, scroll, or click within the plot to zoom. The LimitsDimensions property of CartesianAxesInteractionOptions constrains zooming to the x-dimension.

After zooming into the axes, restore the view of the axes. Before you restore the view, query the default x-axis limits for restoring the view.

restoreX = ax.InteractionOptions.RestoredXLimits

restoreX =

     1     4

Customize the x-axis restoration limits.

ax.InteractionOptions.RestoredXLimits = [2 3];

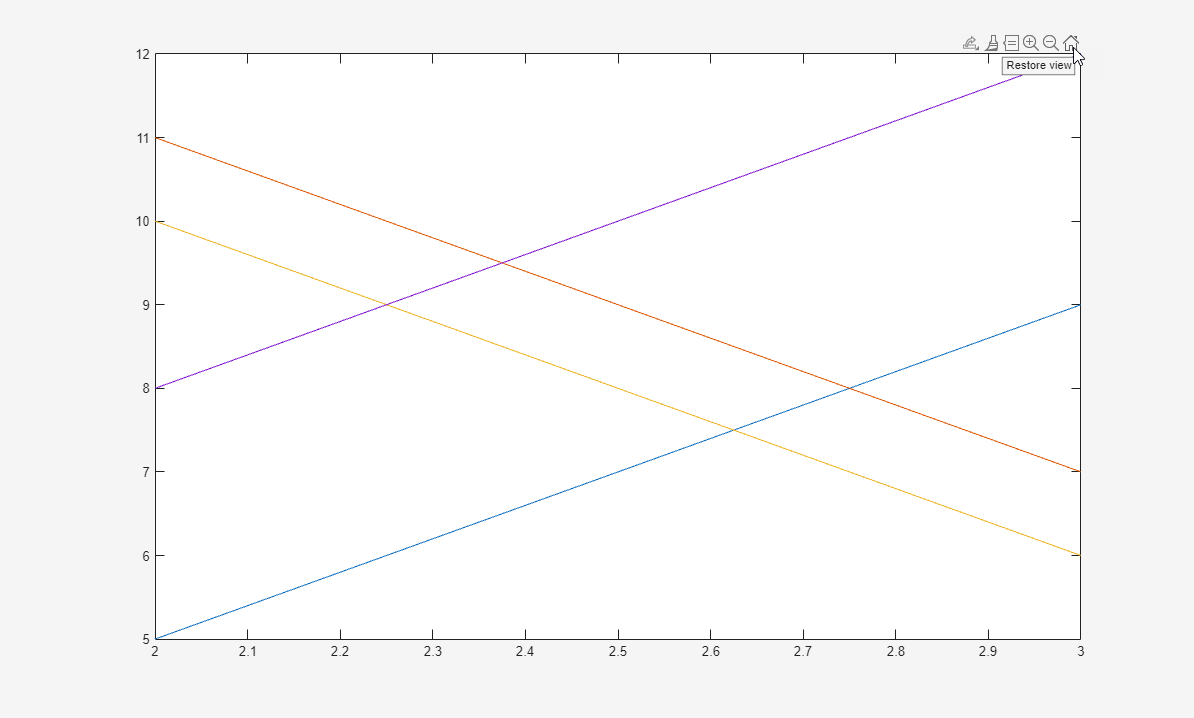

Then, click the Restore view button in the axes toolbar. The limits of the x-axis are [2 3].
