Class Diagram Viewer
Create diagrams to investigate class details and hierarchies
The Class Diagram Viewer enables you to create class diagrams that show implementation details and hierarchies. You can use this tool to explore class structures and share class diagrams with others. These diagrams can include details about:
The internal structure of classes, including properties and methods and their access attributes
The hierarchy of classes, including packages, with inheritance relationships shown graphically
You can create class diagrams using the graphical interface or the command line API

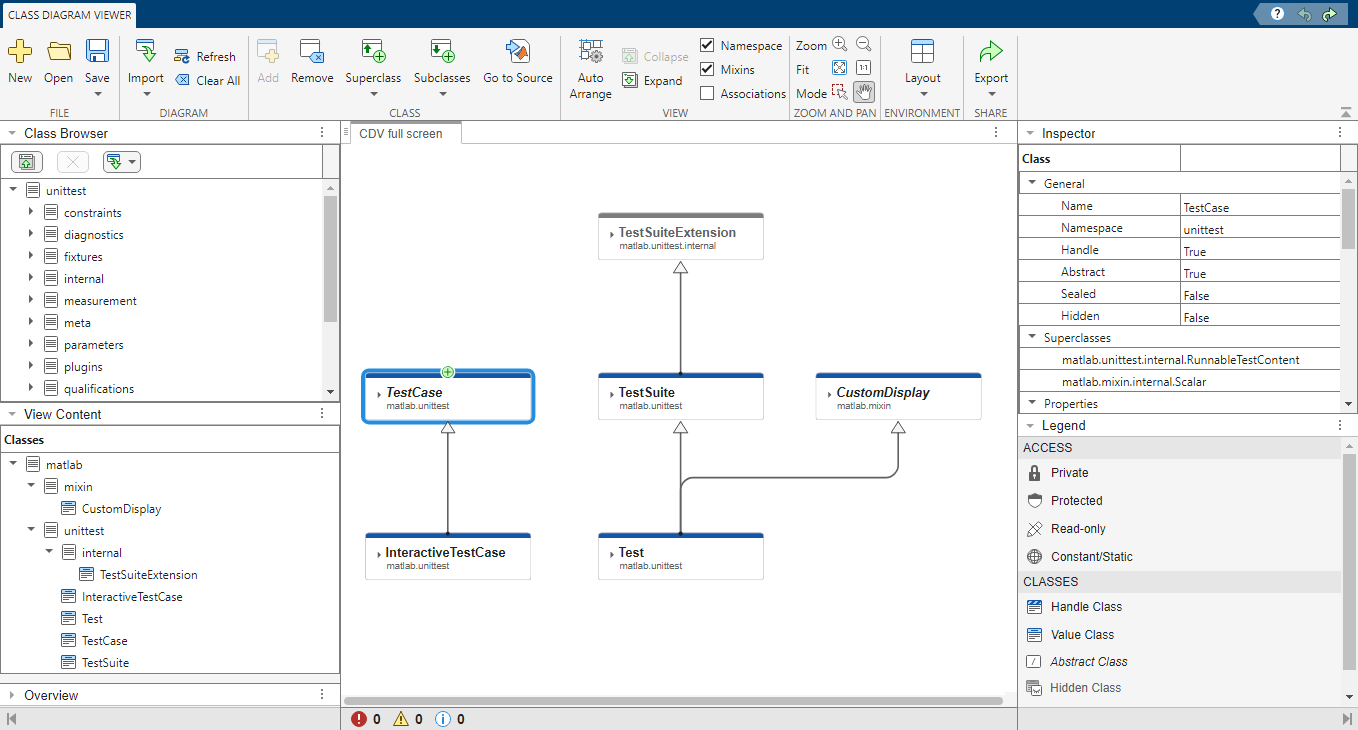

Open the Class Diagram Viewer
MATLAB® command prompt:
On the Project tab, click the tool icon
Create and Save Simple Class Diagram
Open the Class Diagram Viewer. In the Class Browser pane,
expand the add icon and select Import Package.
matlab.unittest as the package name and click
OK. The folder for
unittest appears in the
unittest folder and select the

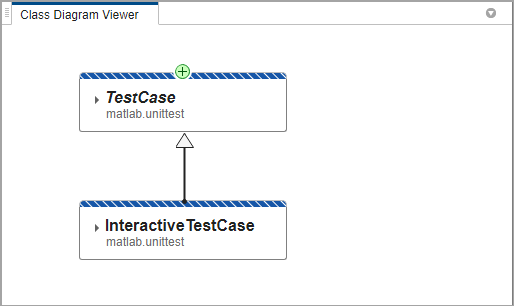

InteractiveTestCase class. To do this, click the
Add button in the toolbar to add a card for the class to the
Class Diagram Viewer canvas. Add the
class using the same method, and click Auto Arrange. Because
TestCase is the superclass of
Diagram Viewer automatically draws an arrow from
TestCase to show this relationship.

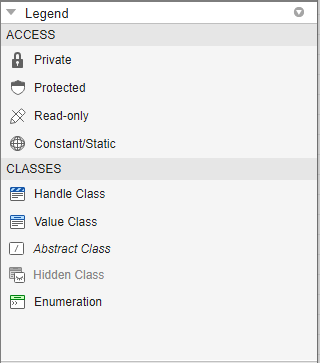

The striped blue borders at the top of the class cards indicate that both of these classes are handle classes. The Legend pane describes what the graphic effects and icons on the canvas represent.

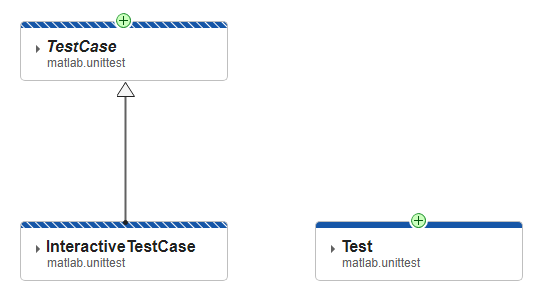

You can also drag and drop items from the Class Browser directly to the canvas. Drag
and drop the
Test class to the viewer. The button indicates that
Test has a

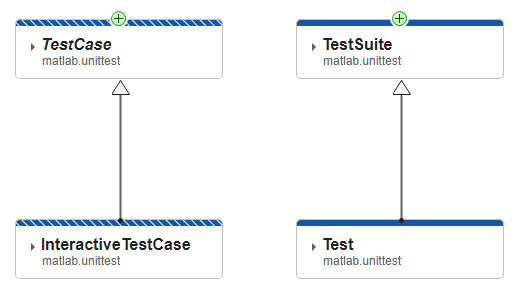

Click the button to add the superclass to the diagram. The arrow pointing to
Test indicates that
TestSuite is a superclass of
In addition to moving the classes in the viewer by dragging and dropping, you can customize the view using the options in the Navigate section of the toolbar, including:
Zoom in and out
Fit the model to current screen size
In the Diagram section, select the Mixins check box. This action does not automatically add mixin classes to the diagram, but it includes them in the display when you perform any action that adds superclasses.

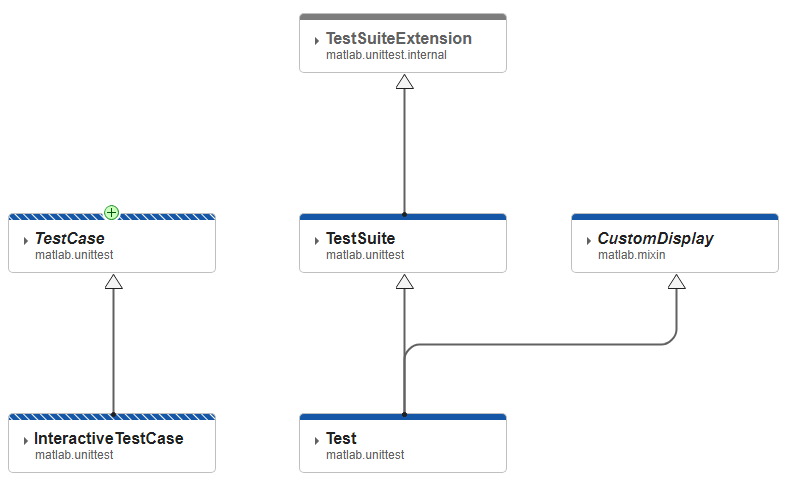

To add the immediate superclass of
Test, right-click the
Test class card and select Superclass. Click
Auto Arrange to clean up the diagram. The
CustomDisplay mixin now appears as a superclass of
The name of
CustomDisplay is italicized, indicating that it is an
In addition to relationships between classes, you can also explore the class

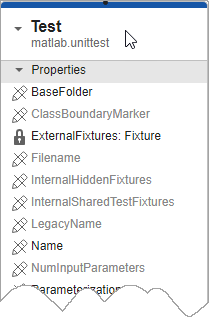

definitions themselves. Expand the
Test class card by clicking the arrow
next to the class name in its card. The class card expands to show the properties and
methods defined by the class. Properties and methods inherited from superclasses do not
appear in the subclass cards.
The icons next to the property and method names also identify the access levels of
the properties and methods. For example, the lock icon shows that
TestCaseProvider is a private property.
Selecting a property or method on the class card also brings up access and other information in the Inspector pane.
To view the source code of one or more classes, select their cards and click Go To Source in the toolbar. The source code files open in the MATLAB editor.
To save or share the diagram you create, use one of two options:
Click Export to save the diagram as a static image.
Select Save > Save as... to create an MLDATX file that can be reopened in a Class Diagram Viewer instance and edited.
matlab.diagram.ClassViewer opens a Class Diagram Viewer instance
with no classes loaded.
the classes specified to both the Class Browser pane and the canvas.
Valid name-value arguments include:
Classes, with class names specified as strings or object names
Folders, with folder names specified as strings
Packages, with package names specified as strings
matlab.diagram.ClassViewer for additional name-value options. Specify arguments
Name is the argument name and
Value is the
Class Diagram Viewers are instances of the
matlab.diagram.ClassViewerclass. Use the class constructors to open more than one viewer at a time.
When the button appears on an arrow between two classes, rather than on a class card itself, there are additional classes in the hierarchy between the two connected classes. Click the button to add all of the viewable classes in that part of the hierarchy.
If you make changes to the class code while using the Class Diagram Viewer, you can automatically update the diagram by clicking Refresh.
