copyobj
Copy graphics objects and their children
Description
creates a copy of the specified graphics object, assigns it to the specified new parent, and
returns the new object. If newobj
= copyobj(obj
,parent
)obj
has children,
copyobj
copies them as well.
copyobj
does not copy properties or child objects that depend on
their original context, including callback properties or any application data associated
with the original object. For more information, see What Is Not Copied.
Examples
Copy Single Object
Copy a surface object to new axes in a different figure to view the plot from two angles simultaneously.

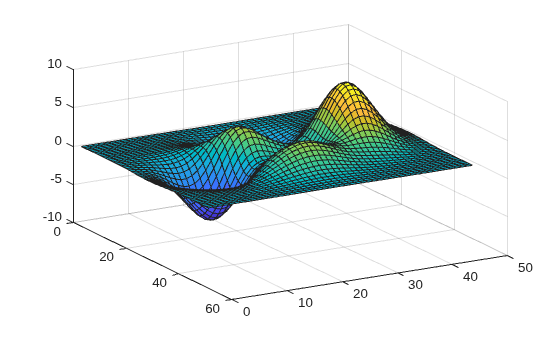

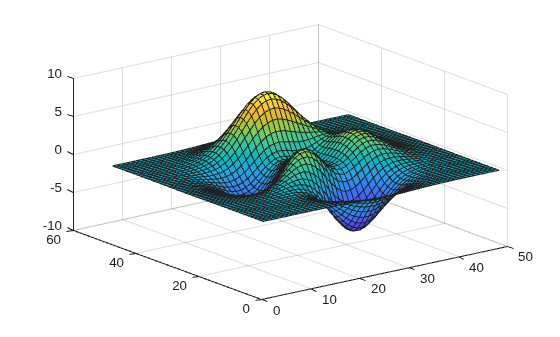

Create a surface object.
obj = surf(peaks);
Create a new figure and axes. Then, create a copy of the surface object and assign it to the new axes. Change the view of the new plot by setting the line of sight of the camera to an azimuth of 60
degrees and an elevation of 30
degrees. Turn the grid on to match the original figure configuration, which is not copied with the surface object.
fig = figure;
ax = axes;
newobj = copyobj(obj,ax);
view(ax,60,30)
grid(ax,"on")
Copy Multiple Objects
Create a set of similar plots, and label the same data point on each plot by copying a text object and a line marker object from the first plot to each of the other plots.

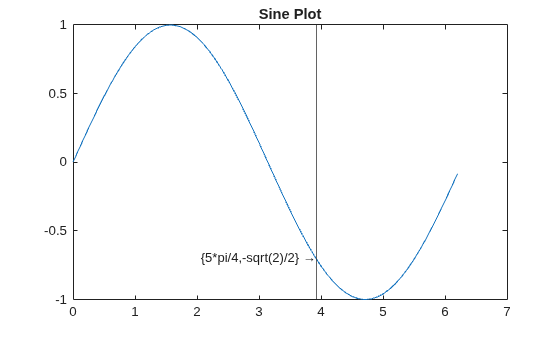

Create the first plot, and label it using a text object and a line marker object.
x = 0:.1:2*pi; y = sin(x); plot(x,y) title("Sine Plot") t = text(5*pi/4, -sqrt(2)/2, "\{5*pi/4,-sqrt(2)/2\}\rightarrow", ... "HorizontalAlignment","right"); lm = xline(5*pi/4);

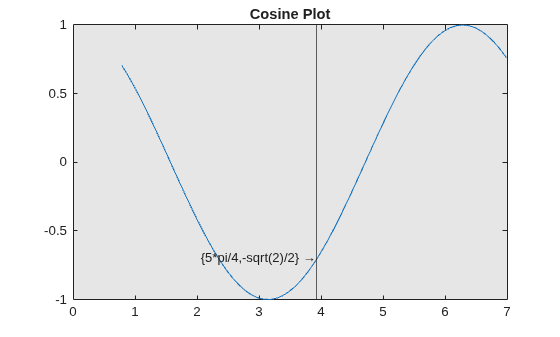

Create a second plot without labels, and copy the text and line marker objects (t
and lm
) to the plot by assigning them to the new axes. Return the text and line marker object copies.
figure x = pi/4:.1:9*pi/4; plot(x,cos(x)) title("Cosine Plot") ax2 = gca; ax2.Color = [0.902 0.902 0.902]; % light gray lbl2 = copyobj([t,lm],ax2);
Combine Multiple Figures into One Figure
Copy the objects from several figures into one figure that uses a tiled chart layout.

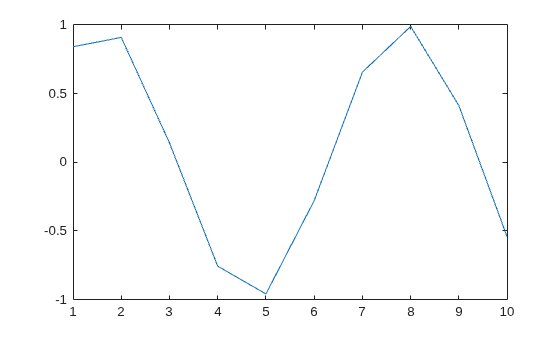

Create the first figure containing a sine plot.
f1 = figure; ax1 = axes(f1); plot(ax1,sin(1:10))

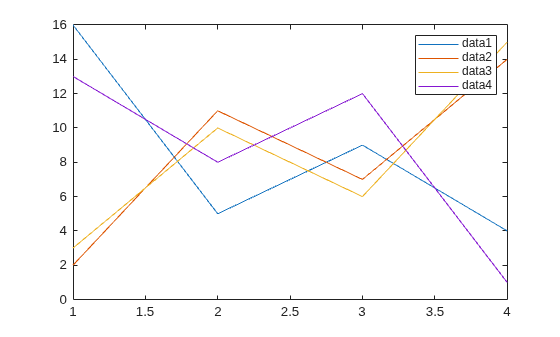

Create the second figure containing four plotted lines and a legend.
f2 = figure; ax2 = axes(f2); plot(ax2,magic(4)); lgd = legend(ax2);

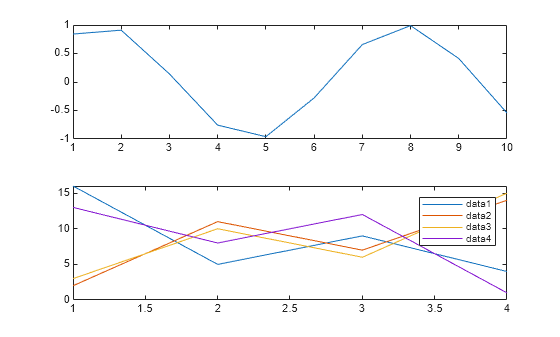

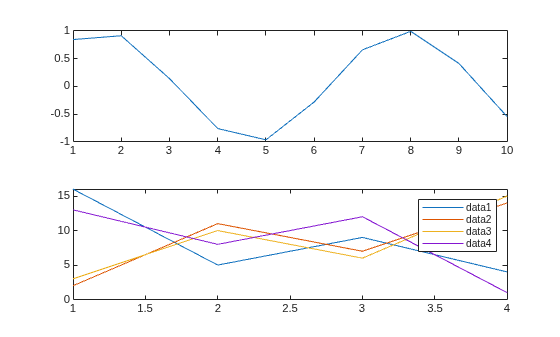

Create a third figure with a tiled chart layout, and copy the plots and legend from the first and second figures into the tiles in the third figure.
f3 = figure; t = tiledlayout(f3,2,1); ax1c = copyobj(ax1,t); ax2c = copyobj([ax2,lgd],t); ax1c(1).Layout.Tile = 1; ax2c(1).Layout.Tile = 2;
Split One Figure into Multiple Figures
Copy the objects from different tiles in a tiled chart layout into multiple figures.

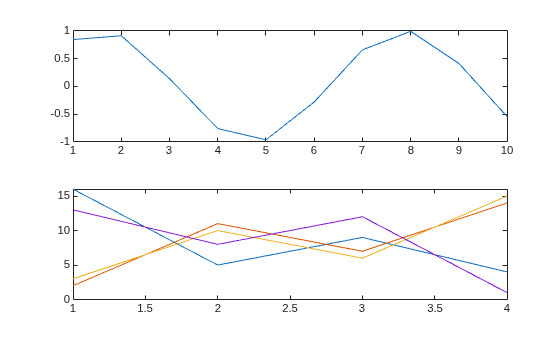

Create a figure containing a 2-by-1 tiled chart layout with two plots. The first tile contains a sine plot, and the second tile contains four plotted lines.
f = figure; t = tiledlayout(f,2,1); ax1 = nexttile(t); plot(ax1,sin(1:10)) ax2 = nexttile(t); plot(ax2,magic(4))

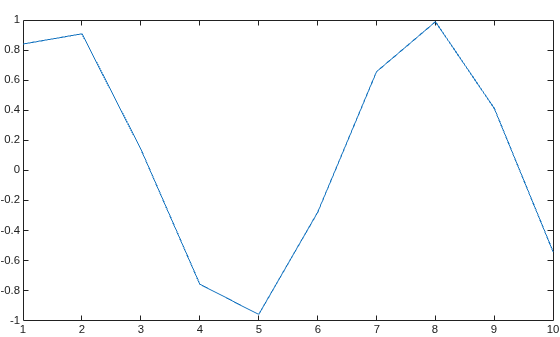

Create a new figure, and copy the axes from the first tile into the new figure. To allow the axes to fill the entire figure, reset the position of the axes back to the default value.
f1 = figure; ax1c = copyobj(ax1,f1); set(ax1c,"OuterPosition","default");

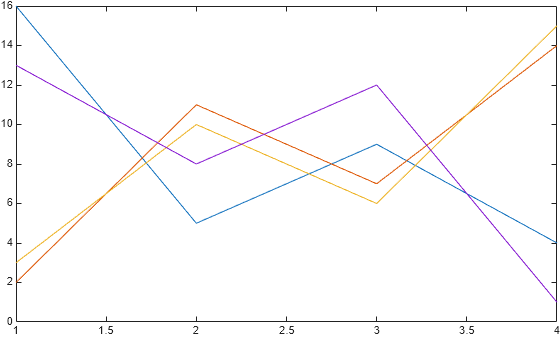

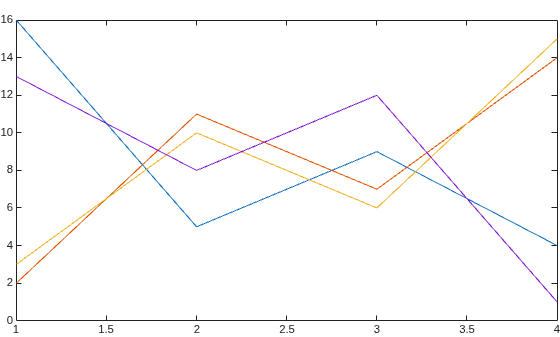

Create another new figure, and copy the axes from the second tile into the new figure. To allow the axes to fill the entire figure, reset the position of the axes back to the default value.
f2 = figure; ax2c = copyobj(ax2,f2); set(ax2c,"OuterPosition","default")
Copy User Interface Controls
Copy a panel containing multiple user interface controls from one figure to another.

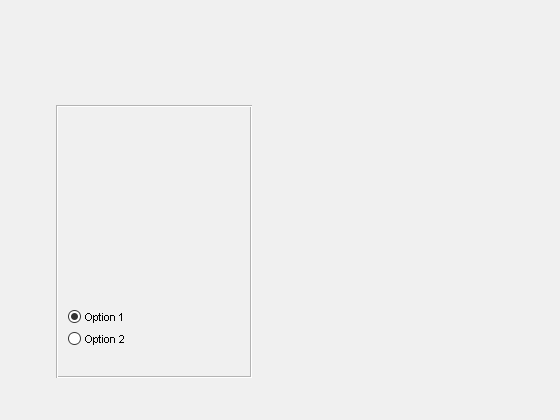

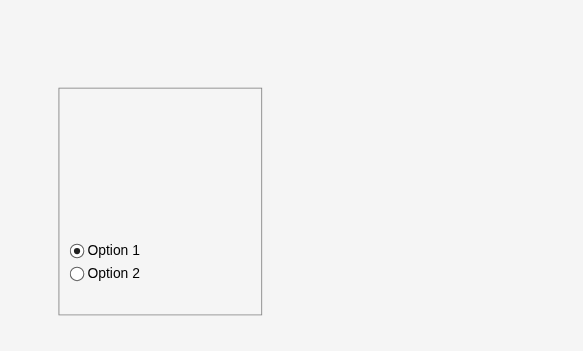

Create a figure and a panel positioned within it. Then, create two radio buttons within the panel and set their values.
f1 = figure; p1 = uipanel(f1,"Position",[0.1 0.1 0.35 0.65]); rb1 = uicontrol(p1,"Style","radiobutton","String","Option 1", ... "Position",[10 50 100 22]); rb2 = uicontrol(p1,"Style","radiobutton","String","Option 2", ... "Position",[10 28 100 22]); p1.Children(1).Value = 0; p1.Children(2).Value = 1;

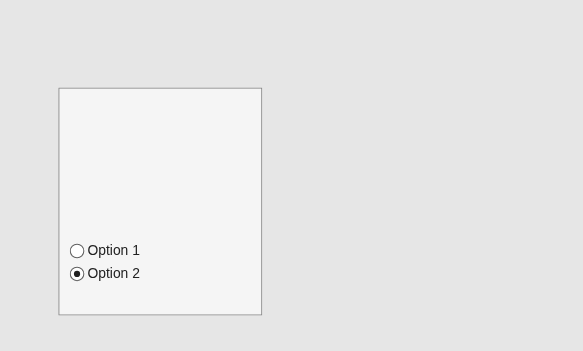

Create a new figure with a darker background, and copy the panel from the first figure into the second figure. Then, change the values of the radio buttons in the second figure.
f2 = figure; f2.Color = [0.902 0.902 0.902]; p2 = copyobj(p1,f2); p2.Children(1).Value = 1; p2.Children(2).Value = 0;
Input Arguments
obj
— Graphics object to copy
single object | vector of objects
Graphics object to copy, specified as a single object or a vector of objects.
Note
You cannot copy the same object more than once to the same parent in a single call
to copyobj
.
parent
— Parent of copied object
single object | vector of objects
Parent of copied object, specified as a single object or a vector of objects. The parent must be appropriate for the copied object. For example, you can copy a line into axes, but not into a figure or panel.
Output Arguments
newobj
— Copy of graphics object
single object | vector of objects
Copy of graphics object, returned as a single object or a vector of objects.
If
obj
is a single object andparent
is a single object,newobj
is a single object.If
obj
is a single object andparent
is a vector of objects,newobj
is a vector of objects. Eachnewobj(i)
is a copy ofobj
assigned to the parentparent(i)
. The length ofnewobj
equals the length ofparent
.If
obj
is a vector of objects andparent
is a single object,newobj
is a vector of objects. Eachnewobj(i)
is a copy ofobj(i)
assigned to the parentparent
. The length ofnewobj
equals the length ofobj
.If both
obj
andparent
are vectors of objects, they must be the same length, andnewobj
is a vector of objects of the same length. Eachnewobj(i)
is a copy ofobj(i)
assigned to the parentparent(i)
.
The copied object is different from the original object. Therefore,
==
returns false
when comparing the two objects.
For more information, see What Is Not Copied.
More About
What Is Not Copied
When creating a copy of a graphics object, copyobj
does not copy
properties or child objects that depend on their original context. If an object has default
context menus (like as legends and colorbars have), then the copied object gets new context
menus. Copies of figures get new toolbars and menus.
copyobj
does not copy:
Callback properties (except when using the
"legacy"
option)Application data associated with the object (except when using the
"legacy"
option)Context menu of legends, colorbars, or other objects that define default context menus
Default figure toolbar and menus
Axes objects used with the
yyaxis
functionThe
Interactions
property of an axes objectThe
DataTipTemplate
property for objects that have this property, such asLine
,Scatter
, andSurface
objects
Tips
When copying a legend or a colorbar, you must also copy the associated axes.
When building a user interface, do not call
copyobj
ortextwrap
(which callscopyobj
) inside a creation function. Copying a user interface control object calls the creation function repeatedly, exceeding the recursion limit and therefore causing an error.
Version History
Introduced before R2006a
