Find all graphics objects


object_handles = findall(handle_list)
object_handles = findall(handle_list,'property','value',...)


object_handles = findall(handle_list) returns the handles, including hidden handles, of all objects in the hierarchy under the objects identified in handle_list.

object_handles = findall(handle_list,'property','value',...) returns the handles of all objects in the hierarchy under the objects identified in handle_list that have the specified properties set to the specified values.


collapse all

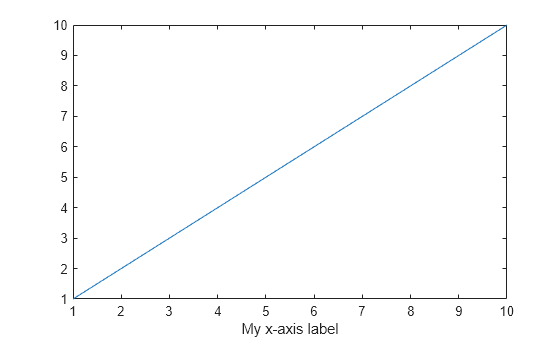

Use findall to find the text object for the x-axis label. Unlike findobj, the findall function finds objects even if the HandleVisibility property is set to 'off'.

txt = xlabel('My x-axis label');

ans =
a = findall(gcf,'Type','text')
a =
  3x1 Text array:

  Text    (My x-axis label)

d = findobj(gcf,'Type','text')
d =
  0x0 empty GraphicsPlaceholder array.


findall is similar to findobj, except that it finds objects even if their HandleVisibility is set to off.

See Also


Introduced before R2006a
