setup

Class: matlab.graphics.chartcontainer.ChartContainer
Package: matlab.graphics.chartcontainer

Set up instance of chart container subclass

Syntax

setup(obj)

Description

setup(obj) sets the initial state of the chart. It executes once when the chart object is created. Define this method to execute initialization code for each new instance of your class. For example, you can use this method to create the underlying graphics objects and set initial property values on those objects.

Input Arguments

expand all

Object of the class that inherits from the matlab.graphics.chartcontainer.ChartContainer base class.

Attributes

Abstracttrue
Protectedtrue

To learn about attributes of methods, see Method Attributes.

Examples

expand all

Define a SmoothPlot class that plots a set of data using a dotted blue line with a smoothed version of the line. To define the class, create a file named SmoothPlot.m that contains the following class definition with these features:

  • Four public properties: XData, YData, SmoothColor, and SmoothWidth.

  • Two private properties: OriginalLine and SmoothLine.

  • A setup method that performs these tasks:

    • Gets the axes for the chart by calling the getAxes method.

    • Creates the Line object OriginalLine with the dotted line style. The color is not specified for this line, so MATLAB® uses the default color, which is blue.

    • Creates the Line object SmoothLine with a solid line style, and sets the color and width of the line according to the class properties SmoothColor and SmoothWidth.

    • Sets the axes hold state to 'off'.

  • An update method that updates the plot when the user changes the value of a property.

  • A createSmoothData method that calculates a smoothed version of the YData values.

classdef SmoothPlot < matlab.graphics.chartcontainer.ChartContainer
    properties
        XData (1,:) double = NaN
        YData (1,:) double = NaN
        SmoothColor (1,3) double {mustBeGreaterThanOrEqual(SmoothColor,0),...
            mustBeLessThanOrEqual(SmoothColor,1)} = [0.9290 0.6940 0.1250]
        SmoothWidth (1,1) double = 2
    end
    properties(Access = private,Transient,NonCopyable)
        OriginalLine (1,1) matlab.graphics.chart.primitive.Line
        SmoothLine (1,1) matlab.graphics.chart.primitive.Line
    end

    methods(Access = protected)
        function setup(obj)
            % Get the axes
            ax = getAxes(obj);

            % Create the original and smooth lines
            obj.OriginalLine = plot(ax,obj.XData,obj.YData,'LineStyle',':');
            hold(ax,'on')
            obj.SmoothLine = plot(ax,NaN,NaN,'LineStyle','-',...
                'Color',obj.SmoothColor,'LineWidth',obj.SmoothWidth);
            hold(ax,'off')
        end
        function update(obj)
            % Update line data
            obj.OriginalLine.XData = obj.XData;
            obj.OriginalLine.YData = obj.YData;
            obj.SmoothLine.XData = obj.XData;
            obj.SmoothLine.YData = createSmoothData(obj);

            % Update line color and width
            obj.SmoothLine.Color = obj.SmoothColor;
            obj.SmoothLine.LineWidth = obj.SmoothWidth;
        end
        function sm = createSmoothData(obj)
            % Calculate smoothed data
            v = ones(1,10)*0.1;
            sm = conv(obj.YData,v,'same');
        end
    end
end

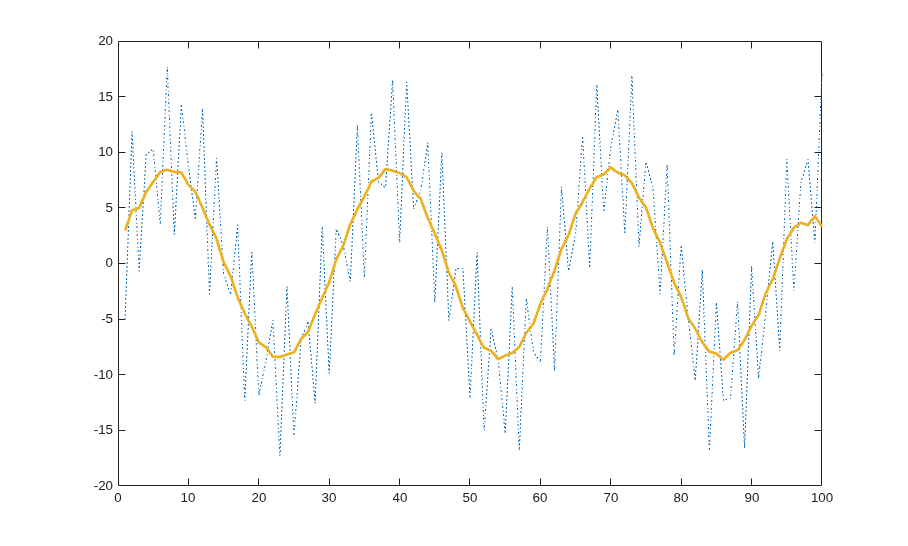

Next, create vectors x and y. Plot x and y by calling the SmoothPlot constructor method, which is provided by the ChartContainer class. Specify the 'XData' and 'YData' name-value pair arguments and return the object as c.

x = 1:1:100;
y = 10*sin(x./5) + 8*sin(10.*x+0.5);
c = SmoothPlot('XData',x,'YData',y);

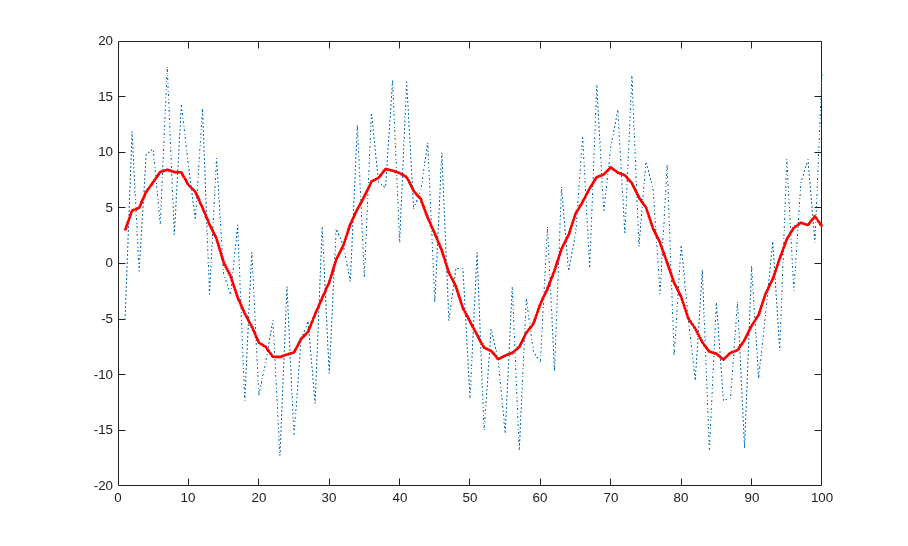

Use c to change the color of the smooth line to red.

c.SmoothColor = [1 0 0];

Introduced in R2019b
