Chart Development Overview

Charting functions such as plot, scatter, and bar enable you to quickly visualize your data with basic control over aspects such as color and line style. To create custom visualizations, you can combine multiple graphics objects, set properties on those objects, or call additional functions. In R2019a and earlier releases, a common way to store your customization code and share it with others is to write a script or a function.

Starting in R2019b, you can create a class implementation for your charts by defining a subclass of the ChartContainer base class. Creating a class enables you to:

  • Provide a convenient interface for your users — When users want to customize an aspect of your chart, they can set a property rather than having to modify and rerun your graphics code. Users can modify properties at the command line or inspect them in the Property Inspector.

  • Encapsulate algorithms and primitive graphics objects — You implement methods that perform calculations and manage the underlying graphics objects. Organizing your code in this way allows you to hide implementation details from your users.

The ChartContainer base class supports charts that have a single Cartesian axes. When you define a chart that derives from this base class, instances of your chart are members of the graphics object hierarchy. As a result, your charts are compatible with many aspects of the graphics system. For example, the gca and findobj functions can return instances of your chart.

Structure of a Chart Class

The first line of a chart class specifies the matlab.graphics.chartcontainer.ChartContainer class as the superclass. For example, the first line of a class called ConfidenceChart looks like this:

classdef ConfidenceChart < matlab.graphics.chartcontainer.ChartContainer

In addition to specifying the superclass, include the following components in your class definition.

ComponentDescription

Public property block
(recommended)

This block defines all the properties that you want your users to have access to. Together, these properties make up the user interface of your chart.

Private property block
(recommended)

This block stores the underlying graphics objects and other implementation details that you do not want your users to access.

In this block, set these attribute values:

  • Access = private

  • Transient

  • NonCopyable

setup method
(required)

This method sets the initial state of the chart. It executes once when MATLAB® constructs the object after setting the user-specified property values.

Define this method in a protected block so that only your class can execute it.

update method
(required)

This method updates the underlying objects in your chart. It executes under the following conditions:

  • During the next drawnow execution, after the user changes one or more property values

  • When an aspect of the user's graphics environment changes (such as the figure size)

Define this method in the same protected block as the setup method.

Implicit Constructor Method

You do not have to write a constructor method for your class because a constructor is inherited from the ChartContainer base class. The constructor accepts optional input arguments: a parent container and any number of name-value pair arguments for setting properties on the chart. For example, if you define a class called ConfidenceChart that has the public properties XData and YData, you can create an instance of your class using either of these commands:

c = ConfidenceChart(gcf,'XData',[1 2 3],'YData',[4 5 6])
c = ConfidenceChart('XData',[1 2 3],'YData',[4 5 6])

If you want to provide an interface that accepts input arguments in the same way as a typical function does, you can define a custom constructor method. See Write Constructors for Chart Classes for more information.

Public and Private Property Blocks

Divide your class properties between at least two blocks:

  • A public block for storing the components of the user-facing interface

  • A private block for storing the implementation details that you want to hide

The properties that go in the public block store the input values provided by the user. For example, a chart that displays a line might store the x- and y-coordinate vectors in two public properties. Since the property name-value pair arguments are optional inputs to the implicit constructor method, the recommended approach is to initialize the public properties to default values. If you define public properties that store coordinate values, initializing them to NaN values or empty arrays constructs an empty chart if the user calls the constructor without any inputs.

The properties that go in the private block store the underlying graphics objects that make up your chart, in addition to any calculated values you want to store. Eventually, your class will use the data in the public properties to configure the underlying objects. By including the Transient and NonCopyable attributes for the private block, you avoid storing redundant information if the user copies or saves an instance of the chart.

For example, here are the property blocks for a chart that displays a Line object and a Patch object. The public property block stores values that the user can control: the x- and y-coordinates of the line, a confidence margin value, a marker symbol, and a color value. The private property block stores the Line and Patch objects.

properties
    XData = NaN
    YData = NaN
    ConfidenceMargin = 0.15
    MarkerSymbol = 'o'
    Color = [1 0 0]
end

properties(Access = private,Transient,NonCopyable)
    LineObject
    PatchObject
end

Setup Method

The setup method executes once when MATLAB constructs the chart object. Use this method to:

  • Call plotting functions to create the primitive graphics objects you want to use in the chart.

  • Store the primitive objects returned by the plotting functions as private properties on the chart object.

  • Configure the primitive graphics objects.

  • Configure the axes.

Most plotting functions have an optional input argument for specifying the target axes. When you call plotting functions from within a class method, you must specify the target axes. Use the getAxes method to get the axes object for your chart. Then you can pass the axes object to a plotting function or use it to set axes properties such as the axis labels.

If you want to display multiple primitive objects in the axes, call the hold function between plotting commands. Specify the axes input argument when you call the hold function. Set the hold state back to 'off' after your last plotting command.

For example, consider a chart that has these properties:

  • Two public properties called XData and YData for storing the x- and y-coordinates of a line

  • Two private properties called LineObject and PatchObject

The setup method gets the axes object by calling the getAxes method. Then setup calls the plot function and stores the output in the LineObject property. Next, setup sets the hold state of the axes to 'on', and then calls the patch function to return the value of the PatchObject property. The last line of code sets the axes hold state back to 'off'.

function setup(obj)
    % Get the axes
    ax = getAxes(obj);

    % Create Patch and Line objects
    obj.PatchObject = patch(ax,NaN,NaN,'r','FaceAlpha',0.2,...
        'EdgeColor','none');
    hold(ax,'on')
    obj.LineObject = plot(ax,obj.XData,obj.YData);

    % Turn hold state off
    hold(ax,'off')
end

Update Method

When the user changes one or more property values on the chart object, MATLAB marks the chart object for updating. The update method executes the next time drawnow executes. The drawnow function automatically executes periodically, based on the state of the graphics environment in the user's MATLAB session. Thus, there might be a delay between changing property values and seeing the results of those changes.

Use the update method to reconfigure the underlying graphics objects in your chart based on the new values of the public properties. Typically, this method does not distinguish which of the public properties changed. It reconfigures all aspects of the underlying graphics objects that depend on the public properties.

For example, consider a chart that has these properties:

  • Two public properties called XData and Color

  • Two private properties called LineObject and PatchObject

The update method updates the XData and Color properties of the Line and Patch objects.

function update(obj)

    % Update XData of line object
    obj.LineObject.XData = obj.XData;

    % Update patch XData
    x = obj.XData;
    obj.PatchObject.XData = [x x(end:-1:1)];

    % Update line object colors
    obj.LineObject.Color = obj.Color;
    obj.PatchObject.FaceColor = obj.Color;

end

Example: Confidence Bounds Chart

This example shows how to create a chart for plotting a line with confidence bounds. Create a class definition file named ConfidenceChart.m in a folder that is on the MATLAB path. Define the class by following these steps.

StepImplementation

Derive from the ChartContainer base class.

classdef ConfidenceChart < matlab.graphics.chartcontainer.ChartContainer

Define public properties.

    properties
        XData = NaN
        YData = NaN
        ConfidenceMargin = 0.15
        MarkerSymbol = 'o'
        Color = [1 0 0]
    end

Define private properties.

    properties(Access = private,Transient,NonCopyable)
        LineObject
        PatchObject
    end

Implement the setup method. In this case, call the plot and patch functions to create the Patch and Line objects respectively. Store those objects in the corresponding private properties.

Turn the hold state of the axes back to 'off' before exiting the method.

    methods(Access = protected)
        function setup(obj)
            % get the axes
            ax = getAxes(obj);

            % Create Patch and Line objects
            obj.PatchObject = patch(ax,NaN,NaN,'r','FaceAlpha',0.2,...
                'EdgeColor','none');
            hold(ax,'on')
            obj.LineObject = plot(ax,obj.XData,obj.YData);

            % Turn hold state off
            hold(ax,'off')
        end

Implement the update method. In this case, update the x- and y-coordinates, color, and marker symbol of the underlying objects.

        function update(obj)
            % Update XData and YData of Line
            obj.LineObject.XData = obj.XData;
            obj.LineObject.YData = obj.YData;

            % Update patch XData and YData
            x = obj.XData;
            obj.PatchObject.XData = [x x(end:-1:1)];
            y = obj.YData;
            c = obj.ConfidenceMargin;
            obj.PatchObject.YData = [y+c y(end:-1:1)-c];

            % Update colors
            obj.LineObject.Color = obj.Color;
            obj.PatchObject.FaceColor = obj.Color;

            % Update markers
            obj.LineObject.Marker = obj.MarkerSymbol;
        end
    end
end

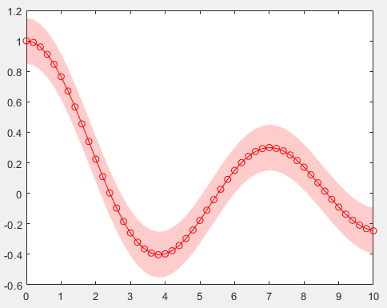

Next, create an instance of the chart by calling the implicit constructor method with a few of the public properties:

x = 0:0.2:10;
y = besselj(0,x);
c = ConfidenceChart('XData',x,'YData',y,'ConfidenceMargin',0.15);

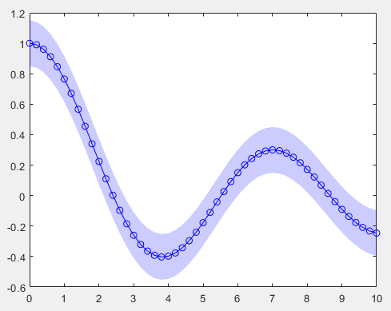

Change the color.

c.Color = [0 0 1];

Support Common Graphics Features

By default, instances of your charts support much of the functionality that is common to all MATLAB charts. For example, the gca and findobj functions can return instances of your chart. You can also pass instances of your chart to the set and get functions, and you can configure the properties of the chart in the Property Inspector.

The features described in this table are supported only if you enable them for your chart.

FeatureDescriptionMore Information
Legend

Enable the legend function and the legend tool in the figure toolbar.

matlab.graphics.chartcontainer.mixin.Legend
Colorbar

Enable the colorbar function and the colorbar tool in the figure toolbar.

matlab.graphics.chartcontainer.mixin.Colorbar
Convenience functions

Enable functions that set properties on the axes, such as title, xlim, and ylim functions.

Enabling Convenience Functions for Setting Axes Properties
Saving and loading

Store changes after users interact with the chart, so that they can save the chart and restore its state when they load it back into MATLAB.

Saving and Loading Instances of Chart Classes
