Enabling Convenience Functions for Setting Axes Properties

When you develop a chart as a subclass of the ChartContainer class, consider enabling some of the MATLAB® convenience functions for setting properties on the axes. For example, you can design your class to support the title function. By enabling convenience functions, you provide a user experience that is consistent with the MATLAB plotting functions.

Support for Different Types of Properties

The way you enable a convenience function depends on whether the function controls a noncomputed property or a computed property. This table lists the convenience functions you can support.

Convenience FunctionAssociated Axes PropertyType of Property

title

Title

Noncomputed

xlabel, ylabel, zlabel

XLabel, YLabel, and ZLabel, respectively

Noncomputed

xlim, ylim, zlim

XLim, YLim, and ZLim, respectively

Computed

xticks, yticks, zticks

XTick, YTick, and ZTick, respectively

Computed

xticklabels, yticklabels, zticklabels

XTickLabel, YTickLabel, and ZTickLabel, respectively

Computed

view

View

Computed

Enable Functions for Noncomputed Properties

Noncomputed properties are fixed values. They do not change until a user or your code changes them explicitly.

To enable a convenience function for a noncomputed property, define a public property in your class that stores the value of axes property you want to control. Then define a public method that has the same name and supports the same calling syntaxes as the convenience function you want to support. Add a line of code to the method that sets the value of the property. For example, consider a class that has a public property called TitleText for storing the title. The following code shows the title method for the class.

function title(obj,txt)
       obj.TitleText = txt;
end

Next, add a line of code to the update method that calls the MATLAB convenience function to set the corresponding axes property.

title(getAxes(obj),obj.TitleText);

After you perform the preceding steps and save your class file, you can create an instance of your chart and call the title function to display a title. Doing so triggers this calling sequence:

  1. The title method on the class sets the TitleText property, which marks the chart for updating.

  2. The next time drawnow executes, the update method executes and calls the title function on the axes.

  3. The title function updates the Title property on the axes.

Enable Functions for Computed Properties

Computed properties are controlled by the axes. The axes recomputes their values depending on the content of the axes and the underlying data.

To enable a convenience function for a computed property, define a method that has the same name and calling syntax as the convenience function you want to enable. Inside that method, call the convenience function and specify the axes as the first argument. For example, to enable the xlim function, define a method called xlim in your class. Since the xlim function accepts a variable number of input arguments, you must specify varargin as the second input argument. The xlim function also supports a variable number of output arguments, so you must specify [varargout{1:nargout}] to support those arguments.

function varargout = xlim(obj,varargin)
    ax = getAxes(obj);
    [varargout{1:nargout}] = xlim(ax,varargin{:});
end

To provide access to the corresponding property values on your chart, define two dependent properties on your class. The first property provides access to the value that the convenience function controls. The other property provides access to the mode property, which indicates how the first property is controlled. The mode property can have a value of 'auto' or 'manual'. Define these properties as dependent so that the chart does not store the values. The axes controls and stores these values. For example, to provide access to the XLim and XLimMode properties on the axes, define a pair of dependent properties called XLimits and XLimitsMode.

properties (Dependent)
    XLimits (1,2) double
    XLimitsMode {mustBeMember(XLimitsMode,{'auto','manual'})}
end

Next, define the set and get methods for each dependent property. Within each method, set the corresponding axes property. The following code shows the set methods and get methods for the XLimits and XLimitsMode properties.

function set.XLimits(obj,xlm)
    ax = getAxes(obj);
    ax.XLim = xlm;
end
function xlm = get.XLimits(obj)
    ax = getAxes(obj);
    xlm = ax.XLim;
end
function set.XLimitsMode(obj,xlmmode)
    ax = getAxes(obj);
    ax.XLimMode = xlmmode;
end
function xlm = get.XLimitsMode(obj)
    ax = getAxes(obj);
    xlm = ax.XLimMode;
end

After you perform the preceding steps and save your class file, you can create an instance of your chart and call the xlim function to change the x-axis limits in the chart. The xlim method executes, which in turn calls the xlim function to update the XLim property on the axes.

Note

By default, MATLAB does not store any changes when the user calls the xlim and ylim functions. To provide support for preserving these changes when the user saves and loads your chart, see Saving and Loading Instances of Chart Classes.

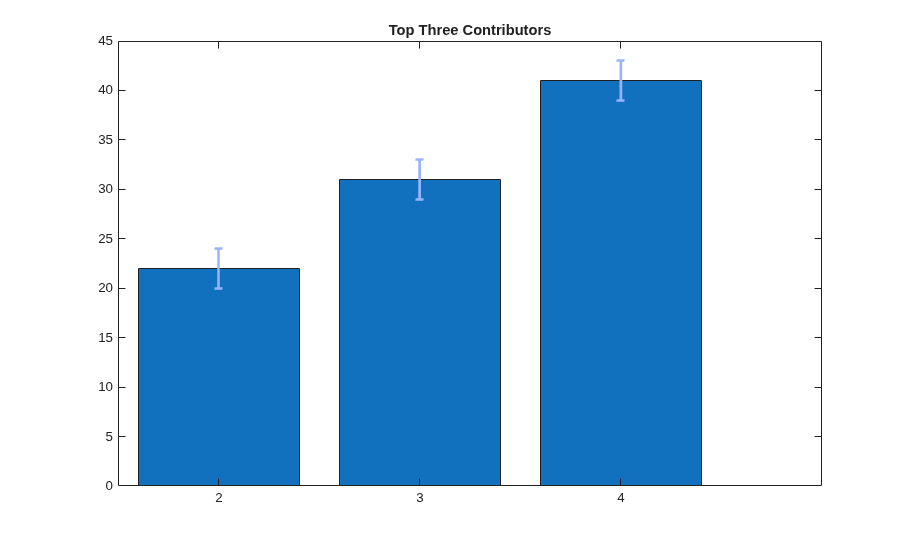

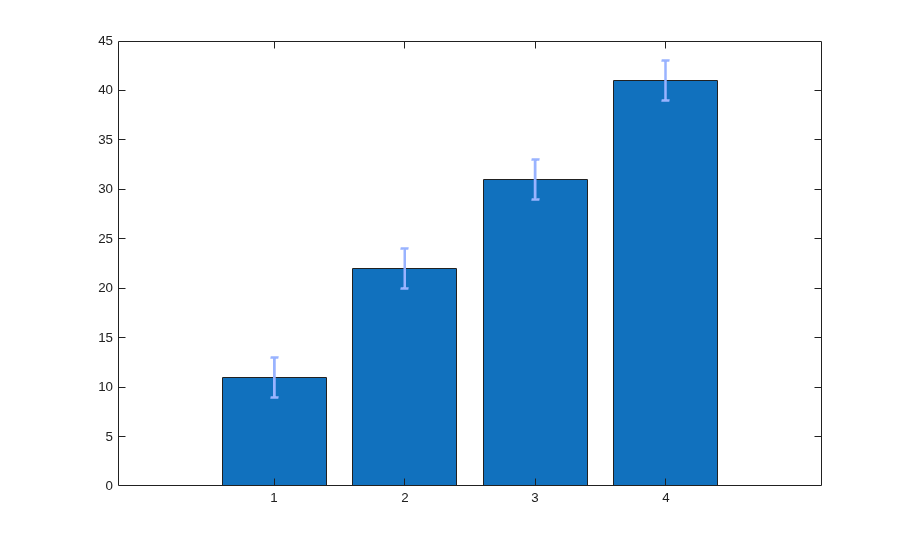

Example: Chart That Supports title, xlim, and ylim

Define a BarErrorBarChart class for displaying a chart that contains bars and error bars, and also supports the title, xlim, and ylim functions.

To define this class, create a program file named BarErrorBarChart.m in a folder that is on the MATLAB path. Then implement the class by following the steps in the table. For a working implementation of this class, see Chart Class That Supports title, xlim, and ylim Functions.

StepImplementation

Derive from the ChartContainer base class.

classdef BarErrorBarChart < matlab.graphics.chartcontainer.ChartContainer

Define public properties. Include the TitleText property to store the title.

    properties
        XData (1,:) double = NaN
        YData (1,:) double = NaN
        EData (1,:) double = NaN
        TitleText (:,:) char = ''
    end

Define dependent properties that provide access to the x and y limits and the corresponding mode properties.

    properties (Dependent)
        % Provide properties to support setting and getting
        XLimits (1,2) double
        XLimitsMode {mustBeMember(XLimitsMode,{'auto','manual'})}
        YLimits (1,2) double
        YLimitsMode {mustBeMember(YLimitsMode,{'auto','manual'})}
    end

Define private properties. One property stores a Bar object, and the other stores an ErrorBar object.

    properties (Access = private)
        BarObject (1,1) matlab.graphics.chart.primitive.Bar
        ErrorBarObject (1,1) matlab.graphics.chart.primitive.ErrorBar
    end

Implement the setup method. In this case, call the bar and errorbar functions to create the Bar and ErrorBar objects respectively. Store the objects in the corresponding properties, and then configure the line style and line width for the ErrorBar object.

Turn the hold state of the axes back to 'off' before exiting the method.

    methods(Access = protected)
        function setup(obj)
            ax = getAxes(obj);
            obj.BarObject = bar(ax,obj.XData,obj.YData);
            hold(ax,'on')
            obj.ErrorBarObject = errorbar(ax,obj.XData,obj.YData,obj.EData);
            obj.ErrorBarObject.LineStyle = 'none';
            obj.ErrorBarObject.LineWidth = 2;
            obj.ErrorBarObject.Color = [0.6 0.7 1];
            hold(ax,'off');
        end

Implement the update method. In this case, update the x- and y-coordinates and the delta values on the error bar. Then call the title function to update the axes title.

        function update(obj)
            % Update Bar and ErrorBar XData and YData
            obj.BarObject.XData = obj.XData;
            obj.BarObject.YData = obj.YData;
            obj.ErrorBarObject.XData = obj.XData;
            obj.ErrorBarObject.YData = obj.YData;

            % Update ErrorBar delta values
            obj.ErrorBarObject.YNegativeDelta = obj.EData;
            obj.ErrorBarObject.YPositiveDelta = obj.EData;

            % Update axes title
            ax = getAxes(obj);
            title(ax,obj.TitleText);
        end
    end

Implement an xlim method that calls the xlim function to set the x-axis limits.

    methods
        % xlim method
        function varargout = xlim(obj,varargin)
            ax = getAxes(obj);
            [varargout{1:nargout}] = xlim(ax,varargin{:});
        end

Implement a ylim method that calls the ylim function to set the y-axis limits.

        % ylim method
        function varargout = ylim(obj,varargin)
            ax = getAxes(obj);
            [varargout{1:nargout}] = ylim(ax,varargin{:});
        end

Implement a title method that sets the value of the TextTitle property on the chart.

        % title method
        function title(obj,txt)
            obj.TitleText = txt;
        end

Implement the set and get methods for the XLimits, YLimits, and the corresponding mode properties.

        % set and get methods for XLimits and XLimitsMode
        function set.XLimits(obj,xlm)
            ax = getAxes(obj);
            ax.XLim = xlm;
        end
        function xlm = get.XLimits(obj)
            ax = getAxes(obj);
            xlm = ax.XLim;
        end
        function set.XLimitsMode(obj,xlmmode)
            ax = getAxes(obj);
            ax.XLimMode = xlmmode;
        end
        function xlm = get.XLimitsMode(obj)
            ax = getAxes(obj);
            xlm = ax.XLimMode;
        end

        % set and get methods for YLimits and YLimitsMode
        function set.YLimits(obj,ylm)
            ax = getAxes(obj);
            ax.YLim = ylm;
        end
        function ylm = get.YLimits(obj)
            ax = getAxes(obj);
            ylm = ax.YLim;
        end
        function set.YLimitsMode(obj,ylmmode)
            ax = getAxes(obj);
            ax.YLimMode = ylmmode;
        end
        function ylm = get.YLimitsMode(obj)
            ax = getAxes(obj);
            ylm = ax.YLimMode;
        end
    end
end
