Sparse identity matrix


S = speye(m,n)
S = speye([m n])
S = speye(n)
S = speye

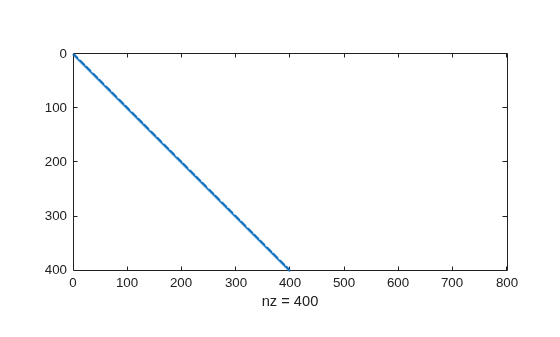

S = speye(m,n) and S = speye([m n]) form an m-by-n sparse matrix with 1s on the main diagonal.

S = speye(n) abbreviates speye(n,n).

S = speye returns the sparse form of the 1-by-1 identity matrix.

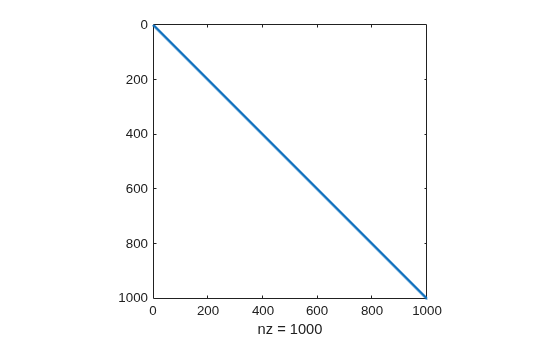

I = speye(1000) forms the sparse representation of the 1000-by-1000 identity matrix, which requires only about 16 kilobytes of storage. This is the same final result as I = sparse(eye(1000,1000)), but the latter requires eight megabytes for temporary storage for the full representation.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced before R2006a
