Create 3-D stream tube plot

`streamtube(X,Y,Z,U,V,W,startx,starty,startz)`

streamtube(U,V,W,startx,starty,startz)

streamtube(vertices,X,Y,Z,divergence)

streamtube(vertices,divergence)

streamtube(vertices,width)

streamtube(vertices)

streamtube(...,[scale n])

streamtube(ax,...)

h = streamtube(...)

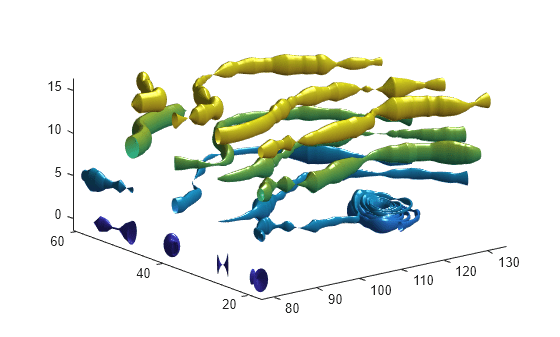

`streamtube(X,Y,Z,U,V,W,startx,starty,startz)`

draws stream tubes from vector volume data `U`

, `V`

, `W`

.

The arrays `X`

, `Y`

, and `Z`

,
which define the coordinates for `U`

, `V`

,
and `W`

, must be monotonic, but do not need to be
uniformly spaced. `X`

, `Y`

, and `Z`

must
have the same number of elements, as if produced by `meshgrid`

.

`startx`

, `starty`

, and `startz`

define the
starting positions of the streamlines at the center of the tubes.

The width of the tubes is proportional to the normalized divergence of the vector field.

`streamtube(U,V,W,startx,starty,startz)`

assumes `X`

, `Y`

, and `Z`

are
determined by the expression

[X,Y,Z] = meshgrid(1:n,1:m,1:p)

where `[m,n,p] = size(U)`

.

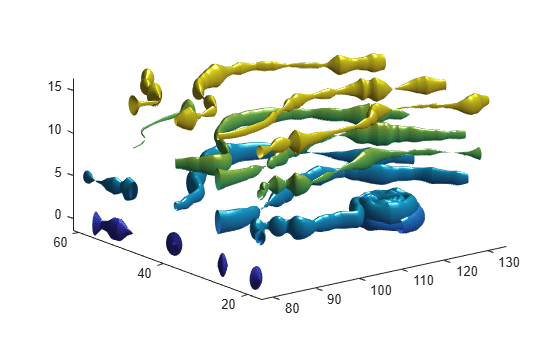

`streamtube(vertices,X,Y,Z,divergence)`

assumes precomputed streamline vertices and divergence. `vertices`

is
a cell array of streamline vertices (as produced by `stream3`

). `X`

, `Y`

, `Z`

,
and `divergence`

are 3-D arrays.

`streamtube(vertices,divergence)`

assumes `X`

, `Y`

, and `Z`

are
determined by the expression

[X,Y,Z] = meshgrid(1:n,1:m,1:p)

where `[m,n,p] = size(divergence)`

.

`streamtube(vertices,width)`

specifies the width of the tubes in the cell array of vectors, `width`

.
The size of each corresponding element of `vertices`

and `width`

must
be equal. `width`

can also be a scalar, specifying
a single value for the width of all stream tubes.

`streamtube(vertices)`

selects
the width automatically.

`streamtube(...,[scale n])`

scales the width of the tubes by `scale`

. The default
is `scale = 1`

. When the stream tubes are created,
using start points or divergence, specifying `scale = 0`

suppresses
automatic scaling. `n`

is the number of points along
the circumference of the tube. The default is `n = 20`

.

`streamtube(ax,...)`

plots into the axes object
`ax`

instead of into the current axes object (`gca`

).

`h = streamtube(...)`

returns a vector of
`surface`

objects (one per start point) used to draw the stream
tubes.
