# meshgrid

2-D and 3-D grids

## Description

example

[X,Y] = meshgrid(x,y) returns 2-D grid coordinates based on the coordinates contained in vectors x and y. X is a matrix where each row is a copy of x, and Y is a matrix where each column is a copy of y. The grid represented by the coordinates X and Y has length(y) rows and length(x) columns.

example

[X,Y] = meshgrid(x) is the same as [X,Y] = meshgrid(x,x), returning square grid coordinates with grid size length(x)-by-length(x).

example

[X,Y,Z] = meshgrid(x,y,z) returns 3-D grid coordinates defined by the vectors x, y, and z. The grid represented by X, Y, and Z has size length(y)-by-length(x)-by-length(z).

example

[X,Y,Z] = meshgrid(x) is the same as [X,Y,Z] = meshgrid(x,x,x), returning 3-D grid coordinates with grid size length(x)-by-length(x)-by-length(x).

## Examples

collapse all

Create 2-D grid coordinates with x-coordinates defined by the vector x and y-coordinates defined by the vector y.

x = 1:3;
y = 1:5;
[X,Y] = meshgrid(x,y)
X = 5×3

1     2     3
1     2     3
1     2     3
1     2     3
1     2     3

Y = 5×3

1     1     1
2     2     2
3     3     3
4     4     4
5     5     5

Evaluate the expression ${x}^{2}+{y}^{2}$ over the 2-D grid.

X.^2 + Y.^2
ans = 5×3

2     5    10
5     8    13
10    13    18
17    20    25
26    29    34

Create a 2-D grid with uniformly spaced x-coordinates and y-coordinates in the interval [-2,2].

x = -2:0.25:2;
y = x;
[X,Y] = meshgrid(x);

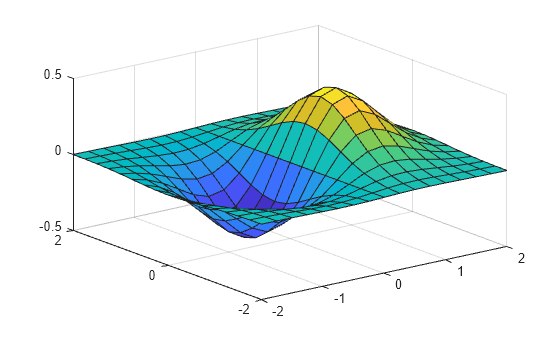

Evaluate and plot the function $f\left(x,y\right)=x{e}^{-{x}^{2}-{y}^{2}}$ over the 2-D grid.

F = X.*exp(-X.^2-Y.^2);
surf(X,Y,F)

Starting in R2016b, it is not always necessary to create the grid before operating over it. For example, computing the expression $x{e}^{-{x}^{2}-{y}^{2}}$ implicitly expands the vectors x and y. For more information on implicit expansion, see Array vs. Matrix Operations.

surf(x,y,x.*exp(-x.^2-(y').^2))

Create 3-D grid coordinates from x-, y-, and z-coordinates defined in the interval [0,6], and evaluate the expression ${x}^{2}+{y}^{2}+{z}^{2}$.

x = 0:2:6;
y = 0:1:6;
z = 0:3:6;
[X,Y,Z] = meshgrid(x,y,z);
F = X.^2 + Y.^2 + Z.^2;

Determine the size of the grid. The three coordinate vectors have different lengths, forming a rectangular box of grid points.

gridsize = size(F)
gridsize = 1×3

7     4     3

Use the single-input syntax to generate a uniformly spaced 3-D grid based on the coordinates defined in x. The new grid forms a cube of grid points.

[X,Y,Z] = meshgrid(x);
G = X.^2 + Y.^2 + Z.^2;
gridsize = size(G)
gridsize = 1×3

4     4     4

## Input Arguments

collapse all

x-coordinates of points, specified as a vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

y-coordinates of points, specified as a vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

z-coordinates of points, specified as a vector.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

## Output Arguments

collapse all

x-coordinates over a grid, returned as a 2-D (two inputs) or 3-D array (three inputs).

y-coordinates over a grid, returned as a 2-D (two inputs) or 3-D array (three inputs).

z-coordinates over a grid, returned as a 3-D array.
