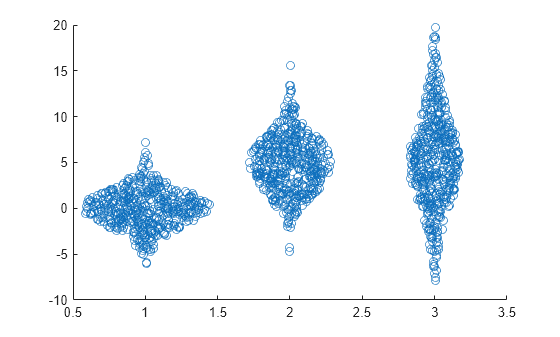

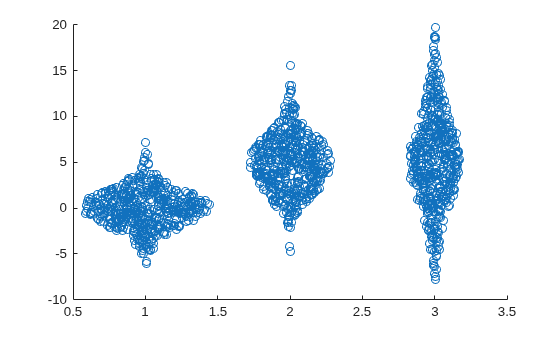

Swarm scatter chart

`swarmchart(`

displays
a swarm chart, which is a scatter plot with the points offset (jittered) in the
`x`

,`y`

)`x`

-dimension. The points form distinct shapes, and the outline of each
shape is similar to a violin plot. Swarm charts help you to visualize discrete
`x`

data with the distribution of the `y`

data. At each
location in `x`

, the points are jittered based on the kernel density
estimate of `y`

.

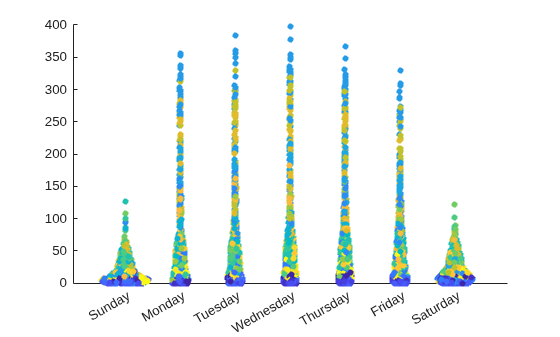

`swarmchart(`

specifies the marker colors. To plot all the markers with the same color, specify
`x`

,`y`

,`sz`

,`c`

)`c`

as a color name or an RGB triplet. To assign a different color to
each marker, specify a vector the same size as x and y. Alternatively, you can specify a
three-column matrix of RGB triplets. The number of rows in the matrix must match the length
of `x`

and `y`

.

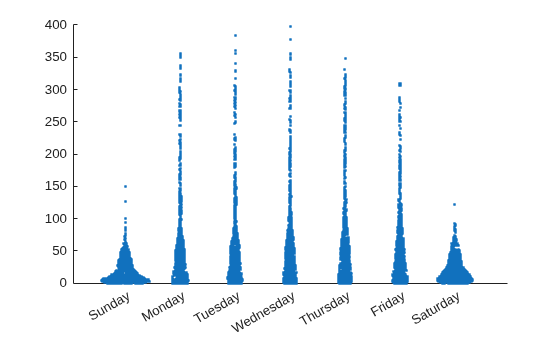

`swarmchart(___,`

specifies a
different marker than the default marker, which is a circle. Specify `mkr`

)`mkr`

after all the arguments in any of the previous syntaxes.

`swarmchart(___,`

fills in
the markers. Specify the `'filled'`

)`'filled'`

option after all the arguments in any
of the previous syntaxes.

`swarmchart(___,`

specifies additional properties for the swarm chart using one or more
`Name,Value`

)`Name,Value`

pair arguments. Specify the properties after all other input
arguments. For a list of properties, see Scatter Properties.

`swarmchart(`

displays the
swarm chart in the target axes. Specify the axes before all the arguments in any of the
previous syntaxes.`ax`

,___)

`s = swarmchart(___)`

returns the
`Scatter`

object. Use `s`

to modify properties of the
chart after creating it. For a list of properties, see Scatter Properties.

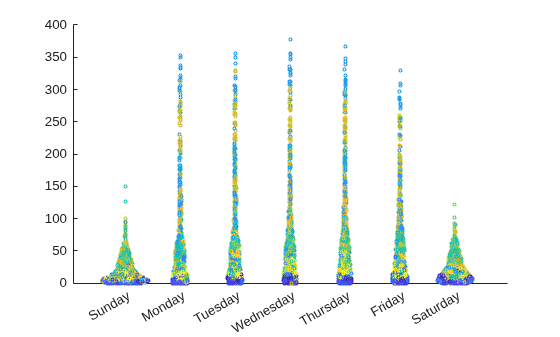

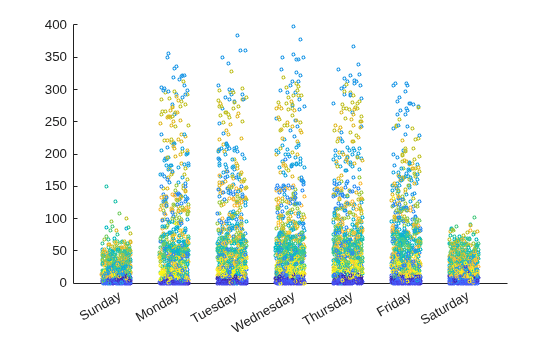

The points in a swarm chart are jittered using uniform random values that are weighted by
the Gaussian kernel density estimate of `y`

and the relative number of points
at each `x`

location. This behavior corresponds to the default
`'density'`

setting of the `XJitter`

property on the
`Scatter`

object when you call the `swarmchart`

function.

The maximum spread of points at each `x`

location is 90% of the smallest distance between adjacent `x`

values by
default:

spread = 0.9 * min(diff(unique(x)));

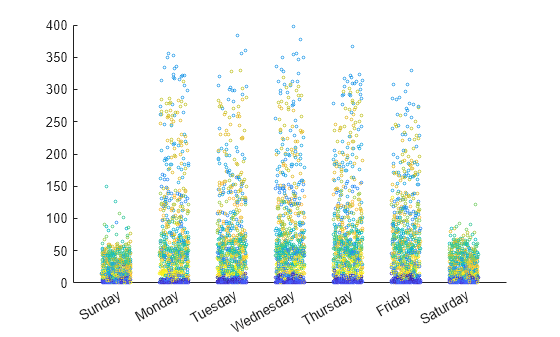

You can control the spread by setting the `XJitterWidth`

property on
the `Scatter`

object.
