# factorPoseSE2AndPointXY

Factor relating SE(2) position and 2-D point

Since R2022b

## Description

The `factorPoseSE2AndPointXY` object contains factors that each describe the relationship between a position in the SE(2) state space and a 2-D landmark point. You can use this object to add one or more factors to a `factorGraph` object.

## Creation

### Syntax

``F = factorPoseSE2AndPointXY(nodeID)``
``F = factorPoseSE2AndPointXY(___,Name=Value)``

### Description

````F = factorPoseSE2AndPointXY(nodeID)` creates a `factorPoseSE2AndPointXY` object, `F`, with the node identification numbers property `NodeID` set to `nodeID`.```

example

````F = factorPoseSE2AndPointXY(___,Name=Value)` specifies properties using one or more name-value arguments in addition to the argument from the previous syntax. For example, ```factorPoseSE2AndPointXY([1 2],Measurement=[1 5])``` sets the `Measurement` property of the `factorPoseSE2AndPointXY` object to `[1 5]`.```

## Properties

expand all

This property is read-only.

Node ID numbers, specified as an N-by-2 matrix of nonnegative integers, where N is the total number of desired factors. Each row represents a factor connecting a node of type, `POSE_SE2` to a node of type `POINT_XY` in the form [PoseID PointID], where PoseID is the ID of the `POSE_SE2` node and PointID is the ID of the `POINT_XY` node in the factor graph.

If a factor in the `factorPoseSE2AndPointXY` object specifies an ID that does not correspond to a node in the factor graph, the factor graph automatically creates a node of the required type with that ID and adds it to the factor graph when adding the factor to the factor graph.

You must specify this property at object creation.

Measured relative position between the current position and landmark point, specified as an N-by-2 matrix where each row is of the form [dx dy], in meters. N is the total number of factors, and dx and dy are the change in position in x and y, respectively.

Information matrix associated with the uncertainty of the measurements, specified as a 2-by-2 matrix or a 2-by-2-by-N array. N is the total number of factors specified by the `factorPoseSE2AndPointXY` object. Each information matrix corresponds to the measurements of the corresponding node in `NodeID`.

If you specify this property as a 2-by-2 matrix when `NodeID` contains more than one row, the information matrix corresponds to all measurements in `Measurement`.

This information matrix is the inverse of the covariance matrix, where the covariance matrix is of the form:

`$\left[\begin{array}{cc}\sigma \left(x,x\right)& \sigma \left(x,y\right)\\ \sigma \left(y,x\right)& \sigma \left(y,y\right)\end{array}\right]$`

Each element indicates the covariance between two variables. For example, σ(x,y) is the covariance between x and y.

## Object Functions

 `nodeType` Get node type of node in factor graph

## Examples

collapse all

Create a matrix of positions of the landmarks to use for localization, and the real positions of the robot to compare your factor graph estimate against. Use the `exampleHelperPlotPositionsAndLandmarks` helper function to visualize the landmark points and the real path of the robot..

```landmarks = [0 -3 0; 3 4 0; 7 1 0]; realpos = [0 0 0; 2 -2 0; 5 3 0; 10 2 0]; exampleHelperPlotPositionsAndLandmarks(realpos,landmarks)```

Create Robot Pose Nodes

Create a factor graph, and add a prior factor to loosely fix the start pose of the robot by providing an estimate pose.

```fg = factorGraph; rng(1) pf = factorPoseSE3Prior(0);```

Generate node IDs to use to create three `factorTwoPoseSE3` relative pose factors that relate four robot poses. To simulate sensor readings for the measurements of each factor, take the difference between a consecutive pair of ground truth positions, add noise, and append a quaternion of zero to provide a rotation of zero. Then add the prior factor and the pose factors to the factor graph.

```zeroQuat = [1 0 0 0]; rpfIDs = generateNodeID(fg,3,"factorTwoPoseSE3")```
```rpfIDs = 3×2 0 1 1 2 2 3 ```
```rpfmeasure = [(diff(realpos) + 0.1*rand(3)) repmat(zeroQuat,3,1)]; rpf = factorTwoPoseSE3(rpfIDs,Measurement=rpfmeasure); addFactor(fg,pf); addFactor(fg,rpf);```

Create Landmark Factors

Generate node IDs to create three `factorPoseSE3AndXYZ` landmark factor objects that relate to the pose nodes. The first and second pose nodes observe the first landmark point so they should connect to that landmark with a factor. The second and third pose nodes observe the second landmark. The third and fourth pose nodes observe the third landmark.

`landmarkIDs = generateNodeID(fg,3)'`
```landmarkIDs = 3×1 4 5 6 ```

The landmark factors used here are for 3-D state space but the process is identical for landmark factors for 2-D state space. Add some random number to the relative position between the landmark and the ground truth position to simulate real sensor measurements. Then create the landmark factors and add them to the factor graph.

```lmf1measure = [landmarks(1,:) - realpos(1:2,:)] + 0.5*rand(1,3); lmf2measure = [landmarks(2,:) - realpos(2:3,:)] + 0.5*rand(1,3); lmf3measure = [landmarks(3,:) - realpos(3:4,:)] + 0.5*rand(1,3); lmf1 = factorPoseSE3AndPointXYZ([[0 1]' repmat(landmarkIDs(1),2,1)],Measurement=lmf1measure); lmf2 = factorPoseSE3AndPointXYZ([[1 2]' repmat(landmarkIDs(2),2,1)],Measurement=lmf2measure); lmf3 = factorPoseSE3AndPointXYZ([[2 3]' repmat(landmarkIDs(3),2,1)],Measurement=lmf3measure); addFactor(fg,lmf1); addFactor(fg,lmf2); addFactor(fg,lmf3);```

Optimize Factor Graph

Optimize the factor graph with the default solver options. The optimization updates the states of all nodes in the factor graph, so the positions of vehicle and the landmarks update.

```fgso = factorGraphSolverOptions; optimize(fg,fgso)```
```ans = struct with fields: InitialCost: 72.6129 FinalCost: 0.0011 NumSuccessfulSteps: 4 NumUnsuccessfulSteps: 0 TotalTime: 4.2391e-04 TerminationType: 0 IsSolutionUsable: 1 ```

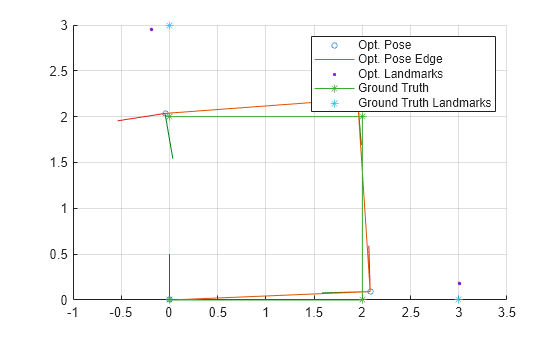

Visualize and Compare Results

Get and store the updated node states for the vehicle and landmarks and plot the results, comparing the factor graph estimate of the robot path to the known ground truth of the robot.

```poseIDs = nodeIDs(fg,NodeType="POSE_SE3"); fgposopt = nodeState(fg,poseIDs)```
```fgposopt = 4×7 0.0000 0.0000 0.0000 1.0000 0.0000 -0.0000 0.0000 2.0278 -1.9778 0.0173 1.0000 0.0018 -0.0034 0.0014 5.0684 3.0500 0.0871 0.9999 -0.0010 -0.0072 0.0089 10.0844 2.1475 0.1972 0.9999 0.0006 -0.0121 0.0100 ```
```fglmopt = nodeState(fg,landmarkIDs); exampleHelperPlotPositionsAndLandmarks(realpos,landmarks,fgposopt,fglmopt)```

## Version History

Introduced in R2022b
