plannerMPNET
Description
The plannerMPNET
object stores a pretrained motion planning
networks (MPNet) to use for path planning. MPNet path planner is a bidirectional planner and
converges more rapidly towards the optimal solution. The MPNet path planner uses two planning
approaches for computing collision-free paths: 1) Bidirectional neural path planning and 2)
Classical path planning. The neural path planning method uses a pretrained MPNet to compute
the states of a collision-free path. The states computed using neural path planning are called
learned states. The classical path planning method uses path planning
algorithms such as rapidly-exploring random tree (RRT) method to compute the states of a
collision-free path. The states computed using classical path planning are called
classical states. By default, the MPNet path planner uses neural path
planning to compute optimal path between two states. The planner switches to a classical path
planning approach only if the neural path planning method cannot find a path between two
states. For information about how the MPNet path planner works, see the Algorithms section.
Creation
Description
creates a bidirectional MPNet path planner using a state validator and pretrained MPNet. planner
= plannerMPNET(stateValidator
,mpnet
)
The
stateValidator
argument sets theStateValidator
property of the MPNet path planner.The
mpnet
argument sets theMotionPlanningNetwork
property of the MPNet path planner.
specifies the planner
= plannerMPNET(___,Name=Value
)MaxLearnedStates
and
ClassicalPlannerFcn
properties of the MPNet path planner using
name-value arguments.
Note
To run this function, you will require the Deep Learning Toolbox™.
Properties
StateValidator
— State validator for planner
validatorVehicleCostmap
| validatorOccupancyMap
| object of a subclass from nav.StateValidator
class
This property is read-only.
State validator for the MPNet path planner, specified as a validatorVehicleCostmap
object, validatorOccupancyMap
object, or an object of the subclass from nav.StateValidator
class.
MotionPlanningNetwork
— Pretrained MPNet
mpnetSE2
object
This property is read-only.
Pretrained MPNet for neural path planning, specified as an mpnetSE2
object.
The MPNet path planner converges more rapidly towards the optimal solution if the
pretrained network is trained on optimal paths. For more information about MPNet, see
Get Started with Motion Planning Networks.
MaxLearnedStates
— Maximum number of learned states
50 (default) | positive scalar integer
Maximum number of learned states to be generated by the MPNet path planner,
specified as a positive scalar integer. If this value is set to zero, the MPNet path
planner defaults to using a classical path planning method, as specified by the
ClassicalPlannerFcn
property.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
ClassicalPlannerFcn
— Classical planner for planning
plannerRRTStar
(default) | function handle
Classical planner for planning, specified as a function handle to call any of these
path planners: plannerRRT
,
plannerBiRRT
, or
plannerRRTStar
object. The path planner resorts to a classical planner in the following cases:
Maximum number of learned states is set to 0.
Maximum number of learned states is insufficient to compute a path between the start and goal points.
One or more consecutive states in the global path, returned by the MPNet, collide with an obstacle. For more information about how planner recomputes the path in the presence of collisions, see the Algorithms section.
By default, the planner uses the RRT* path planning algorithm if
pretrained MPNet fails to generate a path. This property is visible only when you
specify ClassicalPlannerFcn
as an input.
Data Types: function_handle
Object Functions
Examples
Plan Path Between Two States Using MPNet Path Planner
Load Pretrained MPNet
Load a data file containing a pretrained MPNet into the MATLAB® workspace. The MPNet has been trained on various 2-D maze maps with widths and heights of 10 meters and resolutions of 2.5 cells per meter. Each maze map contains a passage width of 5 grid cells and wall thickness of 1 grid cell.
data = load("mazeMapTrainedMPNET.mat")
data = struct with fields:
encodingSize: [9 9]
lossWeights: [100 100 0]
mazeParams: {[5] [1] 'MapSize' [10 10] 'MapResolution' [2.5000]}
stateBounds: [3x2 double]
trainedNetwork: [1x1 dlnetwork]
Set the seed value to generate repeatable results.
rng(10,"twister")
Create Maze Map for Motion Planning
Create a random maze map for motion planning. The grid size () must be same as that of the maps used for training the MPNet.
map = mapMaze(5,1,MapSize=[10 10],MapResolution=2.5);
Create State Validator
Create a state validator object to use for motion planning.
stateSpace = stateSpaceSE2(data.stateBounds); stateValidator = validatorOccupancyMap(stateSpace,Map=map); stateValidator.ValidationDistance = 0.1;
Select Start and Goal States
Generate multiple random start and goal states by using the sampleStartGoal
function.
[startStates,goalStates] = sampleStartGoal(stateValidator,100);
Compute distance between the generated start and goal states.
stateDistance= distance(stateSpace,startStates,goalStates);
Select two states that are farthest from each other as the start and goal for motion planning.
[dist,index] = max(stateDistance); start = startStates(index,:); goal = goalStates(index,:);
Visualize the input map.
figure show(map) hold on plot(start(1),start(2),plannerLineSpec.start{:}) plot(goal(1),goal(2),plannerLineSpec.goal{:}) legend(Location="bestoutside") hold off
Compute Path Using MPNet Path Planner
Configure the mpnetSE2
object to use the pretrained MPNet for path planning. Set the EncodingSize
property values of the mpnetSE2
object to that of the value used for training the network.
mpnet = mpnetSE2(Network=data.trainedNetwork,StateBounds=data.stateBounds,EncodingSize=data.encodingSize);
Create MPNet path planner using the state validator and the pretrained MPNet.
planner = plannerMPNET(stateValidator,mpnet);
Plan a path between the select start and goal states using the MPNet path planner.
[pathObj,solutionInfo] = plan(planner,start,goal);
Display Planned Path
Display the navPath
object returned by the MPNet path planner. The number of states in the planned path and the associated state vectors are specified by the NumStates
and States
properties of the navPath
object, respectively.
disp(pathObj)
navPath with properties: StateSpace: [1x1 stateSpaceSE2] States: [5x3 double] NumStates: 5 MaxNumStates: Inf
Set the line and marker properties to display the start and goal states by using the plannerLineSpec.start
and plannerLineSpec.goal
functions, respectively.
sstate = plannerLineSpec.start(DisplayName="Start state",MarkerSize=6); gstate = plannerLineSpec.goal(DisplayName="Goal state",MarkerSize=6);
Set the line properties to display the computed path by using the plannerLineSpec.path
function.
ppath = plannerLineSpec.path(LineWidth=1,Marker="o",MarkerSize=8,MarkerFaceColor="white",DisplayName="Planned path");
Plot the planned path.
figure show(map) hold on plot(pathObj.States(:,1),pathObj.States(:,2),ppath{:}) plot(start(1),start(2),sstate{:}) plot(goal(1),goal(2),gstate{:}) legend(Location="bestoutside") hold off
Display Additional Data
Display the solutionInfo
structure returned by the MPNet path planner. This structure stores the learned states, classical states, and beacon states computed by the MPNet path planner. If any of these three types of states are not computed by the MPNet path planner, the corresponding field value is set to empty.
disp(solutionInfo)
IsPathFound: 1 LearnedStates: [50x3 double] BeaconStates: [2x3 double] ClassicalStates: [9x3 double]
Set the line and marker properties to display the learned states, classical states, and beacon states by using the plannerLineSpec.state
.
lstate = plannerLineSpec.state(DisplayName="Learned states",MarkerSize=3); cstate = plannerLineSpec.state(DisplayName="Classical states",MarkerSize=3,MarkerFaceColor="green",MarkerEdgeColor="green"); bstate = plannerLineSpec.state(MarkerEdgeColor="magenta",MarkerSize=7,DisplayName="Beacon states",Marker="^");
Plot the learned states, classical states, and beacon states along with the computed path. From the figure, you can infer that the neural path planning approach was unable to compute a collision-free path where beacon states are present. Hence, the MPNet path planner resorted to the classical RRT* path planning approach. The final states of the planned path constitutes states returned by neural path planning and classical path planning approaches.
figure show(map) hold on plot(pathObj.States(:,1),pathObj.States(:,2),ppath{:}) plot(solutionInfo.LearnedStates(:,1),solutionInfo.LearnedStates(:,2),lstate{:}) plot(solutionInfo.ClassicalStates(:,1),solutionInfo.ClassicalStates(:,2),cstate{:}) plot(solutionInfo.BeaconStates(:,1),solutionInfo.BeaconStates(:,2),bstate{:}) plot(start(1),start(2),sstate{:}) plot(goal(1),goal(2),gstate{:}) legend(Location="bestoutside") hold off
Modify Classical Planning Approach for MPNet Path Planner
Load Pretrained MPNet
Load a data file containing a pretrained MPNet into the MATLAB® workspace. The MPNet has been trained on various 2-D maze maps with widths and heights of 10 meters and resolutions of 2.5 cells per meter. Each maze map contains a passage width of 5 grid cells and wall thickness of 1 grid cell.
data = load("mazeMapTrainedMPNET.mat")
data = struct with fields:
encodingSize: [9 9]
lossWeights: [100 100 0]
mazeParams: {[5] [1] 'MapSize' [10 10] 'MapResolution' [2.5000]}
stateBounds: [3x2 double]
trainedNetwork: [1x1 dlnetwork]
Set the seed value to generate repeatable results.
rng(70,"twister")
Create Maze Map for Motion Planning
Create a random maze map for motion planning. The grid size () must be same as that of the maps used for training the MPNet.
map = mapMaze(5,1,MapSize=[12 12],MapResolution=2.0833);
Create State Validator
Create a state validator object to use for motion planning.
stateSpace = stateSpaceSE2(data.stateBounds); stateValidator = validatorOccupancyMap(stateSpace,Map=map); stateValidator.ValidationDistance = 0.1;
Select Start and Goal States
Select a start and goal state by using the sampleStartGoal
function.
[startStates,goalStates] = sampleStartGoal(stateValidator,500);
Compute distance between the generated start and goal states.
stateDistance= distance(stateSpace,startStates,goalStates);
Select two states that are farthest from each other as the start and goal for motion planning.
[dist,index] = max(stateDistance); start = startStates(index,:); goal = goalStates(index,:);
Create MPNet Path Planner
Configure the mpnetSE2
object to use the pretrained MPNet for path planning. Set the EncodingSize
property values of the mpnetSE2
object to that of the value used for training the network.
mpnet = mpnetSE2(Network=data.trainedNetwork,StateBounds=data.stateBounds,EncodingSize=data.encodingSize);
Create MPNet path planner using the state validator and the pretrained MPNet. Plan a path between the select start and goal states using the MPNet path planner.
planner{1} = plannerMPNET(stateValidator,mpnet); [pathObj1,solutionInfo1] = plan(planner{1},start,goal)
pathObj1 = navPath with properties: StateSpace: [1x1 stateSpaceSE2] States: [6x3 double] NumStates: 6 MaxNumStates: Inf
solutionInfo1 = struct with fields:
IsPathFound: 1
LearnedStates: [50x3 double]
BeaconStates: [2x3 double]
ClassicalStates: [20x3 double]
Create Copy of MPNet Path Planner
Create a copy of the first instance of the MPNet path planner.
planner{2} = copy(planner{1});
Modify Classical Path Planning Approach
Specify bi-directional RRT (Bi-RRT) planner as the classical path planning approach for MPNet path planner. Set the maximum connection distance value to 1.
classicalPlanner = plannerBiRRT(stateSpace,stateValidator,MaxConnectionDistance=1); planner{2}.ClassicalPlannerFcn = @classicalPlanner.plan;
Plan a path between the select start and goal states using the modified MPNet path planner.
[pathObj2,solutionInfo2] = plan(planner{2},start,goal)
pathObj2 = navPath with properties: StateSpace: [1x1 stateSpaceSE2] States: [5x3 double] NumStates: 5 MaxNumStates: Inf
solutionInfo2 = struct with fields:
IsPathFound: 1
LearnedStates: [50x3 double]
BeaconStates: [2x3 double]
ClassicalStates: [7x3 double]
Visualize Results
Set the line and marker properties to display the start and goal states by using the plannerLineSpec.start
and plannerLineSpec.goal
functions, respectively.
sstate = plannerLineSpec.start(DisplayName="Start state",MarkerSize=6); gstate = plannerLineSpec.goal(DisplayName="Goal state",MarkerSize=6);
Set the line and marker properties to display the computed by using the plannerLineSpec.path
function.
ppath1 = plannerLineSpec.path(LineWidth=1,Marker="o",MarkerSize=8,MarkerFaceColor="white",DisplayName="Path computed using RRT* for classical path planning"); ppath2 = plannerLineSpec.path(LineWidth=1,Marker="o",MarkerSize=8,MarkerFaceColor="red",DisplayName="Path computed using Bi-RRT for classical path planning");

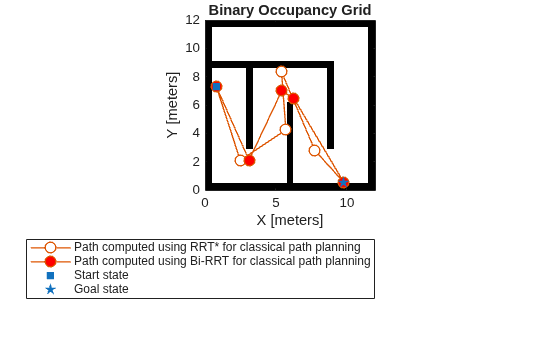

Plot the computed paths. You can infer that the MPNet path planner offers better results when you use Bi-RRT path planner for classical path planning.
figure show(map) hold on plot(pathObj1.States(:,1),pathObj1.States(:,2),ppath1{:}) plot(pathObj2.States(:,1),pathObj2.States(:,2),ppath2{:}) plot(start(1),start(2),sstate{:}) plot(goal(1),goal(2),gstate{:}) legend(Location="southoutside") hold off

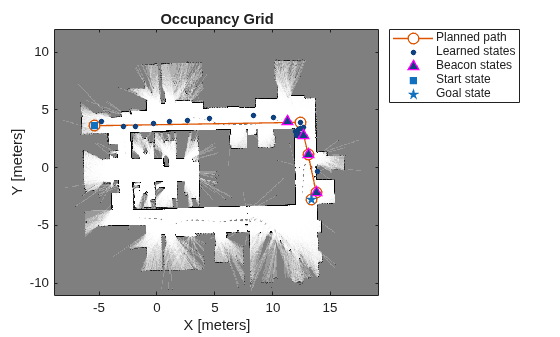

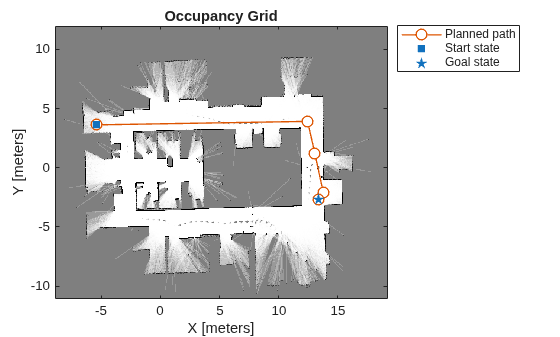

Plan Path in Dubins State Space Using MPNet Path Planner
Load a data file containing a pretrained MPNet into MATLAB® workspace. The MPNet has been trained on a single map for a Dubins vehicle. You can use this pretrained MPNet to find compute paths between any start state and goal state on the map used for training.
inputData = load("officeMapTrainedMPNET.mat")
inputData = struct with fields:
encodingSize: 0
lossWeights: [100 100 10]
officeArea: [1x1 occupancyMap]
trainedNetwork: [1x1 dlnetwork]
Read the map used for training the network.
map = inputData.officeArea;
Specify the limits of the state space variables corresponding to the input map.
x = map.XWorldLimits; y = map.YWorldLimits; theta = [-pi pi]; stateBounds = [x; y; theta];
Create a Dubins state space and set the minimum turning radius to 0.2
.
stateSpace = stateSpaceDubins(stateBounds); stateSpace.MinTurningRadius = 0.2;
Create a state validator object to use for motion planning. Set the validation distance to 0.1 m.
stateValidator = validatorOccupancyMap(stateSpace,Map=map); stateValidator.ValidationDistance = 0.1;
Set the seed value to generate repeatable results.
rng(100,"twister");
Generate multiple random start and goal states by using the sampleStartGoal
function.
[startStates,goalStates] = sampleStartGoal(stateValidator,500);
Compute distance between the generated start and goal states.
stateDistance= distance(stateSpace,startStates,goalStates);
Select two states that are farthest from each other as the start and goal for motion planning.
[dist,index] = max(stateDistance); start = startStates(index,:); goal = goalStates(index,:);
Configure the mpnetSE2
object to use the pretrained MPNet for predicting state samples between a start pose and goal pose. Set the EncodingSize
value to 0
.
mpnet = mpnetSE2(Network=inputData.trainedNetwork,StateBounds=stateBounds,EncodingSize=0);
Create MPNet path planner using the state validator and the pretrained MPNet.
planner = plannerMPNET(stateValidator,mpnet);
Plan a path between the select start and goal states using the MPNet path planner.
[pathObj,solutionInfo] = plan(planner,start,goal)
pathObj = navPath with properties: StateSpace: [1x1 stateSpaceDubins] States: [5x3 double] NumStates: 5 MaxNumStates: Inf
solutionInfo = struct with fields:
IsPathFound: 1
LearnedStates: [23x3 double]
BeaconStates: [4x3 double]
ClassicalStates: [0x3 double]
Set the line and marker properties to display the start and goal states by using the plannerLineSpec.start
and plannerLineSpec.goal
functions, respectively.
sstate = plannerLineSpec.start(DisplayName="Start state",MarkerSize=6); gstate = plannerLineSpec.goal(DisplayName="Goal state",MarkerSize=6);
Set the line properties to display the computed path by using the plannerLineSpec.path
function.
ppath = plannerLineSpec.path(LineWidth=1,Marker="o",MarkerSize=8,MarkerFaceColor="white",DisplayName="Planned path");
Display the input map, and plot the start and goal poses.
figure show(map) hold on plot(pathObj.States(:,1),pathObj.States(:,2),ppath{:}) plot(start(1),start(2),sstate{:}) plot(goal(1),goal(2),gstate{:}) legend(Location="bestoutside") hold off
Display the solutionInfo
structure returned by the MPNet path planner. This structure stores the learned states, classical states, and beacon states computed by the MPNet path planner. If any of these three types of states are not computed by the MPNet path planner, the corresponding field value is set to empty.
disp(solutionInfo)
IsPathFound: 1 LearnedStates: [23x3 double] BeaconStates: [4x3 double] ClassicalStates: [0x3 double]
Set the line and marker properties to display the learned states and beacon states by using the plannerLineSpec.state
.
lstate = plannerLineSpec.state(DisplayName="Learned states",MarkerSize=3); bstate = plannerLineSpec.state(MarkerEdgeColor="magenta",MarkerSize=7,DisplayName="Beacon states",Marker="^");
Plot the learned states and beacon states along with the computed path. From the figure, you can infer that the neural path planning approach successfully computed a collision-free path in two places where beacon states are present. Hence, the MPNet path planner did not resort to the classical RRT* path planning approach. The final states of the planned path are the ones returned by the neural path planning approach.
figure show(map) hold on plot(pathObj.States(:,1),pathObj.States(:,2),ppath{:}) plot(solutionInfo.LearnedStates(:,1),solutionInfo.LearnedStates(:,2),lstate{:}) plot(solutionInfo.BeaconStates(:,1),solutionInfo.BeaconStates(:,2),bstate{:}) plot(start(1),start(2),sstate{:}) plot(goal(1),goal(2),gstate{:}) legend(Location="bestoutside") hold off
Train MPNet on Custom Data for Motion Planning
This example shows how to train a MPNet on a custom dataset and then use the trained network for computing paths between two states in an unknown map environment.
Load and Visualize Training Data set
Load the data set from a .mat
file. The data set contains 400,000 different paths for 200 maze map environments. The data set has been generated for a pre-defined parameters of mazeMap
function. The first column of the data set contains the maps and the second column contains the optimal paths for randomly sampled start, goal states from the corresponding maps. The size of data set is 75MB.
% Download and extract the maze map dataset if ~exist("mazeMapDataset.mat","file") datasetURL = "https://ssd.mathworks.com/supportfiles/nav/data/mazeMapDataset.zip"; websave("mazeMapDataset.zip", datasetURL); unzip("mazeMapDataset.zip") end % Load the maze map dataset load("mazeMapDataset.mat","dataset","stateSpace") head(dataset)
Map Path ______________________ _____________ 1×1 binaryOccupancyMap {14×3 single} 1×1 binaryOccupancyMap { 8×3 single} 1×1 binaryOccupancyMap {24×3 single} 1×1 binaryOccupancyMap {23×3 single} 1×1 binaryOccupancyMap {17×3 single} 1×1 binaryOccupancyMap {15×3 single} 1×1 binaryOccupancyMap { 7×3 single} 1×1 binaryOccupancyMap {10×3 single}
The data set was generated using the examplerHelperGenerateDataForMazeMaps
helper function. The examplerHelperGenerateDataForMazeMaps
helper function uses the mapMaze
function to generate random maze maps of size 10-by-10 and resolution 2.5 m. The width and wall thickness of the maps was set to 5m and 1 m, respectively.
passageWidth = 5; wallThickness = 1; map = mapMaze(passageWidth,wallThickness,MapSize=[10 10],MapResolution=2.5)
Then, the start states and goal states are randomly generated for each map. The optimal path between the start and goal states are computed using plannerRRTStar
path planner. The ContinueAfterGoalReached
and MaxIterations
parameters are set to true
and 5000
, respectively, to generate the optimal paths.
planner = plannerRRTStar(stateSpace,stateValidator); % Uses default uniform state sampling planner.ContinueAfterGoalReached = true; % Optimize after goal is reached planner.MaxIterations = 5000; % Maximum iterations to run the planner
Visualize a few random samples from the training data set. Each sample contains a map and the optimal path generated for a given start and goal state.
figure for i=1:4 subplot(2,2,i) ind = randi(height(dataset)); % Select a random sample map = dataset(ind,:).Map; % Get map from Map column of the table pathStates = dataset(ind,:).Path{1}; % Get path from Path column of the table start = pathStates(1,:); goal = pathStates(end,:); % Plot the data show(map); hold on plot(pathStates(:,1),pathStates(:,2),plannerLineSpec.path{:}) plot(start(1),start(2),plannerLineSpec.start{:}) plot(goal(1),goal(2),plannerLineSpec.goal{:}) end legend(Location="bestoutside")
You can modify the helper function to generate new maps and train the MPNet from scratch. The dataset generation may take a few days depending upon CPU configuration and the number of maps you want to generate for training. To accelerate dataset generation, you can use Parallel Computing Toolbox™.
Create Motion Planning Networks
Create Motion Planning Networks (MPNet) object for SE(2) state space using mpnetSE2
. The mpnetSE2
object loads a preconfigured MPNet that you can use for training. Alternatively, you can use the mpnetLayers
function to create a MPNet with different number of inputs and hidden layers to train on the data set.
mpnet = mpnetSE2;
Set the StateBounds
, LossWeights
, and EncodingSize
properties of the mpnetSE2
object. Set the StateBounds
using the StateBounds
property of the stateSpace
object.
mpnet.StateBounds = stateSpace.StateBounds;
Specify the weights for each state space variables using the LossWeights
property of the mpnetSE2
object. You must specify the weights for each state space variable , , and of SE(2) state space. For a SE(2) state space, we do not consider the robot kinematics such as the turning radius. Hence, you can assign zero weight value for the variable.
mpnet.LossWeights = [100 100 0];
Specify the value for EncodingSize
property of the mpnetSE2
object as [9 9]. Before training the network, the mpnetSE2
object encodes the input map environments to a compact representation of size 9-by-9.
mpnet.EncodingSize = [9 9];
Prepare Data for Training
Split the dataset into train and test sets in the ratio 0.8:0.2. The training set is used to train the Network
weights by minimizing the training loss, validation set is used to check the validation loss during the training.
split = 0.8; trainData = dataset(1:split*end,:); validationData = dataset(split*end+1:end,:);
Prepare the data for training by converting the raw data containing the maps and paths into a format required to train the MPNet.
dsTrain = mpnetPrepareData(trainData,mpnet); dsValidation = mpnetPrepareData(validationData,mpnet);
Visualize prepared dataset. The first column of sample contains the encoded map data, encoded current state and goal states. The second column contains the encoded next state. The encoded state is computed as and normalized to the range of [0, 1]
.
preparedDataSample = read(dsValidation); preparedDataSample(1,:)
ans=1×2 cell array
{[0.2607 0.4112 0.6846 0.9647 0.9138 0.5757 0.4883 1.3733e-04 0.0549 0.1646 0 0.1646 0.1646 0.1646 0.1646 0.1646 0.0549 0.1646 0.8244 0.0870 0.9383 0.8244 0.8244 0.8244 0.8244 0.1646 0.1646 0.8244 0.0870 0.9020 0.0094 0.0870 0.0870 0.0870 3.9316e-16 0.1646 0.8244 0.0870 0.9020 0.0094 0.9020 0.9043 0.9383 0.1646 0.1646 0.8244 0.0870 0.9020 0.0094 0.9020 0.0870 0.8244 0.1646 0.1646 1 0.9043 0.9020 0.0094 0.9020 0.0870 0.8244 0.1646 0.1646 0.8313 0.0870 0.0870 0.0094 0.9020 0.0870 0.8244 0.1646 0.1646 0.9333 0.8244 0.8244 0.8244 0.9383 0.0870 0.8244 0.1646 0.0549 0.1646 0.1646 0.1646 0.1646 0.1646 2.6928e-16 0.1646 0.0549]} {[0.2720 0.4130 0.6786 0.9670]}
Train Deep Learning Network
Use the trainnet
function to train the MPNet. Training this network might take a long time depending on the hardware you use. Set the doTraining
value to true
to train the network.
doTraining = false;
Specify trainingOptions
(Deep Learning Toolbox) for training the deep learning network:
Set "adam" optimizer.
Set the
MiniBatchSize
for training to 2048.Shuffle the
dsTrain
at every epoch.Set the
MaxEpochs
to 50.Set the
ValidationData
todsValidation
andValidationFrequency
to 2000.

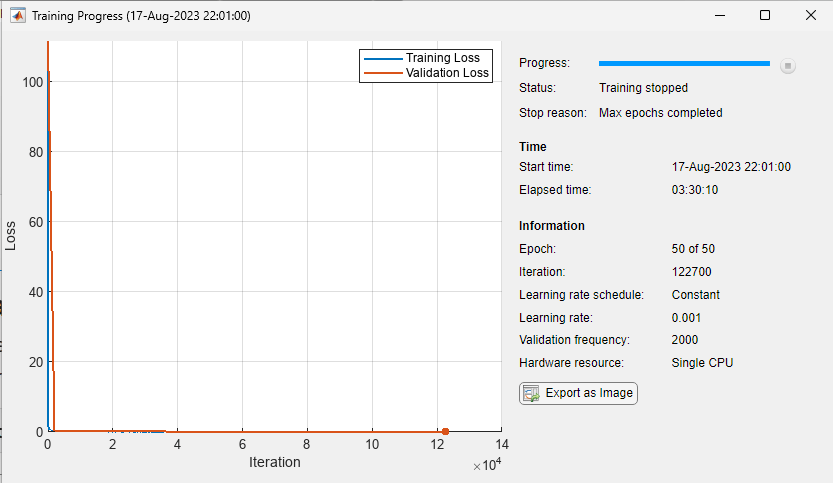

You can consider the training to be successful once the training loss and validation loss converge close to zero.
if doTraining options = trainingOptions("adam",... MiniBatchSize=2048,... MaxEpochs=50,... Shuffle="every-epoch",... ValidationData=dsValidation,... ValidationFrequency=2000,... Plots="training-progress"); % Train network [net,info] = trainnet(dsTrain,mpnet.Network,@mpnet.loss,options); % Update Network property of mpnet object with net mpnet.Network = net; end
You can save the trained network and the details of input map environment to a .mat
file and use it to perform motion planning. In the rest of example, you will use a pretrained MPNet to directly perform motion planning on an unknown map environment.
Load a .mat
file containing the pretrained network. The network has been trained on various, randomly generated maze maps stored in the mazeMapDataset.mat
file. The .mat
file contains the trained network and details of the maze maps used for training the network.
if ~doTraining data = load("mazeMapTrainedMPNET.mat") mpnet.Network = data.trainedNetwork; end
data = struct with fields:
encodingSize: [9 9]
lossWeights: [100 100 0]
mazeParams: {[5] [1] 'MapSize' [10 10] 'MapResolution' [2.5000]}
stateBounds: [3×2 double]
trainedNetwork: [1×1 dlnetwork]
Perform Motion Planning Using Trained MPNet
Create a random maze map for testing the trained MPNet for path panning. The grid size (MapSize×MapResolution) of the test map must be same the as that of the maps used for training the MPNet.
Click the Run
button to generate a new map.
mazeParams = data.mazeParams;
map = mapMaze(mazeParams{:});
figure
show(map)
Create a state validator object.
stateValidator = validatorOccupancyMap(stateSpace,Map=map); stateValidator.ValidationDistance = 0.1;
Create a MPNet path planner using the state validator and the MPNet object as inputs.
planner = plannerMPNET(stateValidator,mpnet);
Generate multiple random start and goal states by using the sampleStartGoal
function.
[startStates,goalStates] = sampleStartGoal(stateValidator,500);
Compute distance between the generated start and goal states.
stateDistance=distance(stateSpace,startStates,goalStates);
Select two states that are farthest from each other as the start and goal for motion planning.
[dist,index] = max(stateDistance); start = startStates(index,:); goal = goalStates(index,:);
Plan path between the start and goal states using the trained MPNet.
[pathObj,solutionInfo] = plan(planner,start,goal)
pathObj = navPath with properties: StateSpace: [1×1 stateSpaceSE2] States: [6×3 double] NumStates: 6 MaxNumStates: Inf
solutionInfo = struct with fields:
IsPathFound: 1
LearnedStates: [32×3 double]
BeaconStates: [2×3 double]
ClassicalStates: [0×3 double]
Set the line and marker properties to display the start and goal states by using the plannerLineSpec.start
and plannerLineSpec.goal
functions, respectively.
sstate = plannerLineSpec.start(DisplayName="Start state",MarkerSize=6); gstate = plannerLineSpec.goal(DisplayName="Goal state",MarkerSize=6);
Set the line properties to display the computed path by using the plannerLineSpec.path
function.
ppath = plannerLineSpec.path(LineWidth=1,Marker="o",MarkerSize=8,MarkerFaceColor="white",DisplayName="Planned path");
Plot the planned path.
figure show(map) hold on plot(pathObj.States(:,1),pathObj.States(:,2),ppath{:}) plot(start(1),start(2),sstate{:}) plot(goal(1),goal(2),gstate{:}) legend(Location="bestoutside") hold off
Algorithms
The plan
function of the plannerMPNET
object
implements the MPNet path planning algorithm presented in [1]. This section gives a brief
overview of the algorithm.
The MPNet path planner computes a coarse path consisting of learned states that lie along the global path between start and goal states. If the path connecting any learned states is not collision-free, the MPNet path planner performs replanning only for that segment in the coarse path.
Two consecutive learned states that are in the free space and cannot be connected without colliding with an obstacle are termed beacon states. The MPNet path planner selects these beacon states as new start and goal points and attempts to find a collision-free path to connect them. This step is referred to as replanning. The path planner makes a limited number of attempts to find this path. If it is not able to find the path within a specified number of attempts, it switches to using a classical path planner. The MPNet path planner determines the maximum number of attempts it can make before switching to a classical planner by using the
MaxNumLearnedStates
property.At every planning and replanning step, the planner applies the lazy states contraction (LSC) approach to remove redundant states computed by the planner. This results in reduced computational complexity and helps the planner find the shortest collision-free path between the actual start and goal states.
References
[1] Qureshi, Ahmed Hussain, Yinglong Miao, Anthony Simeonov, and Michael C. Yip. “Motion Planning Networks: Bridging the Gap Between Learning-Based and Classical Motion Planners.” IEEE Transactions on Robotics 37, no. 1 (February 2021): 48–66. https://doi.org/10.1109/TRO.2020.3006716.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
To use a custom path planner in code generation workflow, the ClassicalPlannerFcn property must be set to a custom function handle before calling the plan function and it cannot be changed after initialization.
Version History
Introduced in R2024a
See Also
Objects
Functions
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
