# assemb

(Not recommended) Assemble boundary condition contributions

`assemb` is not recommended. Use `assembleFEMatrices` instead.

## Syntax

``````[Q,G,H,R] = assemb(model)``````
``````[Q,G,H,R] = assemb(b,p,e)``````
``````[Q,G,H,R] = assemb(___,[],sdl)``````

## Description

example

``````[Q,G,H,R] = assemb(model)``` assembles the matrices `Q` and `H`, and the vectors `G` and `R`. `Q` should be added to the system matrix and contains contributions from mixed boundary conditions.```

example

``````[Q,G,H,R] = assemb(b,p,e)``` assembles the matrices based on the boundary conditions specified in `b` and the mesh data in `p` and `e`.```
``````[Q,G,H,R] = assemb(___,[],sdl)```, for any of the previous input arguments, restricts the finite element matrices to those that include the subdomain specified by the subdomain labels in `sdl`. The empty argument is required in this syntax for historic and compatibility reasons.```

## Examples

collapse all

Assemble the boundary condition matrices for an elliptic PDE.

The PDE is Poisson's equation,

`$-\nabla \cdot \nabla u=1.$`

Partial Differential Equation Toolbox™ solves equations of the form

`$-\nabla \cdot \left(c\nabla u\right)+au=f.$`

So, represent Poisson's equation in toolbox syntax by setting `c` = 1, `a` = 0, and `f` = 1.

```c = 1; a = 0; f = 1;```

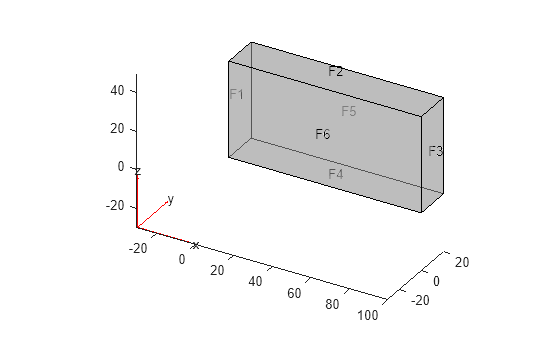

Create a PDE model container. Import the `ForearmLink.stl` file into the model and examine the geometry.

```model = createpde; importGeometry(model,'Block.stl'); h = pdegplot(model,'FaceLabels','on'); h(1).FaceAlpha = 0.5;```

Set zero Dirichlet boundary conditions on the narrow faces (numbered 1 through 4).

`applyBoundaryCondition(model,'Face',1:4,'u',0);`

Set a Neumann condition with `g` = -1 on face 6, and `g` = 1 on face 5.

```applyBoundaryCondition(model,'Face',6,'g',-1); applyBoundaryCondition(model,'Face',5,'g',1);```

Create a mesh for the model.

`generateMesh(model);`

Create the boundary condition matrices for the model.

`[Q,G,H,R] = assemb(model);`

The `H` matrix is quite sparse. The `Q` matrix has no nonzero entries.

`disp(['Fraction of nonzero entries in H is ',num2str(nnz(H)/numel(H))])`
```Fraction of nonzero entries in H is 7.8796e-05 ```
`disp(['Number of nonzero entries in Q is ',num2str(nnz(Q))])`
```Number of nonzero entries in Q is 0 ```

Assemble boundary condition matrices for the 2-D L-shaped region with Dirichlet boundary conditions, using the [p,e,t] mesh representation.

Define the geometry and boundary conditions using functions included in your software.

```g = @lshapeg; b = @lshapeb;```

Create a mesh for the geometry.

`[p,e,t] = initmesh(g);`

Create the boundary matrices.

`[Q,G,H,R] = assemb(b,p,e);`

Only one of the resulting matrices is nonzero, namely `H`. The `H` matrix is quite sparse.

`disp(['Fraction of nonzero entries in H is ',num2str(nnz(H)/numel(H))])`
```Fraction of nonzero entries in H is 0.0066667 ```

## Input Arguments

collapse all

PDE model, specified as a `PDEModel` object.

Example: `model = createpde`

Boundary conditions, specified as a boundary matrix or boundary file. Pass a boundary file as a function handle or as a file name. A boundary matrix is generally an export from the PDE Modeler app.

Example: `b = 'circleb1'`, `b = "circleb1"`, or ```b = @circleb1```

Data Types: `double` | `char` | `string` | `function_handle`

Mesh points, specified as a 2-by-`Np` matrix of points, where `Np` is the number of points in the mesh. For a description of the (`p`,`e`,`t`) matrices, see Mesh Data.

Typically, you use the `p`, `e`, and `t` data exported from the PDE Modeler app, or generated by `initmesh` or `refinemesh`.

Example: `[p,e,t] = initmesh(gd)`

Data Types: `double`

Mesh edges, specified as a `7`-by-`Ne` matrix of edges, where `Ne` is the number of edges in the mesh. For a description of the (`p`,`e`,`t`) matrices, see Mesh Data.

Typically, you use the `p`, `e`, and `t` data exported from the PDE Modeler app, or generated by `initmesh` or `refinemesh`.

Example: `[p,e,t] = initmesh(gd)`

Data Types: `double`

Subdomain labels, specified as a vector of positive integers. For 2-D geometry only. View the subdomain labels in your geometry using the command

`pdegplot(g,'SubdomainLabels','on')`

Example: `sdl = [1,3:5];`

Data Types: `double`

## Output Arguments

collapse all

Neumann boundary condition matrix, returned as a sparse matrix. See Elliptic Equations.

Typically, you use `Q` in a subsequent call to a solver such as `assempde` or `hyperbolic`.

Neumann boundary condition vector, returned as a sparse vector. See Elliptic Equations.

Typically, you use `G` in a subsequent call to a solver such as `assempde` or `hyperbolic`.

Dirichlet matrix, returned as a sparse matrix. See Algorithms.

Typically, you use `H` in a subsequent call to `assempde`.

Dirichlet vector, returned as a sparse vector. See Algorithms.

Typically, you use `R` in a subsequent call to `assempde`.

## Algorithms

As explained in Elliptic Equations, the finite element matrices and vectors correspond to the reduced linear system and are the following.

• `Q` is the integral of the `q` boundary condition against the basis functions.

• `G` is the integral of the `g` boundary condition against the basis functions.

• `H` is the Dirichlet condition matrix representing hu = r.

• `R` is the Dirichlet condition vector for ```Hu = R```.

For more information on the reduced linear system form of the finite element matrices, see the `assempde` More About section, and the linear algebra approach detailed in Systems of PDEs.
