# evaluateReaction

Evaluate reaction forces on boundary

## Description

evaluates reaction forces on the boundary specified by
`F`

= evaluateReaction(`structuralresults`

,`RegionType`

,`RegionID`

)`RegionType`

and `RegionID`

. The function
uses the global Cartesian coordinate system. For transient and frequency response
structural models, `evaluateReaction`

evaluates reaction forces for
all time- and frequency-steps, respectively.

## Examples

### Reaction Forces on Restrained End of Prismatic Bar

Create a static structural model.

structuralmodel = createpde("structural","static-solid");

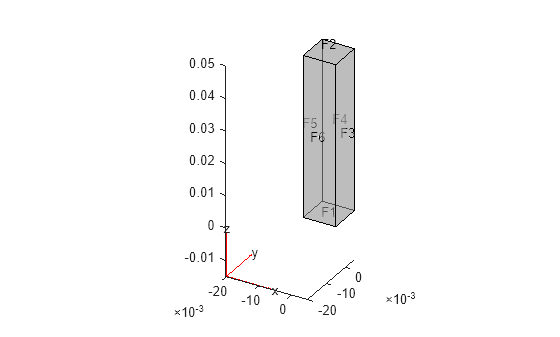

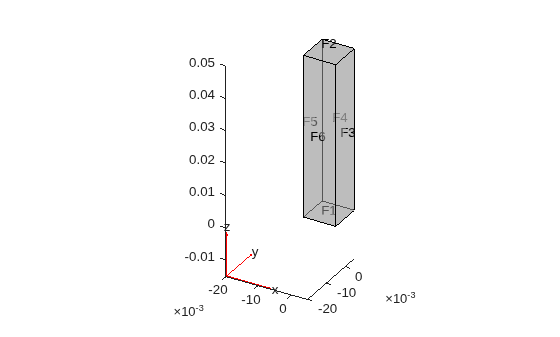

Create a cuboid geometry and include it in the model. Plot the geometry.

structuralmodel.Geometry = multicuboid(0.01,0.01,0.05); pdegplot(structuralmodel,"FaceLabels","on","FaceAlpha",0.5);

Specify Young's modulus and Poisson's ratio.

structuralProperties(structuralmodel,"YoungsModulus",210E9, ... "PoissonsRatio",0.3);

Fix one end of the bar and apply pressure to the opposite end.

structuralBC(structuralmodel,"Face",1,"Constraint","fixed")

ans = StructuralBC with properties: RegionType: 'Face' RegionID: 1 Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: "fixed" Radius: [] Reference: [] Label: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: [] TranslationalStiffness: [] Label: []

structuralBoundaryLoad(structuralmodel,"Face",2,"Pressure",100)

ans = StructuralBC with properties: RegionType: 'Face' RegionID: 2 Vectorized: 'off' Boundary Constraints and Enforced Displacements Displacement: [] XDisplacement: [] YDisplacement: [] ZDisplacement: [] Constraint: [] Radius: [] Reference: [] Label: [] Boundary Loads Force: [] SurfaceTraction: [] Pressure: 100 TranslationalStiffness: [] Label: []

Generate a mesh and solve the problem.

```
generateMesh(structuralmodel,"Hmax",0.003);
structuralresults = solve(structuralmodel);
```

Compute the reaction forces on the fixed end.

`reaction = evaluateReaction(structuralresults,"Face",1)`

`reaction = `*struct with fields:*
Fx: 1.2830e-05
Fy: 1.9739e-05
Fz: 0.0104

### Reaction Forces for 3-D Structural Dynamic Problem

Evaluate the reaction forces at the fixed end of a beam subject to harmonic excitation.

Create a transient dynamic model for a 3-D problem.

structuralmodel = createpde("structural","transient-solid");

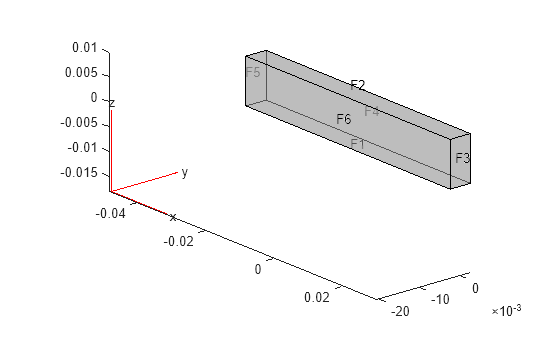

Create a geometry and include it in the model. Plot the geometry.

gm = multicuboid(0.06,0.005,0.01); structuralmodel.Geometry = gm; pdegplot(structuralmodel,"FaceLabels","on","FaceAlpha",0.5) view(50,20)

Specify Young's modulus, Poisson's ratio, and the mass density of the material.

structuralProperties(structuralmodel,"YoungsModulus",210E9, ... "PoissonsRatio",0.3, ... "MassDensity",7800);

Fix one end of the beam.

structuralBC(structuralmodel,"Face",5,"Constraint","fixed");

Apply a sinusoidal displacement along the *y*-direction on the end opposite the fixed end of the beam.

structuralBC(structuralmodel,"Face",3, ... "YDisplacement",1E-4, ... "Frequency",50);

Generate a mesh.

`generateMesh(structuralmodel,"Hmax",0.01);`

Specify the zero initial displacement and velocity.

structuralIC(structuralmodel,"Displacement",[0;0;0],"Velocity",[0;0;0]);

Solve the model.

tlist = 0:0.002:0.2; structuralresults = solve(structuralmodel,tlist);

Compute the reaction forces on the fixed end.

`reaction = evaluateReaction(structuralresults,"Face",5)`

`reaction = `*struct with fields:*
Fx: [101x1 double]
Fy: [101x1 double]
Fz: [101x1 double]

## Input Arguments

`structuralresults`

— Solution of structural analysis problem

`StaticStructuralResults`

object | `TransientStructuralResults`

object | `FrequencyStructuralResults`

object

Solution of the structural analysis problem, specified as a `StaticStructuralResults`

, `TransientStructuralResults`

, or `FrequencyStructuralResults`

object. Create
`structuralresults`

by using the `solve`

function.

**Example: **```
structuralresults =
solve(structuralmodel)
```

`RegionType`

— Geometric region type

`"Edge"`

for a 2-D model | `"Face"`

for a 3-D model

Geometric region type, specified as `"Edge"`

for a 2-D
model or `"Face"`

for a 3-D model.

**Example: **`evaluateReaction(structuralresults,"Face",2)`

**Data Types: **`char`

| `string`

`RegionID`

— Geometric region ID

vector of positive integers

Geometric region ID, specified as a vector of positive integers. Find the
region IDs by using `pdegplot`

.

**Example: **`evaluateReaction(structuralresults,"Face",2)`

**Data Types: **`double`

## Output Arguments

`F`

— Reaction forces

structure array

Reaction forces, returned as a structure array. The array fields represent the integrated reaction forces and surface traction vector, which are computed by using the state of stress on the boundary and the outward normal.

## Version History

**Introduced in R2017b**

### R2019b: Support for frequency response structural problems

For frequency response structural models, `evaluateReaction`

evaluates reaction forces for all frequency-steps.

### R2018a: Support for transient structural problems

For transient structural models, `evaluateReaction`

evaluates
reaction forces for all time-steps.
