Estimate direction of arrival using narrowband MUSIC algorithm for ULA

The `phased.MUSICEstimator`

System
object™ implements
the narrowband multiple signal classification (*MUSIC*)
algorithm for uniform linear arrays (ULA). MUSIC is a high-resolution
direction-finding algorithm capable of resolving closely-spaced signal
sources. The algorithm is based on eigenspace decomposition of the
sensor spatial covariance matrix.

To estimate directions of arrival (*DOA*):

Define and set up a

`phased.MUSICEstimator`

System object. See Construction.Call the

`step`

method to estimate the DOAs according to the properties of`phased.MUSICEstimator`

.

Alternatively, instead of using the `step`

method
to perform the operation defined by the System
object, you can
call the object with arguments, as if it were a function. For example, ```
y
= step(obj,x)
```

and `y = obj(x)`

perform
equivalent operations.

creates
a MUSIC DOA estimator System
object, `estimator`

= phased.MUSICEstimator`estimator`

.

creates
a System
object, `estimator`

= phased.MUSICEstimator(`Name`

,`Value`

)`estimator`

, with each specified
property Name set to the specified Value. You can specify additional
name-value pair arguments in any order as (`Name1`

,`Value1`

,...,`NameN`

,`ValueN`

).

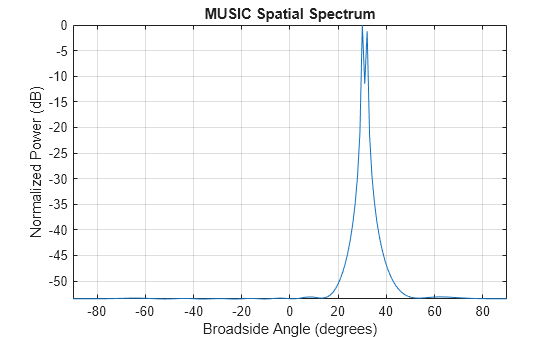

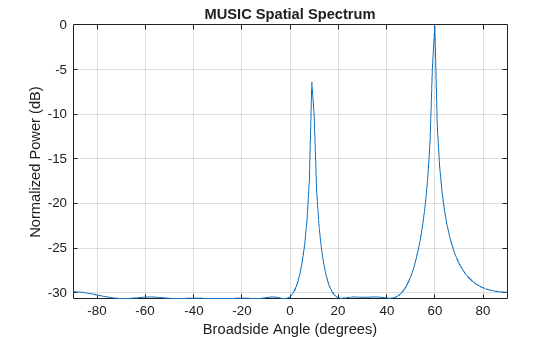

plotSpectrum | Plot MUSIC spectrum |

reset | Reset states of System object |

step | Estimate direction of arrival using MUSIC |

Common to All System Objects | |
---|---|

`release` | Allow System object property value changes |

[1] Van Trees, H. L. *Optimum Array Processing*.
New York: Wiley-Interscience, 2002.
