Uniform circular array
object™ creates a uniform circular array (UCA). A UCA is
formed from identical sensor elements equally spaced around a circle.
To compute the response for the array for specified directions:
Starting in R2016b, instead of using the
to perform the operation defined by the System
object, you can
call the object with arguments, as if it were a function. For example,
= step(obj,x) and
y = obj(x) perform
sUCA = phased.UCA creates a uniform circular
array (UCA) System
of five identical isotropic antenna elements,
The elements are equally spaced around a circle of radius 0.5 meters.
sUCA = phased.UCA( creates
sUCA, with each specified
property Name set to the specified Value. You can specify additional
name-value pair arguments in any order as (
sUCA = phased.UCA(
creates a UCA System
sUCA, with the
N and the
R. This syntax creates a UCA consisting
of isotropic antenna elements,
sUCA = phased.UCA(
creates a UCA System
sUCA, with the
R, and other specified property Names
set to the specified Values.
Element— Sensor array element
Sensor array element, specified as a Phased Array System Toolbox antenna or microphone element System object. You can specify antenna elements which do or do not support polarization.
NumElements— Number of array elements
Number of array elements, specified as an integer greater than one.
Radius— Array radius
Array radius, specified as a positive scalar in meters.
ArrayNormal— Array normal direction
Array normal direction, specified as one of
'z'. UCA elements lie in a plane orthogonal
to the array normal direction. Element boresight vectors lie in the
same plane and point radially outward from the origin.
|ArrayNormal Property Value||Element Positions and Boresight Directions|
|Array elements lie on the yz-plane. All element boresight vectors lie in the yz-plane and point outward from the array center.|
|Array elements lie on the zx-plane. All element boresight vectors lie in the zx-plane and point outward from the array center.|
|Array elements lie on the xy-plane. All element boresight vectors lie in the xy-plane and point outward from the array center.|
Taper— Element tapering
Element tapering or weighting, specified as a complex-valued
scalar, 1-by-N row vector, or N-by-1
column vector. The quantity N represents the number
of elements of the array. Tapers, also known as weights, are applied
to each sensor element in the sensor array and modify both the amplitude
and phase of the received data. If
'Taper' is a
scalar, the same taper value is applied to all element. If
a vector, each taper value is applied to the corresponding sensor
[1 2 3 2 1]
|collectPlaneWave||Simulate received plane waves|
|directivity||Directivity of uniform circular array|
|getElementNormal||Normal vectors for array elements|
|getElementPosition||Positions of array elements|
|getElementSpacing||Spacing between array elements|
|getNumElements||Number of elements in array|
|getTaper||Array element tapers|
|pattern||Plot UCA array pattern|
|patternAzimuth||Plot UCA array directivity or pattern versus azimuth|
|patternElevation||Plot UCA array directivity or pattern versus elevation|
|step||Output responses of array elements|
|viewArray||View array geometry|
|Common to All System Objects|
Allow System object property value changes
Create an 11-element uniform circular array (UCA) having a 1.5 m radius and operating at 500 MHz. The array consist of short-dipole antenna elements. First, display the vertical component of the response at 45 degrees azimuth and 0 degrees elevation. Then plot the azimuth and elevation directivities.
antenna = phased.ShortDipoleAntennaElement(... 'FrequencyRange',[50e6,1000e6],... 'AxisDirection','Z'); array = phased.UCA('NumElements',11,'Radius',1.5,'Element',antenna); fc = 500e6; ang = [45;0]; resp = array(fc,ang); disp(resp.V)
-1.2247 -1.2247 -1.2247 -1.2247 -1.2247 -1.2247 -1.2247 -1.2247 -1.2247 -1.2247 -1.2247

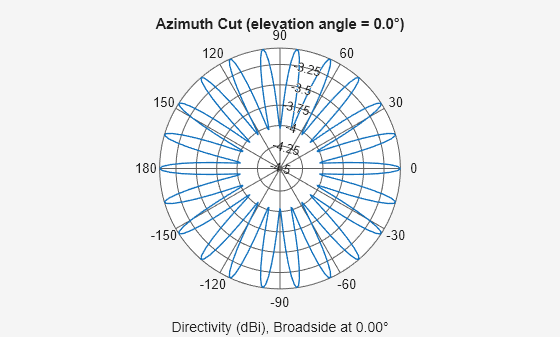

Display the azimuth directivity pattern at 500 MHz for azimuth angles between -180 and 180 degrees.
c = physconst('LightSpeed'); pattern(array,fc,[-180:180],0,'Type','directivity','PropagationSpeed',c)

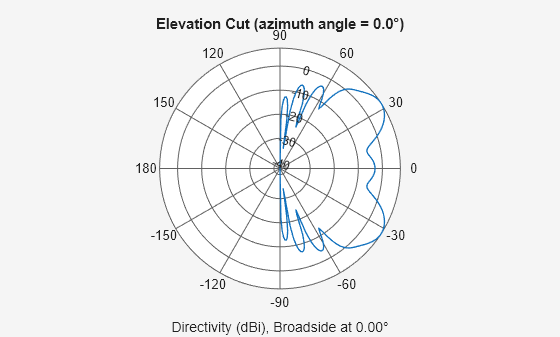

Display the elevation directivity pattern at 500 MHz for elevation angles between -90 and 90 degrees.
A UCA is formed from N identical sensor elements equally spaced around a circle of radius R. The circle lies in the xy-plane of the local coordinate system whose origin lies at the center of the circle. The positions of the elements are defined with respect to the local array coordinate system. The circular array lies in the xy-plane of the coordinate system. The normal to the UCA plane lies along the positive z-axis. The elements are oriented so that their main response directions (normals) point radially outward in the xy-plane.
If the number of elements of the array is odd, the middle element lies on the x-axis. If the number of elements is even, the midpoint between the two middle elements lies on the x-axis. For an array of N elements, the azimuth angle of the position of the nth element is given by
The azimuth angle is defined as the angle, in the xy-plane, from the x-axis toward the y-axis. The elevation angle is defined as the angle from the xy-plane toward the z-axis. The angular distance between any two adjacent elements is 360/N degrees. Azimuth angle values are in degrees. Elevation angles for all array elements are zero.
 Brookner, E., ed. Radar Technology. Lexington, MA: LexBook, 1996.
 Van Trees, H. Optimum Array Processing. New York: Wiley-Interscience, 2002, pp. 274–304.
Usage notes and limitations:
viewArray methods are not supported.
See System Objects in MATLAB Code Generation (MATLAB Coder).
