# radarmetricplot

## Syntax

## Description

`radarmetricplot(___,`

specifies additional `Name,Value`

)`Name,Value`

arguments.

**Example: **`'MaxRangeRequirement',125e3,'MetricName','Available SNR'`

specifies the maximum range requirement to be 125000 m, and the metric name to be
`'Available SNR'`

returns
the handle to the axes in the figure.`h`

= radarmetricplot(___)

## Examples

### Plot Available SNR and Detectability Factor

For a radar system, plot the available SNR and the detectability factor against the target range. Mark the required maximum range. Use the stoplight chart to assess the detection performance of the system at different ranges.

**Scenario Parameters**

Define the scenario parameters.

lambda = freq2wavelen(3e9); % Wavelength (m) Pt = 5e3; % Peak power (W) tau = 1.2e-5; % Pulse width (s) N = 24; % Number of received pulses SwerlingCase = 'Swerling1'; % Swerling case G = 40; % Antenna gain (dB) Pfa = 1e-6; % Pfa

**Requirements**

Specify the probability of detection to be 0.9 and the maximum range to be 125000 m.

Pd = 0.9; % Required Pd MaxRangeRq = 125e3; % Maximum range requirement (m)

Specify the range points to evaluate the radar equation.

R = (1:1e2:200e3).';

**Compute Performance Metric and Requirement**

Compute the available SNR and the detectability factor.

Compute the available SNR from the radar equation using the `radareqsnr`

function.

`SNRav = radareqsnr(lambda,R,Pt,tau,'Gain',G);`

Compute the detectability factor using the `detectability`

function.

DxObj = detectability(Pd,Pfa,N,SwerlingCase)

DxObj = 10.9850

**Plot Performance Metric and Requirement**

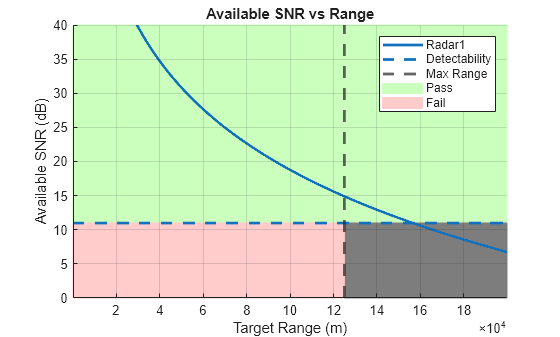

Plot the available SNR in dB and the detectability factor against the target range using the `radarmetricplot`

function. In order to plot, specify the `'MaxRangeRequirement' `

to be 125000 m. Set `'ShowStoplight'`

to `true`

to show a stoplight chart that color codes the area of the plot according to the specified requirements.

radarmetricplot(R,SNRav,DxObj,'MaxRangeRequirement',MaxRangeRq, ... 'MetricName','Available SNR','MetricUnit','dB',... 'RequirementName','Detectability','ShowStoplight',true) ylim([0 40])

## Input Arguments

`range`

— Target ranges

column vector

Target ranges at which the metric is computed, specified as a
length-*J* column vector, where *J* is the number of
target ranges.

**Data Types: **`double`

`metric`

— Radar performance metric values

matrix

Radar performance metric values, specified as a
*J*-by-*K* matrix, where *J* is the
length of the target range vector `range`

and *K* is
the number of radars.

**Data Types: **`double`

`objective`

— Objective requirement

scalar | vector | matrix

Objective requirement, specified as one of the following:

scalar –– The objective requirement is assumed to be constant across all ranges in

`range`

and equal for all*K*radars.1-by-

*K*vector –– The objective requirement is specified for each radar and is assumed to be constant for all ranges in`range`

.*J*-by-1 vector –– The objective requirement is specified for each range in`range`

and is assumed to be equal for all*K*radars.*J*-by-*K*matrix –– The objective requirement is specified for each range in`range`

and for each radar.

**Data Types: **`double`

`threshold`

— Threshold requirement

scalar | vector | matrix

Threshold requirement, specified as one of the following:

scalar –– The threshold requirement is assumed to be constant across all ranges in

`range`

and equal for all*K*radars.1-by-

*K*vector –– The threshold requirement is specified for each radar and is assumed to be constant for all ranges in`range`

.*J*-by-1 vector –– The threshold requirement is specified for each range in`range`

and is assumed to be equal for all*K*radars.*J*-by-*K*matrix –– The threshold requirement is specified for each range in`range`

and for each radar.

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'MaxRangeRequirement',125e3,'MetricName','Available SNR'`

specifies the maximum range requirement to be 125000 m, and the metric name to be
`'Available SNR'`

`MaxRangeRequirement`

— Maximum range requirement

scalar | vector

Maximum range requirement, specified as one of the following:

scalar –– Specifies the objective requirement on the maximum range.

two-element vector –– Specifies both the objective and the threshold requirements in the [

*objective**threshold*] format.

**Data Types: **`double`

`ShowStoplight`

— Show stoplight chart

`1`

| `0`

Specify whether to show the stoplight chart that color codes the area of the plot according to the specified requirements, specified as a logical scalar value.

If you only specify `objective`

, the function divides the area
of the plot into two colored zones along the metric axis. To satisfy the requirement,
the function by default assumes that the metric must be greater than or equal to the
objective. In this case, the area above `objective`

is marked
`Pass`

and is colored green, while the area below
`objective`

is marked `Fail`

and is colored
red.

To indicate the opposite case when the metric must be below the objective to
satisfy the requirement, specify the `threshold`

input explicitly
as `Inf`

. On the resultant stoplight chart, the objective requirement
is satisfied at the ranges where the `metric`

curve is in the
`Pass`

zone. At the ranges where the curve passes through the
`Fail`

zone, the system violates the objective requirement.

If you specify a finite `threshold`

, the area between
`objective`

and `threshold`

is colored yellow
and marked `Warn`

. At the ranges where the metric passes through the
`Warn`

zone, the objective requirement is violated, while the
threshold requirement is still satisfied. The stoplight chart can be displayed only
when the same requirements are specified for all radars
(`objective`

and `threshold`

are scalars or
length-*J* column vectors). Otherwise, this name-value pair is
ignored.

The value of the `'MaxRangeRequirement'`

name-value pair limits
the `Fail`

and the `Warn`

zones along the range
axis. Both the `Fail`

and the `Warn`

zones extend to
the objective value of the maximum range requirement when only the objective is
provided. If both the objective and the threshold requirements are specified, the
`Fail`

zone extends to the threshold requirement while the
`Warn`

zone extends to the objective.

**Data Types: **`logical`

`RadarName`

— Names of radar systems

cell array of character vectors | string array

Names of the radar systems, specified as a length-*K* cell array
of character vectors or a string array, where *K* is the number of
radars. The radar names are used to augment the corresponding legend entries. When not
specified, the default name `'Radar`

is
used for the * k*'

*k*th radar system.

**Data Types: **`string`

| `char`

| `cell`

`MetricName`

— Name of radar performance metric

character vector | string scalar

Name of radar performance metric, specified as a character vector or a string
scalar. When not specified, the default name `'Metric'`

is
used.

**Data Types: **`char`

| `string`

`RequirementName`

— Name of requirement

character vector | string scalar

Name of requirement, specified as a character vector or a string scalar. When not
specified, the function uses the default name `'Requirement'`

.

**Data Types: **`char`

| `string`

`RangeUnit`

— Units for range values

`'m'`

(default) | `'km'`

| `'mi'`

`'nmi'`

| `'ft'`

Units for range values in vector `range`

and for the value of
`'MaxRangeRequirement'`

, specified as one of the following:

`'m'`

–– Meters`'km'`

–– Kilometers`'mi'`

–– Miles`'nmi'`

–– Nautical mile`'ft'`

–– Feet

`MetricUnit`

— Units for metric values

`''`

(default) | character vector | string scalar

Units for metric values, specified as a character vector or a string scalar.

**Data Types: **`char`

| `string`

`Parent`

— Plot axes

current axes (default) | `Axes`

object

Handle to plot axes, specified as an `Axes`

object. The default
value is the current axes, which can be specified using `gca`

.

## Output Arguments

`h`

— Handle to axes in figure

`Axes`

object

Handle to the axes displayed in the figure, returned as an `Axes`

object.

## More About

### Stoplight Chart

A radar system must meet a set of performance requirements that depend on the environment and scenarios in which the system is intended to operate. A number of such requirements can be fairly large and a design that satisfies all of them might be impractical. In this case a tradeoff analysis is applied. A subset of the requirements is satisfied at the expense of accepting lower values for the rest of the metrics. Such tradeoff analysis can be facilitated by specifying multiple requirement values for a single metric.

The requirement for each metric is specified as a pair of values:

*Objective*— The desired level of the performance metric*Threshold*— The value of the metric below which the system's performance is considered unsatisfactory

The region between the Threshold and the Objective values is the trade-space. It defines a margin by which a metric can be below the Objective value while the system is still considered to have a satisfactory performance.

A *stoplight chart* color-codes the status of the performance metric for
a radar system based on the specified requirements. The plot is divided into three zones:

A

*Pass*zone, colored green — At the ranges where the curve is in the Pass zone, the system performance satisfies the Objective value of the requirement.A

*Warn*zone, colored yellow — At the ranges where the curve passes through the Warn zone, the system performance violates the Objective value of the specified requirement but still satisfies the Threshold value.A

*Fail*zone, colored red — At the ranges where the curve passes through the Fail zone, the system performance violates the Threshold value of the specified requirement.

## References

[1] Charles S. Wasson. *System engineering analysis, design, and development: Concepts, principles,
and practices*. John Wiley & Sons, 2015.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

## Version History

**Introduced in R2021a**
