The rigid body tree model is a representation of a robot structure. You can use it to
represent robots such as manipulators or other kinematic trees. Use
rigidBodyTree objects to create these models.
A rigid body tree is made up of rigid bodies (
rigidBody) that are attached via joints (
rigidBodyJoint). Each rigid body has a joint that defines how that body moves
relative to its parent in the tree. Specify the transformation from one body to the next by
setting the fixed transformation on each joint (
You can add, replace, or remove bodies from the rigid body tree model. You can also replace
joints for specific bodies. The
rigidBodyTree object maintains the
relationships and updates the
rigidBody object properties to reflect this

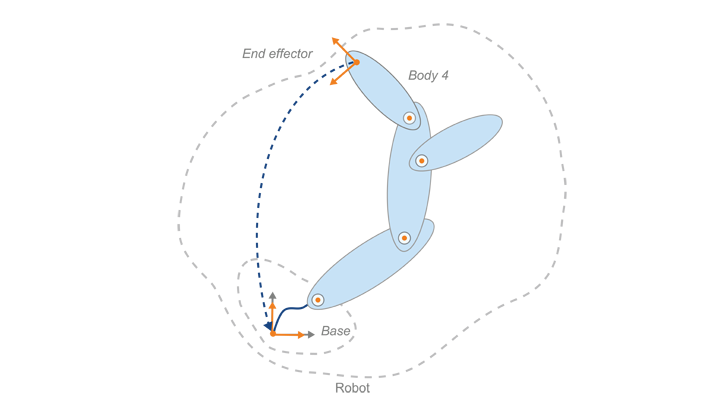

relationship. You can also get transformations between different body frames using
Every rigid body tree has a base. The base defines the world
coordinate frame and is the first attachment point for a rigid body.
The base cannot be modified, except for the
You can do so by modifying the
of the rigid body tree.
The rigid body is the basic building block of rigid body tree model and is created using
rigidBody. A rigid body, sometimes called a
link, represents a solid body that cannot deform. The distance between any two points on a
single rigid body remains constant.
When added to a rigid body tree with multiple bodies, rigid
bodies have parent or children bodies associated with them (
The parent is the body that this rigid body is attached to, which
can be the robot base. The children are all the bodies attached to
this body downstream from the base of the rigid body tree.
Each rigid body has a coordinate frame associated with them, and contains a
Each rigid body has one joint, which defines the motion of that rigid body relative to its
parent. It is the attachment point that connects two rigid bodies in a robot model. To
represent a single physical body with multiple joints or different axes of motion, use
rigidBodyJoint object supports fixed,
revolute, and prismatic joints.

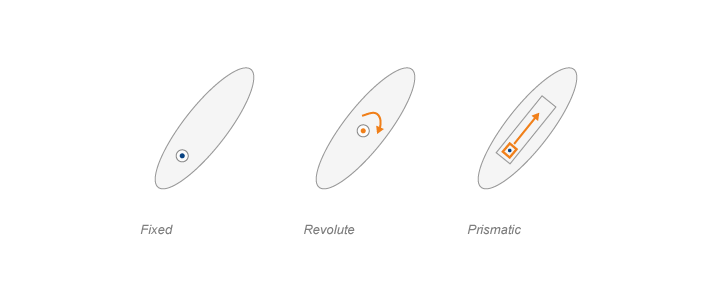

These joints allow the following motion, depending on their type:
'fixed' — No motion. Body is rigidly connected to its
'revolute' — Rotational motion only. Body rotates around
this joint relative to its parent. Position limits define the minimum and maximum
angular position in radians around the axis of motion.
'prismatic' — Translational motion only. The body moves
linearly relative to its parent along the axis of motion.
Each joint has an axis of motion defined by the
property. The joint axis is a 3-D unit vector that either defines the axis of rotation
(revolute joints) or axis of translation (prismatic joints). The
HomePosition property defines the home position for that specific
joint, which is a point within the position limits. Use
homeConfiguration to return the home configuration for the robot, which is a
collection of all the joints home positions in the model.
Joints also have properties that define the fixed transformation between parent and children
body coordinate frames. These properties can only be set using the
setFixedTransform method. Depending on your method of inputting transformation
parameters, either the
ChildToJointTransform property is set using this method. The other

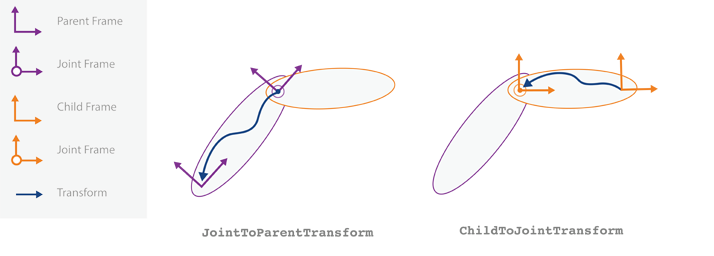

property is set to the identity matrix. The following images depict what each property
where the joint of the child body is in relationship to the parent
body frame. When
JointToParentTransform is an identity
matrix, the parent body and joint frames coincide.
where the joint of the child body is in relationship to the child
body frame. When
ChildToJointTransform is an identity
matrix, the child body and joint frames coincide.
The actual joint positions are not part of this
The robot model is stateless. There is an intermediate transformation
between the parent and child joint frames that defines the position
of the joint along the axis of motion. This transformation is defined
in the robot configuration. See Robot Configurations.
After fully assembling your robot and defining transformations between different bodies, you can create robot configurations. A configuration defines all the joint positions of the robot by their joint names.
homeConfiguration to get the
HomePosition property of each joint and create the home
Robot configurations are given as an array of structures.
config = homeConfiguration(robot)
config = 1×6 struct array with fields: JointName JointPosition
ans = struct with fields: JointName: 'jnt1' JointPosition: 0
You can also generate a random configuration that obeys all the joint limits using
To get the robot configuration with a specified end-effector pose, use
inverseKinematics. This algorithm solves for the required joint angles to achieve
a specific pose for a specified rigid body.
