slreportgen.report.SystemHierarchy Class
Namespace: slreportgen.report
Superclasses: slreportgen.report.Reporter
System hierarchy reporter
Description
Creates a system hierarchy reporter that generates a nested list of the subsystems of a Simulink® model or subsystem in a report.
Note
To use a system hierarchy reporter in a report, you must create the report using the
slreportgen.report.Report
class or subclass.
The slreportgen.report.SystemHierarchy
class is a handle
class.
Creation
Description
rptr = slreportgen.report.SystemHierarchy
creates
an empty system hierarchy reporter based on a default template. Customize the content and
format of the generated list by using the reporter properties. Before you add the reporter
to a report, you must specify a model or subsystem in the Source
property of the reporter. Adding an empty reporter to a report produces an error.
rptr = slreportgen.report.SystemHierarchy(
creates a system hierarchy reporter for the model or subsystem specified by
source
)source
. See the Source
property.
sets the reporter properties using name-value arguments. You can specify multiple name-value arguments in any order.rptr
= slreportgen.report.SystemHierarchy(Name=Value
)
Properties
Simulink model or subsystem, specified as a character vector or string scalar that contains the path to the model or subsystem, or as a handle to the model or subsystem.
Attributes:
NonCopyable | true |
Maximum number of levels of ancestors of the source subsystem to include in the
generated list, specified as a nonnegative integer scalar. For example, if
MaxAncestorLevel
is 2
, the list includes the
source and up to two levels of ancestors. If MaxAncestorLevel
is
Inf
, the default value, the list includes all ancestors. If
MaxAncestorLevel
is zero, the list does not include
ancestors.
Data Types: double
Maximum number of levels of descendants of the source model or subsystem to include
in the generated list, specified as a nonnegative integer scalar. For example, if
MaxDescendantLevel
is 2
, the list includes the
source and up to two levels of descendants. If MaxDescendantLevel
is
Inf
, the default value, the list includes all descendants. If
MaxDescendantLevel
is zero, the list does not include
descendants.
Data Types: double
Whether to include peers of the source subsystem in the generated list, specified as
true
or false
.
Data Types: logical
Whether to emphasize the source model or subsystem in the generated list, specified
as true
or false
. If
EmphasizeSource
is true
, the name of the source
model or subsystem is formatted according to the TextFormatter
property. Otherwise, it is formatted like the other items in the list.
Data Types: logical
List formatter that formats the generated list, specified as an mlreportgen.dom.UnorderedList
object or an mlreportgen.dom.OrderedList
object. The default value of this property is an object of mlreportgen.dom.UnorderedList
. To customize the list formatting, modify the list object properties or replace the list object with a customized list object that does not contain list items.
Text formatter object that formats the name of the source model or subsystem in the
generated list, specified as an mlreportgen.dom.Text
object. This property
applies only if the EmphasizeSource
property is
true
. The initial value of the
SourceTextFormatter
property is an mlreportgen.dom.Text
object with the Bold
and
Italic
properties set to true
. To customize
the appearance of the name in the generated list, modify the
mlreportgen.dom.Text
object properties or replace the object with a
customized mlreportgen.dom.Text
object. If you add text to the default or
replacement text object, the text appears in front of the source name in the generated
report.
Whether the generated list of descendants of the source system includes masked
subsystems, specified as true
or false
. If
IncludeMaskedSubsystems
is true
, the list
includes masked subsystems and their descendant subsystems, as long as the number of
levels below the source subsystem is less than or equal to the value of the
MaxDescendantLevel
property.
To enable the system hierarchy reporter to link masked subsystems to the
corresponding diagrams in the report, in the diagram reporter, set the
MaskedSystemLinkPolicy
property to
'system'
.
Data Types: logical
Whether the generated list of descendants of the source system includes referenced
models, specified as true
or false
. If
IncludeReferencedModels
is true
, the list
includes referenced models and their descendant subsystems, as long as the number of
levels below the source subsystem is less than or equal to the value of the
MaxDescendantLevel
property.
Data Types: logical
Whether the generated list of descendants of the source system includes referenced
subsystems, specified as true
or false
. If
IncludeReferencedSubsystems
is true
, the list
includes referenced subsystems and their descendant subsystems, as long as the number of
levels below the source subsystem is less than or equal to the value of the
MaxDescendantLevel
property.
Data Types: logical
Whether the generated list of descendants of the source system includes subsystems
that link to a Simulink library subsystem, specified as true
or
false
. The list includes a linked subsystem or one of its
descendant subsystems, only if all of these conditions are true:
The value of
IncludeSimulinkLibraryLinks
istrue
.The subsystem is not masked, or the subsystem is masked and the value of the
IncludeMaskedSubsystems
property istrue
.The number of levels below the source subsystem is less than or equal to the value of the
MaxDescendantLevel
property.
Data Types: logical
Whether the generated list of descendants of the source system includes subsystems
that link to a user-defined library subsystem, specified as true
or
false
. The list includes a linked subsystem, or one of its
descendant subsystems, only if all of these conditions are true:
The value of
IncludeUserLibraryLinks
istrue
.The subsystem is not masked, or the subsystem is masked and the value of the
IncludeMaskedSubsystems
property istrue
.The number of levels below the source subsystem is less than or equal to the value of the
MaxDescendantLevel
property.
Data Types: logical
Variants of a variant block to include in the generated list of descendants of the source system, specified as one of these values:
Value | Description |
---|---|
"Active" | Active variants |
"All" | All variants |
"ActivePlusCode" | Active variants and code variants |
The list includes the variants only if the number of levels below the source
subsystem is less than or equal to the value of the
MaxDescendantLevel
property.
Data Types: char
| string
Source of the template for this reporter, specified in one of these ways:
Character vector or string scalar that specifies the path of the file that contains the template for this reporter
Reporter or report whose template this reporter uses or whose template library contains the template for this reporter
Document Object Model (DOM) document or document part whose template this reporter uses or whose template library contains the template for this reporter
The specified template must be the same type as the report to which you
append this reporter. For example, for a Microsoft® Word report, TemplateSrc
must be a Word reporter template.
If the TemplateSrc
property is empty, this reporter uses the
default reporter template for the output type of the report.
Attributes:
GetAccess | public |
SetAccess | public |
NonCopyable | true |
Name of the template for this reporter, specified as a character vector or string scalar.
The template for this reporter must be in the template library of the template specified by
the TemplateSrc
property of this reporter.
Attributes:
GetAccess | public |
SetAccess | public |
Data Types: char
| string
Hyperlink target for this reporter, specified as a character vector or string scalar
that specifies the link target ID, or an mlreportgen.dom.LinkTarget
object. A character vector or string scalar
value converts to a LinkTarget
object. The link target immediately
precedes the content of this reporter in the output report.
Attributes:
GetAccess | public |
SetAccess | public |
Methods
slreportgen.report.SystemHierarchy.createTemplate | Create system hierarchy reporter template |
slreportgen.report.SystemHierarchy.customizeReporter | Create custom system hierarchy reporter class |
slreportgen.report.SystemHierarchy.getClassFolder | Get location of system hierarchy reporter class definition file |
copy | Create copy of a Simulink reporter object and make deep copies of certain property values |
getImpl | Get implementation of reporter |
Examples
Include the system hierarchy of the sldemo_fuelsys
model in a report by adding an slreportgen.report.SystemHierarchy
reporter to a report generation program. Generate the model diagrams by adding an slreportgen.finder.DiagramFinder
object. The system hierarchy reporter generates links from subsystems in the nested list to the corresponding diagrams.
Import the API packages.
import slreportgen.report.* import mlreportgen.report.* import mlreportgen.dom.*
Load the model.
model = "sldemo_fuelsys";
load_system(model);
Create a report.
rpt = slreportgen.report.Report("output","pdf");
Create a chapter reporter.
chapter = Chapter("System Hierarchy for the " + model + " Model");
Create a System Hierarchy reporter for the model.
rptr = SystemHierarchy(model);
Add the System Hierarchy reporter to the chapter. Then add the chapter to the report.
add(chapter, rptr); add(rpt, chapter);
Find the diagrams for the subsystems.
finder = slreportgen.finder.DiagramFinder(model); while hasNext(finder) result = next(finder); ch = Chapter(result.Name); add(ch, result); add(rpt, ch); end
Close and view the output report.
close(rpt); close_system(model); rptview(rpt);

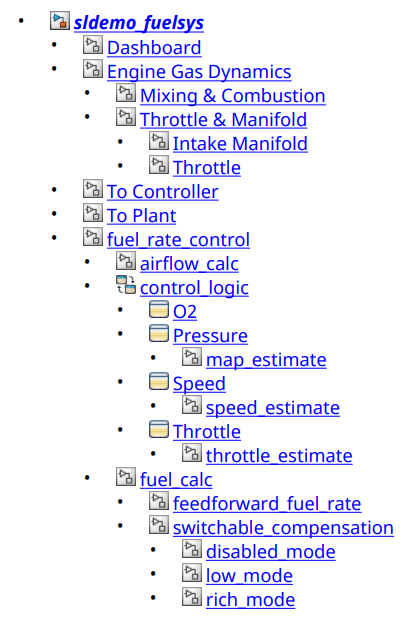

In the generated report, the system hierarchy lists the subsystems under the sldemo_fuelsys
model.
To see the diagram corresponding to a subsystem, click the subsystem in the list.
Version History
Introduced in R2019b
