lutzLMSChannel
Description
The lutzLMSChannel
System object™ filters a real or complex input signal through a Lutz land mobile-satellite
(LMS) frequency-flat fading communication channel, as defined in [1].
To filter an input signal through a Lutz LMS time-varying channel:
Create the
lutzLMSChannel
object and set its properties.Call the object with arguments, as if it were a function.
To learn more about how System objects work, see What Are System Objects?
Creation
Description
creates a Lutz LMS
frequency-flat fading channel System object. Use this channel to simulate an LMS time-varying channel for a single
geostationary satellite operating in the L-band.chan
= lutzLMSChannel
The default System object parameters are set to a scenario in which the mobile is moving at a constant speed of 3 km/hr on a highway with a conical spiral antenna operating at a 1.54 GHz carrier frequency and a satellite elevation angle of 34 degrees, as specified in [1].
sets properties using one or more
name-value arguments. For example, chan
= lutzLMSChannel(Name
=Value
)SampleRate=20e3
sets the input
signal sample rate to 20e3
.
Properties
Unless otherwise indicated, properties are nontunable, which means you cannot change their
values after calling the object. Objects lock when you call them, and the
release
function unlocks them.
If a property is tunable, you can change its value at any time.
For more information on changing property values, see System Design in MATLAB Using System Objects.
SampleRate
— Input signal sample rate
7.68e6
(default) | positive scalar
Input signal sample rate in Hz, specified as a positive scalar.
Data Types: double
InitialState
— Initial state of channel
"Good"
(default) | "Bad"
Initial state of the channel, specified as "Good"
or
"Bad"
.
Tunable: Yes
Data Types: char
| string
KFactor
— K-factor of Rician fading channel
11.7
(default) | real scalar
K-factor of the Rician fading channel in dB, specified as a real scalar. This property applies only when the channel state is good.
Tunable: Yes
Data Types: double
LogNormalFading
— Fading parameters of Rayleigh log-normal fading channel
[-8.8 3.8]
(default) | two-element vector
Fading parameters of the Rayleigh log-normal fading channel in dB, specified as a two-element vector. The first element corresponds to the mean power level due to shadowing. Nominally, the mean power level due to shadowing is a negative value. The second element corresponds to the standard deviation of power level due to shadowing.
This property applies only when the channel state is bad.
Tunable: Yes
Data Types: double
StateDurationDistribution
— Distribution type used for state duration
"Exponential"
(default) | "None"
Distribution type used for state duration, specified as one of these values.
"Exponential"
— The duration of each state follows an exponential distribution. The MeanStateDuration property specifies the mean duration of each state."None"
— The MeanStateDuration property directly specifies the duration of each state.
Tunable: Yes
Data Types: char
| string
MeanStateDuration
— Mean duration of each state
[1800 14.4]
(default) | two-element vector
Mean duration of each state in seconds, specified as a two-element vector. The first element corresponds to the mean duration of the good state, and the second element corresponds to the mean duration of the bad state. Both the elements must be nonzero values.
Tunable: Yes
Data Types: double
MaximumDopplerShift
— Maximum Doppler shift due to mobile movement
4.2807
(default) | nonnegative scalar
Maximum Doppler shift due to mobile movement in Hz, specified as a nonnegative scalar.
When this property value is 0, the channel is static. The default value of 4.2807 Hz corresponds to a mobile speed of 3 km/hr at a carrier frequency of 1.54 GHz.
Data Types: double
ChannelFiltering
— Channel filtering
true
or 1
(default) | false
or 0
Channel filtering, specified as one of these logical values.
1
(true
) — The object accepts an input signal and produces a filtered output signal, in addition to the channel path gains, sample times, and state series.0
(false
) — The object does not accept an input signal, produces no filtered output signal, and outputs only channel path gains, sample times, and state series. You must specify the duration of the fading process by using the NumSamples property, and the sampling rate by using the SampleRate property.
Data Types: logical
NumSamples
— Number of time samples
7680
(default) | nonnegative integer
Number of time samples used to set the duration of the fading process realization, specified as a nonnegative integer.
Tunable: Yes
Dependencies
To enable this property, set ChannelFiltering property to false
.
Data Types: double
OutputDataType
— Data type of step method outputs
"double"
(default) | "single"
Data type of step method outputs, specified as one of these values.
"double"
"single"
Dependencies
To enable this property, set ChannelFiltering property to false
.
Data Types: char
| string
FadingTechnique
— Channel model fading technique
"Filtered Gaussian noise"
(default) | "Sum of sinusoids"
Channel model fading technique, specified as "Filtered Gaussian noise"
or "Sum of sinusoids"
.
Data Types: char
| string
NumSinusoids
— Number of sinusoids used
48
(default) | positive integer
Number of sinusoids used to generate the Doppler fading samples, specified as a positive integer.
Dependencies
To enable this property, set the FadingTechnique property to "Sum of
sinusoids"
.
Data Types: double
| uint16
RandomStream
— Source of random number stream
"Global stream"
(default) | "mt19937ar with seed"
Source of the random number stream, specified as "Global stream"
or "mt19937ar with seed"
.
When you specify
"Global stream"
, the object uses the current global random number stream for uniformly and normally distributed random number generation. In this case, thereset
object function resets only the filters.When you specify
"mt19937ar with seed"
, the object uses the mt19937ar algorithm for uniformly and normally distributed random number generation. In this case, thereset
object function resets the filters and reinitializes the random number stream to the value of the Seed property.
Data Types: char
| string
Seed
— Initial seed
73
(default) | nonnegative integer
Initial seed of the mt19937ar random number stream generator algorithm, specified as
a nonnegative integer. When you call the reset
object function, it reinitializes the mt19937ar random number stream
to the Seed
value.
Dependencies
To enable this property, set the RandomStream property to "mt19937ar with
seed"
.
Data Types: double
| uint32
Visualization
— Channel visualization
"Off"
(default) | "Impulse response"
| "Frequency response"
| "Impulse and frequency responses"
| "Doppler spectrum"
Channel visualization, specified as one of these options.
"Off"
"Impulse response"
"Frequency response"
"Impulse and frequency responses"
"Doppler spectrum"
When you set this property to enable the visualization, selected channel characteristics are animated in separate figures, with each System object call.
For more information, see Channel Visualization.
Data Types: char
| string
TimeShare
— Time share of channel in good and bad states
[0.9921 0.0079]
(default) | two-element vector
This property is read-only.
Time share of the channel in good and bad states, returned as a two-element vector. The first element is the ratio of the good state mean duration to the sum of good and bad state mean durations. The second element is the ratio of the bad state mean duration to the sum of good and bad state mean durations.
Data Types: double
Usage
Description
[
produces path gains, pathgains
,sampletimes
,stateseries
] = chan()pathgains
, sample times,
sampletimes
, and state series, stateseries
for
a Lutz LMS frequency-flat fading channel.
In this case, the System object acts as a source of path gains, sample times, and state series.
Specify the duration of the fading process by using the NumSamples
property. Specify the data type of pathgains
and
sampletimes
using the OutputDataType property.
Note
This syntax is applicable when you set the ChannelFiltering property to false
.
[
filters the input signal, y
,pathgains
,sampletimes
,stateseries
] = chan(x
)x
, through a Lutz LMS frequency-flat fading
channel, and returns the output channel-impaired signal in y
, in
addition to the outputs in the previous syntax.
Note
This syntax is applicable when you set the ChannelFiltering property to true
.
Input Arguments
x
— Input signal
NS-by-1 vector
Input signal, specified as an NS-by-1 vector, where NS is the number of input samples.
Data Types: single
| double
Complex Number Support: Yes
Output Arguments
y
— Output signal
NS-by-1 vector
Output signal, returned as an NS-by-1
vector of complex values with the same data precision and length as the input signal
x
.
NS is the number of input
samples.
Data Types: single
| double
Complex Number Support: Yes
pathgains
— Channel path gains of fading process
NS-by-1 vector
Channel path gains of fading process, returned as an NS-by-1 vector of complex values.
When you set the ChannelFiltering property to
true
,pathgains
is of the same data precision as the input signalx
, and NS is the number of input samples.When you set the ChannelFiltering property to
false
,pathgains
is of the same data precision as the OutputDataType property and NS is equal to the NumSamples property.
Data Types: single
| double
Complex Number Support: Yes
sampletimes
— Sample times of channel snapshots
NS-by-1 vector
Sample times of channel snapshots, returned as an NS-by-1 vector.
When you set the ChannelFiltering property to
true
,sampletimes
is of the same data precision as the input signalx
, and NS is the number of input samples.When you set the ChannelFiltering property to
false
,sampletimes
is of the same data precision as the OutputDataType property and NS is equal to the NumSamples property.
Data Types: single
| double
stateseries
— State series of channel
NS-by-1 vector
State series of the channel, returned as an
NS-by-1 vector. Each value of this vector
describes the state in which channel is present for that channel snapshot. A value of
0
represents bad state. A value of 1
represents good state. A value between 0 and 1 represents a state transition.
When you set the ChannelFiltering property to
true
, NS is the number of input samples.When you set the ChannelFiltering property to
false
, NS is equal to the NumSamples property.
stateseries
is of the data type logical.
Data Types: logical
Object Functions
To use an object function, specify the
System object as the first input argument. For
example, to release system resources of a System object named obj
, use
this syntax:
release(obj)
Specific to lutzLMSChannel
info | Characteristic information about object |
Examples
Create and Configure Lutz LMS Channel
Define the channel configuration using a lutzLMSChannel
System object and set the properties to these values.
Symbol rate: 4800 symbols/sec (Assume sample rate to be equal to symbol rate)
Product of the maximum Doppler frequency and symbol duration that indicates a normalized measure of channel state time variations (fd*T): 0.01
Rice factor (K-factor): 20 dB
Fading parameters of Rayleigh log-normal fading channel in bad state: mean (mu): -20.8 dB and standard deviation (sigma): -0.09 dB
Fading signal (Doppler Spectrum): Jakes model with sum of sinusoids technique (10 sinusoids)
Good state time-share parameter (X): 0.9
Mean duration of shadowing period (Ct): 10 sec
chan = lutzLMSChannel; chan.SampleRate = 4800; % Assuming same as symbol rate chan.MaximumDopplerShift = 48; % fd = 0.01/T = 0.01*SymbolRate chan.KFactor = 20; % Rice factor chan.LogNormalFading = [-20.8 -0.09]; % [mu sigma] chan.MeanStateDuration = [9 1]; % [X*Ct (1-X)*Ct]; chan.FadingTechnique = "Sum of sinusoids"; chan.NumSinusoids = 10;
Display the channel characteristics.
disp(chan)
lutzLMSChannel with properties: SampleRate: 4800 InitialState: "Good" KFactor: 20 LogNormalFading: [-20.8000 -0.0900] StateDurationDistribution: "Exponential" MeanStateDuration: [9 1] MaximumDopplerShift: 48 ChannelFiltering: true Use get to show all properties
Model Lutz LMS Channel Using Lutz IEEE Paper Configuration
Model the Lutz LMS channel using the configuration entries from the Lutz IEEE paper (Table II), as defined in the IEEE Transactions on Vehicular Technology article (stated in the References section).
Define the channel configuration using a lutzLMSChannel
System object and set the properties to these values.
Rician K-factor (k): 10.2
Fading parameters of Rayleigh log-normal fading channel in bad state: mean (mu): -8.9 dB and standard deviation (sig): 5.1 dB
Mean duration of good state, in meters (Dg): 90
Mean duration of bad state, in meters (Db): 29
Assume mobile speed is 10 km/hr at 1.54 GHz carrier frequency
v = 10; % Mobile speed in km/hr v_ms = (v*1000/3600); % Mobile speed in m/s fc = 1.54e9; % Carrier frequency in Hz c = physconst("lightspeed"); % Speed of light in m/s fd = v_ms/c*fc; % Mobile maximum Doppler frequency in Hz k = 10.2; % Rician K-factor in dB mu = -8.9; % Bad state mean sig = 5.1; % Bad state standard deviation % Get the mean state duration in seconds Dg = 90; % Mean duration of good state in m Db = 29; % Mean duration of bad state in m Dg_sec = Dg/v_ms; % Mean duration of good state in sec Db_sec = Db/v_ms; % Mean duration of bad state in sec chan = lutzLMSChannel; chan.MaximumDopplerShift = fd; chan.KFactor = k; chan.LogNormalFading = [mu sig]; chan.MeanStateDuration = [Dg_sec Db_sec];
Display the channel characteristics.
disp(chan)
lutzLMSChannel with properties: SampleRate: 7680000 InitialState: "Good" KFactor: 10.2000 LogNormalFading: [-8.9000 5.1000] StateDurationDistribution: "Exponential" MeanStateDuration: [32.4000 10.4400] MaximumDopplerShift: 14.2691 ChannelFiltering: true Use get to show all properties

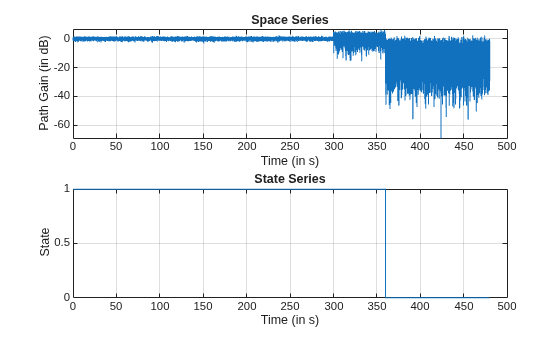

Plot Space Series and State Series for Lutz LMS Channel
Create and Configure the Channel
Create a Lutz LMS channel using lutzLMSChannel
System object.
Consider a scenario in which a mobile is moving with variable velocity and a maximum Doppler shift (fd) of 25 Hz. This is the behavior of the mobile during the scenario:
First 5 minutes: Good state with a Rice factor of 20 dB
Next 1 minutes: Good state with a Rice factor of 8 dB
Next 2 minutes: Bad state with the mean of fading level (mu) at -8 dB and standard deviation of fading level (sigma) at 2 dB
fd = 25; % In Hz TimeDurInMins = [5 1 2]; % In minutes TimeDurInSec = TimeDurInMins*60; % In seconds riceFactor = [20 8 nan]; % In dB mu = [nan nan -8]; % In dB sigma = [nan nan 2]; % In dB sampleRate = 1000; % In Hz state = ["Good" "Good" "Bad"];
Create the System object and configure its properties to these values.
Distribution type used for state duration: None
Random stream: mt19937ar with seed
Channel filtering: 0 (Disabled)
% Initialize the channel chan = lutzLMSChannel; chan.InitialState = "Good"; chan.StateDurationDistribution = "None"; chan.RandomStream = "mt19937ar with seed"; chan.ChannelFiltering = 0; chan.SampleRate = sampleRate; chan.MaximumDopplerShift = fd;
Display the channel characteristics.
disp(chan)
lutzLMSChannel with properties: SampleRate: 1000 InitialState: "Good" KFactor: 11.7000 LogNormalFading: [-8.8000 3.8000] StateDurationDistribution: "None" MeanStateDuration: [1800 14.4000] MaximumDopplerShift: 25 ChannelFiltering: false NumSamples: 7680 OutputDataType: "double" Use get to show all properties
Generate Lutz LMS Channel
Simulate the channel for all three cases of the scenario.
numChanges = length(TimeDurInSec); pathGainsT = cell(numChanges,1); stateSeriesT = cell(numChanges,1); sampleTimesT = cell(numChanges,1); % Run the channel across different cases for loopIdx = 1:length(TimeDurInSec) chan.InitialState = state(loopIdx); if strcmpi(chan.InitialState,"Good") chan.MeanStateDuration = [TimeDurInSec(loopIdx) 0]; chan.KFactor = riceFactor(loopIdx); else chan.MeanStateDuration = [0 TimeDurInSec(loopIdx)]; chan.LogNormalFading = [mu(loopIdx) sigma(loopIdx)]; end chan.NumSamples = round(sum(chan.MeanStateDuration)*chan.SampleRate); [pathGainsT{loopIdx},sampleTimesT{loopIdx},stateSeriesT{loopIdx}] = chan(); end % Convert cell to matrix pathGains = cell2mat(pathGainsT); sampleTimes = cell2mat(sampleTimesT); stateSeries = cell2mat(stateSeriesT);
Visualize Space Series and State Series
Plot the space series as a function of time.
figure subplot(211) plot(sampleTimes,20*log10(abs(pathGains))) title("Space Series") xlabel("Time (in s)") ylabel("Path Gain (in dB)") grid on
Plot the state series as a function of time.
subplot(212) plot(sampleTimes,stateSeries) title("State Series") xlabel("Time (in s)") ylabel("State") grid on
Get Lutz LMS Channel Information
Get channel information from a LutzLMSChannel
System object by using the info
object function.
Create a Lutz LMS channel System object and specify its properties.
chan = lutzLMSChannel; chan.SampleRate = 6000; chan.KFactor = 20; chan.MeanStateDuration = [8 2]; disp(chan)
lutzLMSChannel with properties: SampleRate: 6000 InitialState: "Good" KFactor: 20 LogNormalFading: [-8.8000 3.8000] StateDurationDistribution: "Exponential" MeanStateDuration: [8 2] MaximumDopplerShift: 4.2807 ChannelFiltering: true Use get to show all properties
QPSK-modulate a random input signal, and then pass it through the channel.
numSamples = 2e4; txWaveform = pskmod(randi([0 3],numSamples,1),4); [rxWaveform,pathGains,sampleTimes,stateSeries] = chan(txWaveform);
Get the characteristic information about the Lutz LMS channel.
info(chan)
ans = struct with fields:
PathDelays: 0
ChannelFilterDelay: 0
ChannelFilterCoefficients: 1
NumSamplesProcessed: 20000
Transmit another QPSK-modulated random input signal through the channel
numSamples2 = 3e4; txWaveform2 = pskmod(randi([0 3],numSamples2,1),4); [rxWaveform2,pathGains2,sampleTimes2,stateSeries2] = chan(txWaveform2);
Observe the change in number of samples processed.
info(chan)
ans = struct with fields:
PathDelays: 0
ChannelFilterDelay: 0
ChannelFilterCoefficients: 1
NumSamplesProcessed: 50000
References
[1] Lutz, E., D. Cygan, M. Dippold, F. Dolainsky, and W. Papke. “The Land Mobile Satellite Communication Channel-Recording, Statistics, and Channel Model.” IEEE Transactions on Vehicular Technology 40, no. 2 (May 1991): 375–86. https://doi.org/10.1109/25.289418.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
Code generation is available only when the
Visualization
property is"Off"
.See System Objects in MATLAB Code Generation (MATLAB Coder).
Version History
Introduced in R2022b
MATLAB Command
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
