Visualize coordinate axes triad of satellite scenario assets

Since R2023a



coordinateAxes(asset) adds a coordinate axes triad graphic visualization (CoordinateAxes object) for an asset. In the visualization, the x-axis (roll) is red in color, the y-axis (pitch) is green, and z-axis (yaw) is blue.

coordinateAxes(asset,Name=Value) specifies additional arguments using one or more name-value.

ax = coordinateAxes(___) returns the CoordinateAxes object.


collapse all

Create a satelliteScenario object.

startTime = datetime(2020,4,25); % April 25, 2020, 12:00 AM UTC
stopTime = datetime(2020,4,26);  % April 26, 2020, 12:00 AM UTC
sampleTime = 60;                 % seconds
sc = satelliteScenario(startTime,stopTime,sampleTime);

Launch a satellite scenario viewer with ShowDetails set to false.

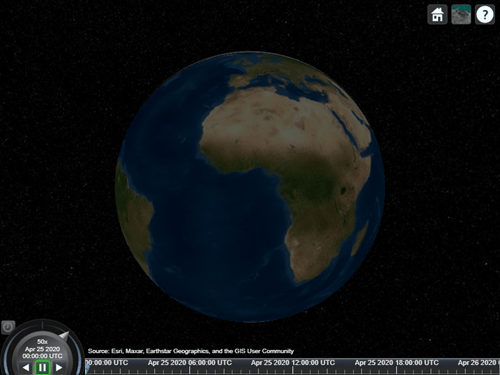

v = satelliteScenarioViewer(sc,ShowDetails=false);


Add a low-earth orbit satellite constellation to the scenario from a TLE file.

tleFile = "leoSatelliteConstellation.tle";

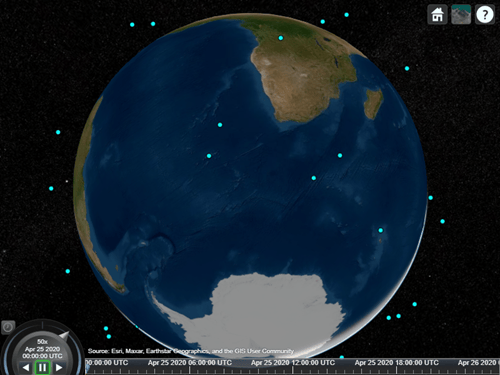

sat = satellite(sc,tleFile);


Add a ground station to the scenario.

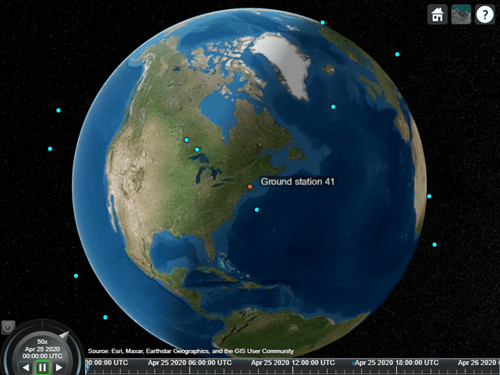

gs = groundStation(sc);
gs.ShowLabel = true;


Visualize the coordinate axes triads of the satellites.

ax = coordinateAxes(sat)
ax=1×40 object
  1×40 CoordinateAxes array with properties:


Point the satellites towards the ground station. The coordinate axes triad object updates to represent the new direction of the satellites.



Play the scenario.



Input Arguments

collapse all

Satellites, ground stations, platforms, gimbals, conical sensors, transmitters, or receivers, specified as a vector.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Scale =2 scales the size of the coordinate axes triad visualization by 2.

Satellite scenario viewer, specified as a vector. You view the coordinate axes triad in the viewer specified in this argument.

Scale of the coordinate axes triad graphic, specified as a positive scalar.

Data Types: double

Output Arguments

collapse all

Coordinate axes triad, returned as an object.

Version History

Introduced in R2023a
