# risetime

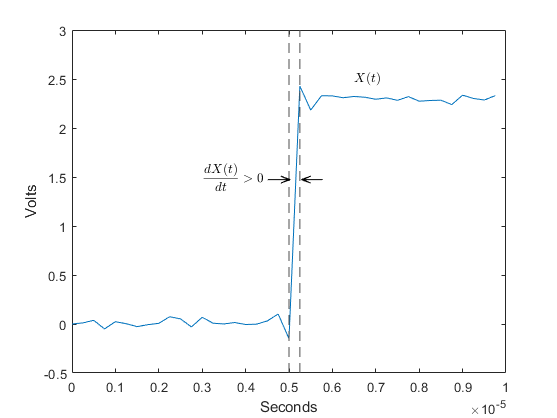

Rise time of positive-going bilevel waveform transitions

## Syntax

## Description

returns a vector, `r`

= risetime(`x`

)`r`

, containing the time each transition of
the input bilevel waveform, `x`

, takes to cross from the 10%
to 90% reference levels. To determine the transitions,
`risetime`

estimates the state levels of the input
waveform by a histogram method. `risetime`

identifies all
regions that cross the upper-state boundary of the low state and the lower-state
boundary of the high state. The low-state and high-state boundaries are
expressed as the state level plus or minus a multiple of the difference between
the state levels. See State-Level Tolerances. Because
`risetime`

uses interpolation, `r`

can
contain values that do not correspond to sampling instants of the bilevel
waveform, `x`

.

specifies the sample rate in hertz. The sample rate determines the sample
instants corresponding to the elements in `r`

= risetime(`x`

,`fs`

)`x`

. The first
sample instant in `x`

corresponds to *t* = 0. Because `risetime`

uses interpolation,
`r`

can contain values that do not correspond to sampling
instants of the bilevel waveform, `x`

.

`[___] = risetime(___,`

returns the rise times with additional options specified by one or more
`Name,Value`

)`Name,Value`

pair arguments.

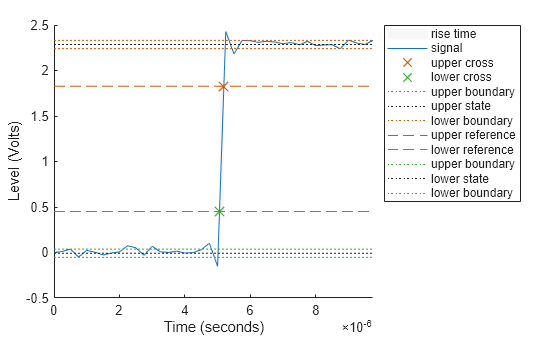

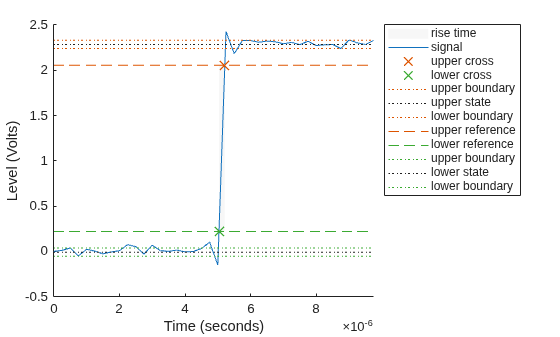

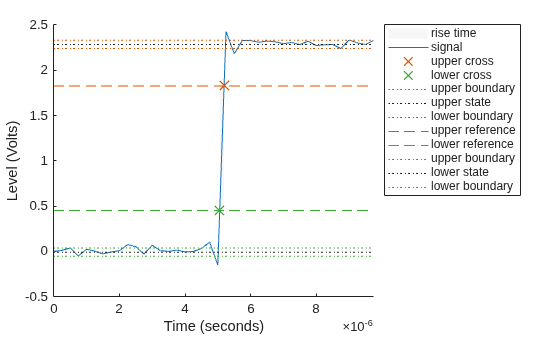

`risetime(___)`

plots the signal and darkens
the regions of each transition where rise time is computed. The plot marks the
lower and upper crossings and the associated reference levels. The state levels
and the corresponding associated lower- and upper-state boundaries are also
plotted.

## Examples

## Input Arguments

## Output Arguments

## More About

## References

[1] *IEEE ^{®} Standard on Transitions,
Pulses, and Related Waveforms*, IEEE Standard 181, 2003,
pp. 15–17.

## Extended Capabilities

## Version History

**Introduced in R2012a**
