Convert physical signal into Simulink output signal
Simscape / Utilities
The PS-Simulink Converter block converts a physical signal into a Simulink® output signal. Use this block to connect outputs of a Simscape™ physical network to Simulink scopes or other Simulink blocks.
Block Icon Display on the Model Canvas
To convey signal conversion while taking up minimal canvas space, the block icon changes dynamically based on whether it is connected to other blocks.
|When Block Is...||Block Icon|
Connected to other blocks
Unit Conversion and Checking
The Output signal unit parameter lets you specify the desired units
for the output signal. These units must be commensurate with the units of the input physical
signal coming into the block. If you specify a desired output unit, the block applies a gain
equal to the conversion factor before outputting the Simulink signal. For example, if the input physical signal coming into the block is
displacement, in meters, and you set Output signal unit to
mm, the block multiplies the value of the input signal by 1e3 before
outputting it. If the output signal unit is the same as the input signal unit, no gain is
The default value of the Output signal unit parameter,
inherit, automatically sets the unit at the block output port
to match the unit of the input physical signal coming into the block, based on unit
propagation rules. This way, you can easily connect a PS-Simulink
Converter block to any signal, without worrying about setting the
commensurate output unit.
In the diagram below, the input signal for the PS-Simulink
Converter block is torque in N*m, and if you do not specify the output
signal unit, the Display block shows the value of 10. If you change the
Output signal unit parameter value in the PS-Simulink
Converter block to
N*cm, the torque value in the
Display block changes to 1000, as shown in the diagram.
When the output signal is related to thermodynamic variables and contains units of temperature, you must decide whether affine conversion needs to be applied. For more information, see When to Apply Affine Conversion. Usually, if the output signal represents a relative temperature, that is, a change in temperature, you need to apply linear conversion, ΔTnew = L * ΔTold (the default method). However, if the output signal represents an absolute temperature, you need to apply affine conversion, Tnew = L * Told + O.

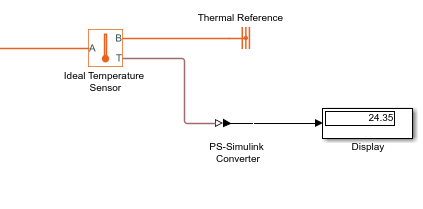

In the following diagram, the Display block shows the room temperature.
If you want to display it in degrees Celsius, open the PS-Simulink
Converter block, type
degC in the Output
signal unit field, and select the Apply affine conversion
check box. The display reading is 24.35. However, if you leave the Apply affine
conversion check box clear, the Display block would show
Unit specified for the output signal by using the Output signal unit parameter does not propagate outside of the physical network. However, if you also specify a physical unit as an attribute of the Simulink signal connected to the output port of the block, the software checks that the two units match. For more information, see Working with Simulink Units.
PS — Input physical signal
Input physical signal that the block converts into the output Simulink signal.
Port_1 — Output Simulink signal
scalar | vector | matrix
Simulink signal that the block outputs after conversion of the input physical signal. The signal size matches the size of the input physical signal. The Output signal unit parameter and Apply affine conversion check box let you apply scaling and linear offset to the input signal value to calculate the correct value of the output signal.
Vector format — Specify how to output vector physical signals
inherit (default) |
Specify how to output vector physical signals:
inherit— Format the Simulink output signal to match the format of the physical signal: scalar, row or column vector, or 2-D matrix.
1-D array— If the physical signal is a row or column vector, format the output signal as a Simulink 1-D array. Use this option to simplify plotting of such signals.
Output signal unit — Specify scaling factor for signal value conversion
inherit (default) |
Specify the desired units for the output signal. These units must be commensurate
with the units of the input physical signal coming into the block. The system compares
the units you specified with the actual units of the input physical signal and applies a
gain equal to the conversion factor before outputting the Simulink signal. You can select a unit from the drop-down list, or type the desired
unit name, such as
rpm, or a valid expression, such as
mm/s. For more information and a list of unit abbreviations, see
How to Specify Units in Block Dialogs
and Unit Definitions. The default value is
inherit, which means that the output unit matches the unit at the
block input port and no gain is applied.
Apply affine conversion — Select conversion method for affine temperature units
off (default) | on
This check box is applicable only for units that can be converted either with or
without an affine offset, such as
Select this check box if the output signal represents absolute temperature in degrees
Celsius or degrees Fahrenheit. For more information, see Thermal Unit Conversions.
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version HistoryIntroduced in R2007a
R2022a: Choose format for outputting vector physical signals
The block includes an additional parameter, Vector format, which lets you specify how to output vector physical signals:
inherit— Format the Simulink output signal to match the format of the physical signal: scalar, row or column vector, or 2-D matrix. This is the default setting for new models.
1-D array— If the physical signal is a row or column vector, format the output signal as a Simulink 1-D array. This option corresponds to how the PS-Simulink Converter block handled vector physical signals in previous releases. To preserve backward compatibility, in models created prior to R2022a, the Vector Format parameter is automatically set to
