Serial

R2026b

Communication using serial port interface

Serial communication is the most common low-level protocol for communicating between two or more devices. You can effectively use serial communication via Universal Asynchronous Receiver-Transmitter (UART) to exchange, control, and automate across applications using your Arduino^® board and host computer.

Blocks

	Serial Receive	Receive data over Arduino serial port
	Serial Transmit	Transmit data over Arduino serial port
	Serial Receive SAMD	Receive data over Arduino SAM D21 core serial port (Since R2026a)
	Serial Transmit SAMD	Transmit data over Arduino SAM D21 core serial port (Since R2026a)

Model Settings

expand all

Serial Port Properties

Serial Baud Rate	Set baud rate of serial port
Serial Configuration	Data frame configuration for serial port communication (Since R2023a)

SERCOM Properties

Enable SERCOM as Serial

Sercom baud rate

Sercom configuration

Topics

Use Serial Communication with Arduino Hardware
Set up and use serial communication with Arduino hardware.

Featured Examples

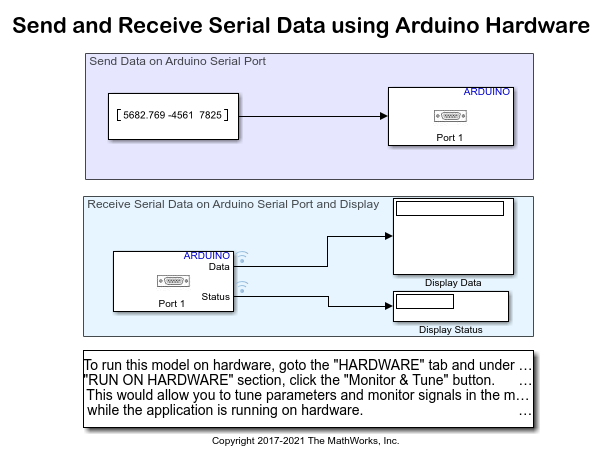

Send and Receive Serial Data Using Arduino Hardware

Use Simulink® Support Package for Arduino® Hardware to send and receive serial data with Arduino hardware.

Open Model

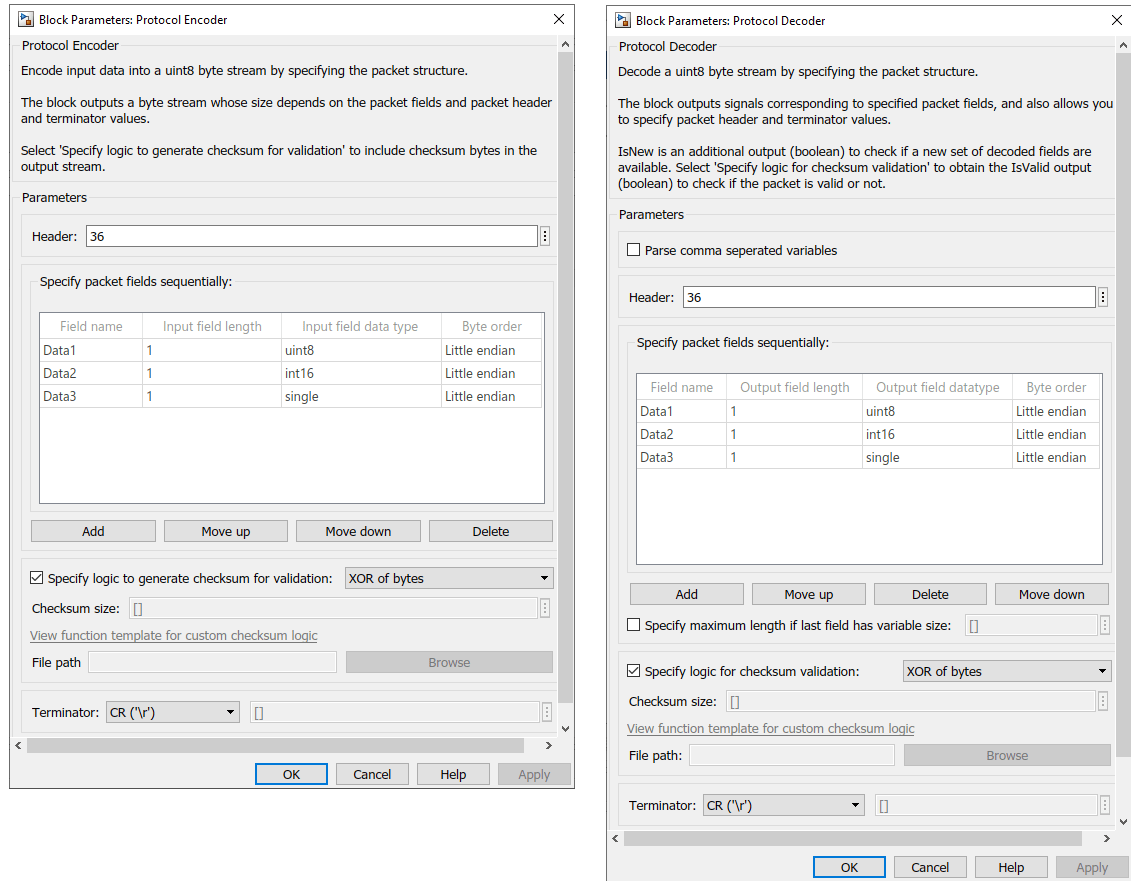

Encode and Decode Serial Data Using Arduino Hardware

Use Simulink® Support Package for Arduino® Hardware to encode and decode serial data with Arduino hardware.

Open Model

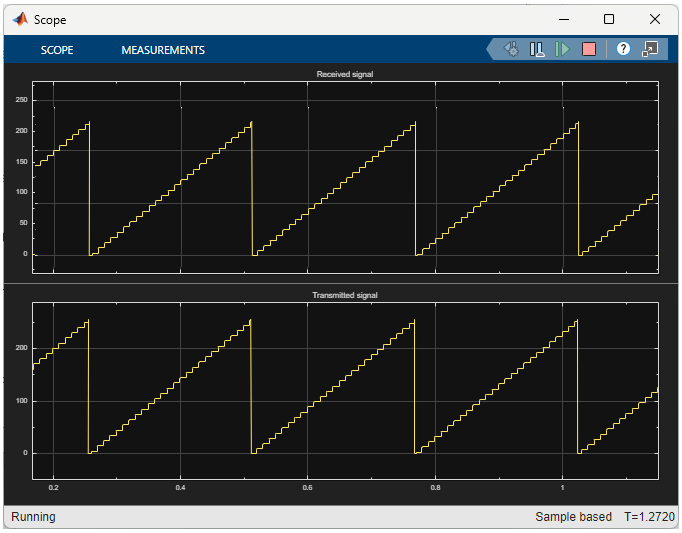

Send and Receive Data Between Arduino and Host Using Serial Communication

Use the Serial Transmit and Serial Receive blocks from the Simulink® Support Package for Arduino® Hardware to transmit and receive data between your host computer and Arduino hardware using a USB to serial converter. When the Arduino hardware receives data, it transmits back the same data to the host. The host then displays both the transmitted and received data on the scope.

Open Model

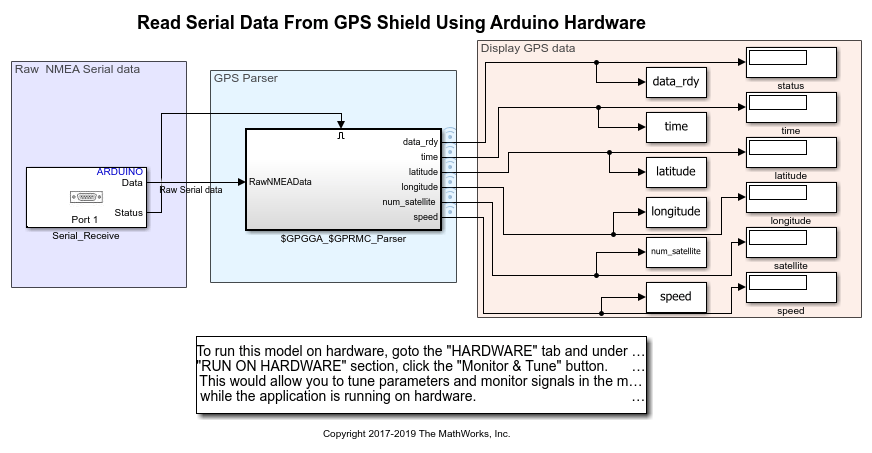

Read Serial Data from GPS Shield Using Arduino Hardware

Use Simulink® Support Package for Arduino® Hardware to receive serial data from a GPS shield on the Arduino hardware.

Open Model

Send and Receive Data of Variable Lengths Using Arduino Serial Communication Blocks

Use the Serial Transmit and Serial Receive blocks from the Simulink® Support Package for Arduino® Hardware to transmit and receive data of variable lengths on the Arduino serial port using a USB to serial converter.

Open Model

Capture Images Using ArduCam OV2640 Camera Module and ESP32 Hardware

Capture JPEG images using the ArduCam OV2640 camera module with ESP32 hardware.

Open Model
