Repeating Sequence Stair

Output and repeat discrete time sequence

  • Library:
  • Simulink / Sources

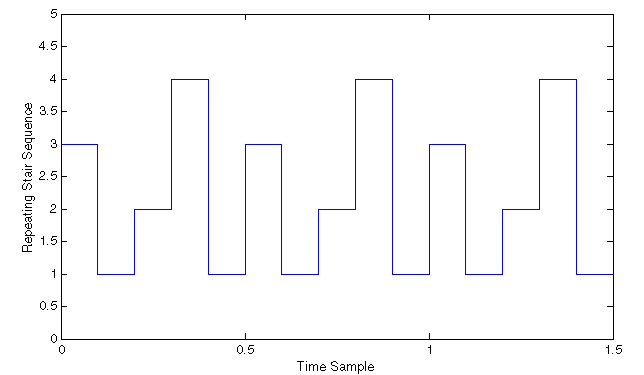

The Repeating Sequence Stair block outputs and repeats a stair sequence that you specify with the Vector of output values parameter. For example, you can specify the vector as [3 1 2 4 1]'. A value in Vector of output values is output at each time interval, and then the sequence repeats.



expand all

Output signal generated based on the values in the Vector of time values and Sample time parameters.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean | fixed point | enumerated


expand all


Specify the vector containing values of the repeating stair sequence.

Programmatic Use

Block Parameter: OutValues
Type: character vector
Values: vector
Default: [3 1 4 2 1].'

Specify the time interval between samples. To inherit the sample time, set this parameter to -1. See Specify Sample Time for more information.

Programmatic Use

Block Parameter: tsamp
Type: character vector
Values: scalar
Default: '-1'

Signal Attributes

Lower value of the output range that Simulink® checks.

Simulink uses the minimum to perform:


Output minimum does not saturate or clip the actual output signal. Use the Saturation block instead.

Programmatic Use

Block Parameter: OutMin
Type: character vector
Values: '[ ]'| scalar
Default: '[ ]'

Upper value of the output range that Simulink checks.

Simulink uses the maximum value to perform:


Output maximum does not saturate or clip the actual output signal. Use the Saturation block instead.

Programmatic Use

Block Parameter: OutMax
Type: character vector
Values: '[ ]'| scalar
Default: '[ ]'

Choose the data type for the output. The type can be inherited, specified directly, or expressed as a data type object such as Simulink.NumericType.

Click the Show data type assistant button to display the Data Type Assistant, which helps you set the data type attributes. For more information, see Specify Data Types Using Data Type Assistant.

Programmatic Use

Block Parameter: OutDataTypeStr
Type: character vector
Values: 'Inherit: Inherit via back propagation' | 'single' | 'int8' | 'uint8' | int16 | 'uint16' | 'int32' | 'uint32' | 'int64' | 'uint64' | fixdt(1,16,0) | fixdt(1,16,2^0,0) | fixdt(1,16,2^0,0) | '<data type expression>'
Default: 'Double'

Select to lock the output data type setting of this block against changes by the Fixed-Point Tool and the Fixed-Point Advisor. For more information, see Use Lock Output Data Type Setting (Fixed-Point Designer).

Programmatic Use

Block Parameter: LockScale
Type: character vector
Values: 'off' | 'on'
Default: 'off'

Block Characteristics

Data Types

Boolean | double | fixed point | integer | single

Direct Feedthrough


Multidimensional Signals


Variable-Size Signals


Zero-Crossing Detection


Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

PLC Code Generation
Generate Structured Text code using Simulink® PLC Coder™.

Fixed-Point Conversion
Convert floating-point algorithms to fixed point using Fixed-Point Designer™.

Introduced before R2006a
