simulink.event.InputWriteTimeout

R2026b

Trigger schedule event when input port value does not update within specified time

Since R2022b

Description

Use a simulink.event.InputWrite object to configure a root-level input port in a rate-based model to create a schedule event each time the input port value does not update within a specified amount of time. You can model and simulate quality of service effects by using event triggers, such as the InputWriteTimeout object, to execute partitions in response to the flow of data into a model.

Event triggers create schedule events based on the runtime activity at a particular location in the model. The schedule for the model determines which partitions execute in response to the schedule event as well as the event priority. To execute one or more partitions in response to the flow of data into a model, configure event triggers on one or more root-level input ports in the model. To configure the schedule for your model, use the Schedule Editor.

The Events parameter of an Inport or In Bus Element block stores the event triggers associated with the port. Each event trigger maps an input event related to the flow of data into the port to the name of the schedule event to trigger. The table summarizes the event triggers you can configure on root-level input ports. You can configure an input port with one event trigger for each input event.

Input Event	Input Event Description	Event Trigger Object
Input write	Value for input port updates.	simulink.event.InputWrite
Input write timeout	Input port value does not update within a specified amount of time.	simulink.event.InputWriteTimeout
Input write lost	Input port value update overwrites unprocessed data.	simulink.event.InputWriteLost

To configure the schedule for your model, use the Schedule Editor.

Creation

You can configure the event triggers for an input port programmatically or interactively.

• When you configure an event trigger programmatically, create and configure the event trigger object yourself using the simulink.event.InputWriteTimeout function.

• When you configure an event trigger interactively by using the Block Parameters dialog box or the Property Inspector, the software creates and configures the event trigger object.

Syntax

writeTimeout = simulink.event.InputWriteTimeout

Description

writeTimeout = simulink.event.InputWriteTimeout creates the event trigger writeTimeout that you can use to configure an input port to trigger a specified schedule event each time the input port value does not update within the specified amount of time.

Properties

EventName — Event to trigger when input port value does not update within specified time

'Auto' (default) | string | character vector

Event to trigger when input port value does not update within specified time, specified as a string or a character vector. The event name must be 'Auto' or the name of an event defined in the Schedule Editor.

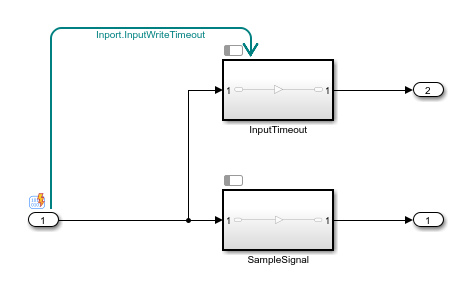

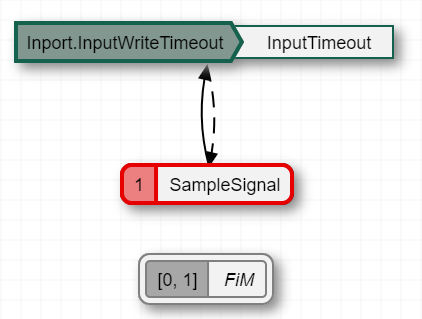

By default, the event name is 'Auto'. When you update or compile a model that has an input port configured with an InputWriteTimeout event trigger with the event name 'Auto', the software creates a schedule event that is scoped to the block. For example, for a block named Inport, the software creates the event Inport.InputWriteTimeout. Use the Schedule Editor to configure the listener for the event.

Example: inTimeout.EventName = "myEvent" configures the event trigger object inTimeout to trigger the event myEvent that is defined in the Schedule Editor.

Data Types: char | string

Timeout — Time limit for update of input port value

'' (default) | string | character vector

Time limit for update of input port value, specified as a string or a character vector that defines a positive numeric value.

Example: inTimeout.Timeout = "1" configures the event trigger object inTimeout with a timeout of one second.

Data Types: char | string

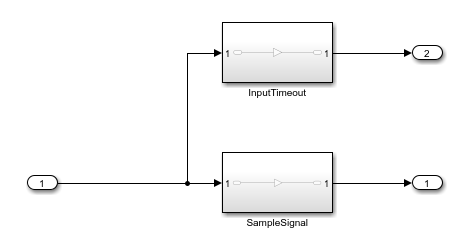

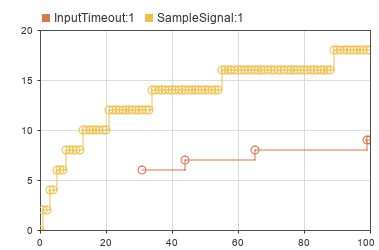

Examples

Version History

Introduced in R2022b
