Configure number of cursors active in Simulation Data Inspector



    Simulink.sdi.setNumCursors(num) configures the Simulation Data Inspector to display the number of cursors specified by num in the Inspect pane plots.

    Simulink.sdi.setNumCursors(num,view) configures the Simulation Data Inspector to display the number of cursors specified by num in the Inspect or Compare plot area, as specified by view.


    collapse all

    You can use the Simulation Data Inspector programmatic interface to specify the position of cursors on time plots or sparklines and to access the time that corresponds to the current cursor position.

    Open the session file vdp_mu.mldatx to add and plot data in the Simulation Data Inspector. The session file contains data for a 20-second simulation of a model of the Van Der Pol equation, with signals x1 and x2 plotted on separate subplots in a 2-by-1 subplot layout.

    open vdp_mu.mldatx;

    Use the Simulink.sdi.setNumCursors function to add one cursor to the plot.

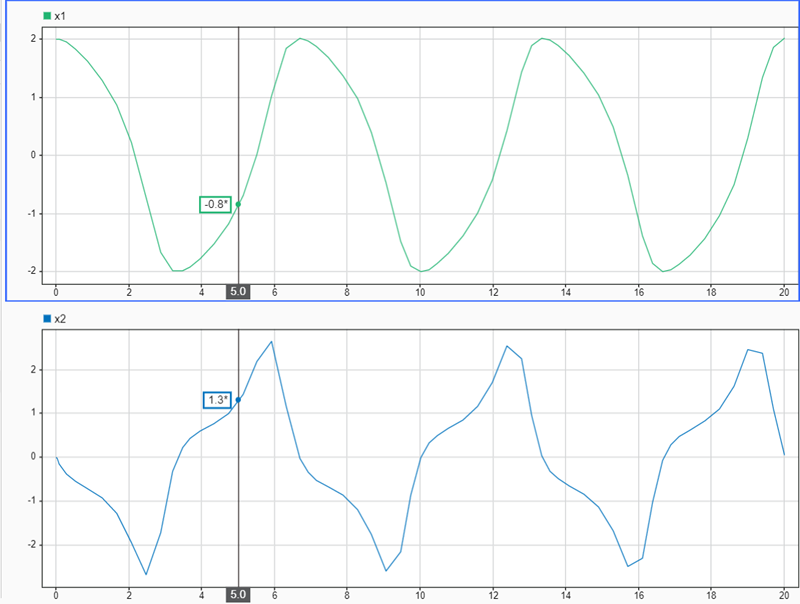

    Suppose you want to know the signal values 5 seconds into the simulation. Use the Simulink.sdi.setCursorPositions function to move the cursor to t=5s and read the signal values off from the cursor on each subplot. The asterisk next to the value in the cursor label indicates that the value is interpolated because the simulation did not include a calculation for a simulation time of exactly 5s.


    Suppose you want to calculate the time between two peaks in the x2 signal. Add a second cursor using the Simulink.sdi.setNumCursors function or using the Show/hide data cursors button in the Simulation Data Inspector.

    numCursors = Simulink.sdi.getNumCursors;
    if(numCursors < 2)

    Drag the cursors so the left cursor is positioned at the first peak in the x2 signal and the right cursor is positioned at the second peak. Alternatively, run this code that positions the cursors for you.


    The Simulation Data Inspector displays the difference between the two cursors in seconds. However, the cursor position and difference values are both rounded. Use the Simulink.sdi.getCursorPositions function to programmatically retrieve the exact time values that correspond to the cursor positions. Then, compute the difference between the times.

    [t1,t2] = Simulink.sdi.getCursorPositions;
    T = t2 - t1
    T = NaN

    Input Arguments

    collapse all

    Number of cursors to display, specified as 0, 1, or 2.

    Plot area in which to display cursors, specified as 'inspect' or 'compare'.

    Data Types: char | string

    Introduced in R2021a
