Iterate Model Design Using the Simulation Data Inspector

The Simulation Data Inspector facilitates iterative design, debugging, and optimization by providing easy access to visualizations of logged data during simulation. Using the Simulation Data Inspector archive, you can maintain a focused work area and control data retention for multiple simulations. When you automatically archive simulation runs, you can create a view that is automatically applied to subsequent simulation runs. With Browse Mode enabled, you can inspect large amounts of logged signals on Time Plot visualizations more quickly.

View and Inspect Signals During Simulation

You can plot logged signals in the Simulation Data Inspector during simulation. Viewing signals during a simulation can help build understanding of the model and allow you to make decisions about model parameters without waiting for a simulation to complete.

To closely examine signals throughout design iteration, add data cursors to your plots. You can add a data cursor to the plot during simulation, while a simulation is paused, or after the simulation has finished. To add a data cursor, click the cursor button . Drag the data cursor across the plot to inspect signal values. When you display multiple signals on a plot, the data cursor indicates the value for each signal in a color-coded box.

Click the drop-down on the cursors button and select Two Cursors to add a second data cursor and explore temporal characteristics of your data. You can move each cursor independently, or you can move them together. The number between the two cursors displays the time difference between the cursors.

You can type directly into the box to specify a desired cursor separation. To move the cursors together, click and hold the middle number indicator, and drag it across the graphical viewing area to your desired position. For more information about using data cursors, see Inspect Simulation Data.

Automatically Transfer View to Current Simulation

By default, the Simulation Data Inspector is configured to automatically archive simulation runs and transfer a view from the previous run to the current simulation. When you run a new simulation, the Simulation Data Inspector moves the prior simulation run to the archive and updates the view to show aligned signals from the current run. You can control the Automatically archive setting on the Archive settings pane.

For example, create a view of signals from the sldemo_fuelsys model. Then, simulate the sldemo_fuelsys model again. The signals from the previous run clear from the plots, and the Simulation Data Inspector plots data from the current simulation as the simulation runs. The previous run also moves into the archive, reducing clutter in the work area.

You can access and plot data from previous runs from within the archive, and you can drag runs of interest into the work area from the archive.

Control Data Retention

Running many simulations with logged signals can create a lot of data, especially during iterative design and debugging workflows. To limit the amount of disk space occupied by logged data, you can limit the amount of data the Simulation Data Inspector stores in the archive on the Archive settings pane.

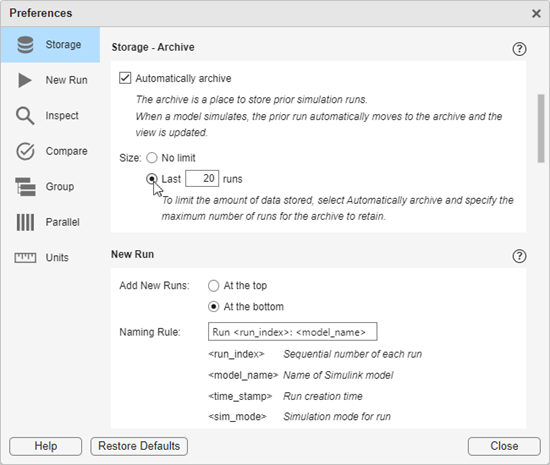

By default, the Simulation Data Inspector does not limit the number of runs stored in the archive. To impose a limit, select the Last runs radio button, and specify the desired limit. When the number of runs in the archive reaches the limit, the Simulation Data Inspector deletes the run that has been in the archive the longest. If the archive contains more runs than the limit you specify, the Simulation Data Inspector provides a warning before deleting your run data.

Tip

When you do not want the Simulation Data Inspector to store run data, specify an archive limit of 0. With an archive limit of 0 and Automatically archive enabled, the Simulation Data Inspector automatically transfers your configured view to the current simulation and only retains the current simulation data.

Visualize Many Logged Signals

You can use Browse Mode to inspect many signals quickly on Time Plot visualizations. To enable Browse Mode, click the gear icon in the navigation pane, and navigate to the Selection pane. Click the radio button next to Browse Mode.

Note

To use Browse Mode your layout must include only Time Plot visualizations.

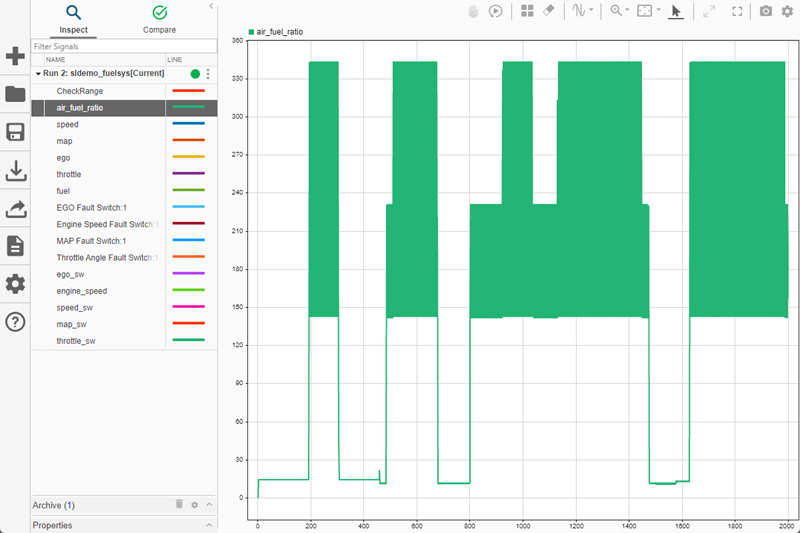

In Browse Mode, signals selected in the navigation pane are plotted on the active Time Plot. You can use the arrow keys on your keyboard to change the selected signals, and you can select multiple signals by holding the Shift or Ctrl keys. When you select a row for a run or hierarchical organization, no signals are displayed in the graphical viewing area.

You can also use plot layouts in Browse Mode to make more complex visualizations. When the graphical viewing area contains multiple subplots, selecting new signals using the mouse or keyboard changes only the active plot.

When you finish browsing your simulation results, enable Check Mode on the Selection pane of the work area settings to build plots that showcase your data. For more information about creating plots with the Simulation Data Inspector, see Create Plots Using the Simulation Data Inspector.
