uisim3dviewer

R2026b

Create 3D simulation viewer UI component

Since R2026b

collapse all in page

    Syntax

    viewer = uisim3dviewer()
    viewer = uisim3dviewer(world)
    viewer = uisim3dviewer(parent,___)
    viewer = uisim3dviewer(___,Name=Value)

    Description

    viewer = uisim3dviewer() creates a 3D viewer with a default sim3d.World object in a figure and returns the sim3d.ui.UnrealViewer object. MATLAB® calls the uifigure function to create the figure.

    viewer = uisim3dviewer(world) creates a 3D viewer with an existing sim3d.World object specified by world in a figure and returns the sim3d.ui.UnrealViewer object. MATLAB calls the uifigure function to create the figure.

    example

    viewer = uisim3dviewer(parent,___) creates a 3D viewer in the specified parent, in addition to any combination of inputs from the previous syntaxes. The parent can be a Figure object or one of its child containers. You can also modify the aspects of the UI component by setting its property values.

    example

    viewer = uisim3dviewer(___,Name=Value) specifies options for the UI component using one or more name-value arguments. You can set the properties of sim3d.ui.UnrealViewer object as name-value arguments. For example, specify the size and location of the UI component using the Position property. Use this option with any of the input argument combinations in the previous syntaxes.

    Examples

    collapse all

    Create a box actor in the 3D environment and view the 3D environment in a MATLAB figure window.

    Create a world using the sim3d.World object.

    world = sim3d.World();

    Create an actor object.

    actor = sim3d.Actor();

    Use the createShape function to build a box shape for the actor. Use the Color property to set the color of the box actor to red.

    createShape(actor,'box');
actor.Color = [1 0 0];

    Add the actor to the world.

    add(world,actor);

    Use the uisim3dviewer function to view the simulation in the figure window. If you do not specify the parent container, then by default, the software uses the uifigure function to create the figure.

    viewer = uisim3dviewer(world);

    Run the simulation to view the Simulation 3D Viewer in a figure window that displays the red box actor in the 3D environment.

    sampletime = 0.01;
stoptime = 5;
run(world,sampletime,stoptime)

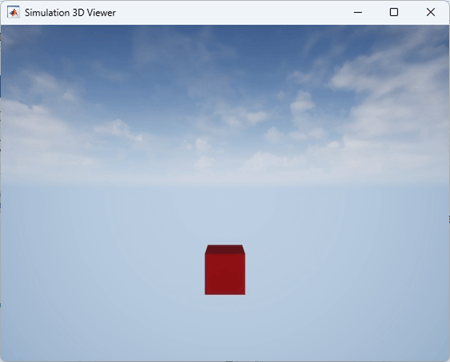

    Simulation 3D Viewer in figure window.

    You can also interact with the 3D environment and use keyboard shortcuts and mouse actions to navigate in the 3D environment. For more information about interacting with the 3D environment and using keyboard shortcuts and mouse actions, see Interact with Unreal Engine Simulation Environment and Navigate in Unreal Engine Environment.

    You can use the close function to stop rendering or close the figure window to stop simulation.

    Create a box actor in the 3D environment and view the 3D environment in a MATLAB figure window.

    Create a world using the sim3d.World object.

    world = sim3d.World();

    Create an actor object.

    actor = sim3d.Actor();

    Use the createShape function to build a box shape for the actor. Use the Color property to set the color of the box actor to red.

    createShape(actor,'box');
actor.Color = [1 0 0];

    Add the actor to the world.

    add(world,actor);

    Use the uifigure function to create a figure with a custom name. Use the uisim3dviewer function to view the simulation in the figure window.

    fig = uifigure(Name="3D Viewer");
viewer = uisim3dviewer(fig,world);

    Run the simulation to view the simulation in the custom figure window with the red box actor in the 3D environment.

    sampletime = 0.01;
stoptime = 5;
run(world,sampletime,stoptime)

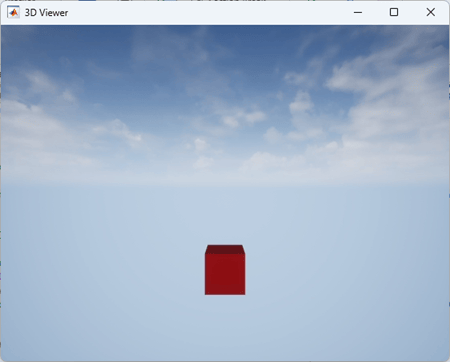

    Figure window named 3D Viewer displaying the 3D environment.

    Input Arguments

    collapse all

    World object that defines the 3D environment, specified as a sim3d.World object.

    Example: world = sim3d.World()

    Parent container, specified as a Figure object or one of its child containers: Tab, Panel, or GridLayout. If you do not specify a parent container, MATLAB calls the uifigure function to create a new Figure object that serves as the parent container.

    Output Arguments

    collapse all

    Unreal Engine viewer UI component, returned as a sim3d.ui.UnrealViewer object.

    Version History

    Introduced in R2026b
