ModelAdvisor.ResultDetail class

Package: ModelAdvisor

Defines result detail objects

Description

In the check callback function, ModelAdvisor.ResultDetail objects are created for each model element returned by the find_system() API, such as a collection of blocks that violate a check.

ResultDetailObjs objects are saved as a ResultDetails property of the ModelAdvisor.Check class.

Properties

IsInformer — Non-violated results

false (default)

Provides informational content.

Data Types: logical

IsViolation — Violated results

true (default)

Provides informational content and a recommended action message for fixing the issues.

Data Types: logical

Description — Description

character vector

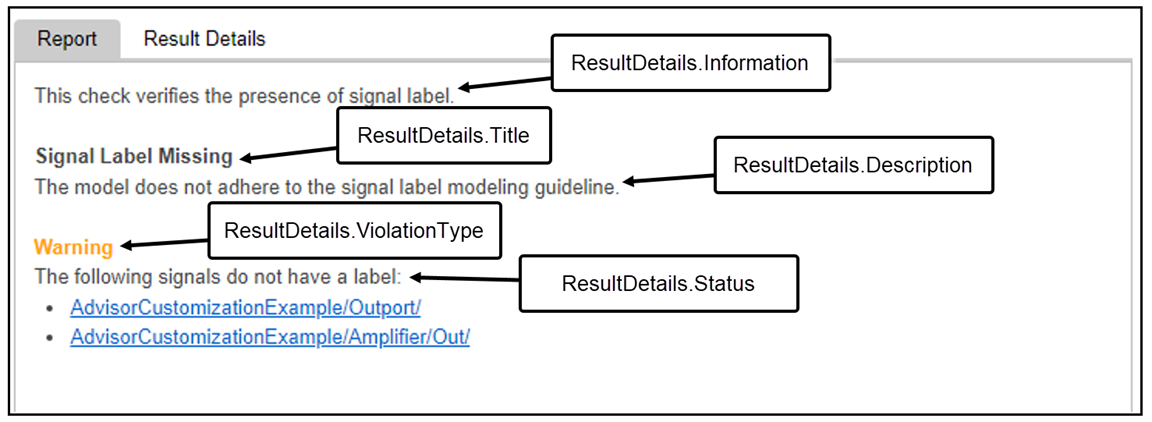

Specify a message that describes the result. This text is presented in the Model Advisor result pane.

Data Types: char

Title — Title

comma-separated pairs of Name,Value arguments

Specify a title for the result. This text is presented in the Model Advisor result pane.

Data Types: char

Information — Additional information

character vector

Specify a message that provides additional information about the result. This text is presented in the Model Advisor result pane.

Data Types: char

Status — Execution result

character vector

Specify a status message for the result. The text is presented in the Model Advisor result pane.

Data Types: char

RecAction — Recommended action

character vector

Specify a recommended action message for the result. The text is presented in the Model Advisor result pane.

Data Types: char

Examples

This example shows result details that correspond to the execution of check "Check whether block names appear below blocks" in the slvnvdemo_mdladv example model. To review the definition of the check, open the sl_customization.m file from the example model and see the sample code for ModelAdvisor.Check('com.mathworks.sample.Check0').

Define a Collection of Result Detail Objects

From the slvnvdemo_mdladv example model, open the sl_customization.m file. In the check callback function, the find_system() API returns model elements in the system that meet a specified criteria. In this example, the function returns blocks whose name does not appear below the block (violationBlks).

% find all blocks whose name does not appear below blocks
violationBlks = find_system(system, 'Type','block',...
                           'NamePlacement','alternate',...
                           'ShowName', 'on');

ModelAdvisor.ResultDetail creates ResultDetailObjs for each model element returned by the find_system API. When violationBlks is empty, the ElementResults collection consists of a single object. The Name,Value pairs define the collection for a nonviolated check. For this type of collection, the Simulink.ModelAdvisor.setCheckResultStatus(true) method specifies that the check is not violated and displays Passed on the Model Advisor.

In this code sample, the find_system API does not identify any blocks whose name appears below the block, therefore ElementResults provides information content only.

% Results when no blocks
% violate the check
if isempty(violationBlks)
    ElementResults = ModelAdvisor.ResultDetail;
        ElementResults.IsInformer = true;
        ElementResults.Title = 'Identify blocks where the name is
            not displayed below the block.';
        ElementResults.Information = 'Verifies that the name appears
            below the block.';
        ElementResults.Description = 'Identify blocks where the name
            is not displayed below the block.';
        ElementResults.Status = 'All blocks have names displayed
            below the block.';
    mdladvObj.setCheckResultStatus(true);

This example shows the ModelAdvisor.ResultDetail properties for ElementResults when check "Check whether block names appear below blocks" is not violated.

 ElementResults =
 ResultDetail with properties:
    IsInformer = 1
    Description = 'Identify blocks where the name is not displayed
        below the block.'
    Title = 'Check whether block names appear below blocks'
    Information = 'Verifies that the name appears below the block.'
    Status = 'All blocks have names displayed below the block.'


When the find_system API returns a list of model elements that meet specified criteria, the ModelAdvisor.ResultDetail class creates a ResultDetailObjs object for each element in violationBlks. The Name,Value pairs define ElementResults as a collection of objects that violate the check. For this collection, the Simulink.ModelAdvisor.setCheckResultStatus(false) method specifies that the check is violated and displays Warning or Failed on the Model Advisor. The Simulink.ModelAdvisor.setActionEnable(true) method enables the ability to fix the check violation issue from the Model Advisor.

In this code sample, the find_system API returns a list of blocks whose name appears below the block. ElementResults includes each ResultDetailObjs object that violates the check and provides a recommended action message for fixing the check violation.

% Create results when blocks violate the check
else
    ElementResults(1,numel(violationBlks))=ModelAdvisor.ResultDetail;
    for i=1:numel(ElementResults)
        ElementResults(i).setData(violationBlks{i});
        ElementResults.Title = 'Identify blocks where the name is not
            displayed below the block.';
        ElementResults.Information = 'Verifies that the name appears
            below the block.';
        ElementResults.Description = 'Identify blocks where the name
            is not displayed below the block.';
        ElementResults.Status = 'The following blocks have names that
            do not display below the blocks:';
        ElementResults.RecAction = 'Change the location such that the
            block name is below the block.';
    end
    mdladvObj.setCheckResultStatus(false);
    mdladvObj.setActionEnable(true);


This example shows the ModelAdvisor.ResultDetail properties for ElementResults when check "Check whether block names appear below blocks" is violated.

ElementResults =
ResultDetail with properties:
    IsInformer = 0;
    Description = 'Identify blocks where the name is not displayed
        below the block.';
    Title = 'Check whether block names appear below blocks';
    Information = 'Verifies that the name appears below the block.';
    Status = 'The following blocks have names that do not display
        below the blocks:';
    RecAction = 'Change the location such that the block name is
        below the block.'


The ModelAdvisor.Check.setResultDetails method associates the results with the check (CheckObj).

% Associate the results with the check
CheckObj.setResultDetails([CheckObj.ResultDetails, ElementResults]);


After executing the check, you can view the results in the Model Advisor as a collection, such as by recommended action, block, or subsystem. To define this report style, specify 'DetailStyle' as the callback style in the ModelAdvisor.Check.setCallbackFcn method.

% Define Model Advisor check "Check whether block names appear
% below blocks".
rec = ModelAdvisor.Check('com.mathworks.sample.Check0');
rec.Title = 'Check whether block names appear below blocks
    (recommended check style)';
rec.TitleTips = 'Example new style callback (recommended
    check style)';
rec.setCallbackFcn(@SampleNewCheckStyleCallback,'None',
    'DetailStyle');
