Square wave test signal
square( creates a square wave with a period
of 1 and range -1 to 1. In the interval 0 <= x < 1,
returns 1 for 0 <= x < 0.5 and -1 for 0.5 <= x < 1.
To specify the number of square wave cycles within a test step, use this operator with
the elapsed time (

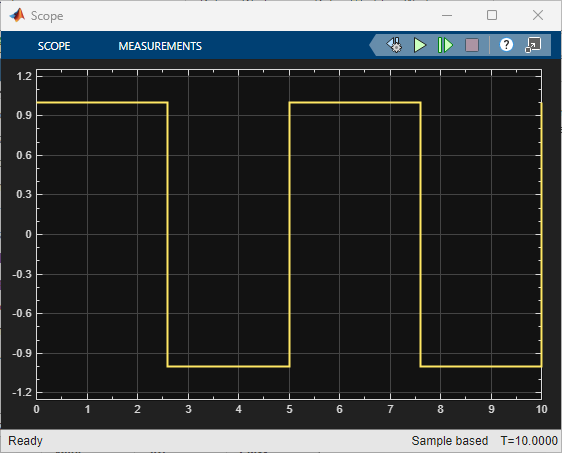

Create a Square Wave
Create a square wave with a period of 10.
squaresignal generation statements can be used in the Test Sequence and Test Assessment blocks.
squaresignal generation statements cannot be used in Stateflow® charts.
