Interprocess Data Channel
Model interprocessor data channel between two processors
SoC Blockset / Processor Interconnect
C2000 Microcontroller Blockset / Test Bench Blocks

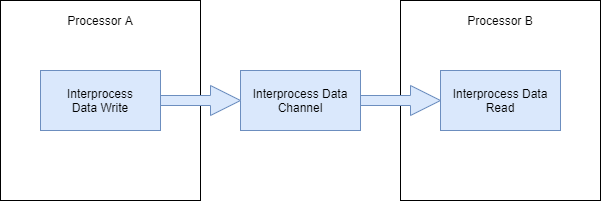

The Interprocess Data Channel block simulates the interprocessor data channel available in multiprocessor or OS managed SoC hardware board families. The block provides a channel for asynchronous data transfer between two processors. This diagram shows a generalized view of the interprocessor data connection.
To generate and execute C code for your SoC models, this block requires SoC Blockset™ Support Package for Infineon® AURIX™ Microcontrollers.
If you are using multiprocessor modeling approach with single model triggering multiple cores using Task manger, use the Interprocess Data Read (C2000 Microcontroller Blockset) and Interprocess Data Write (C2000 Microcontroller Blockset) blocks to send and receive data between cores.
Use IPC Receive and IPC Transmit blocks to receive or sent data to either core for multi-core processors. Use these blocks for flat model approach where you are using separate models for each core.
To help you choose the right solution for your application, see Communication between Cores Using IPC Blocks (C2000 Microcontroller Blockset) for the detailed comparison between the IPC Transmit/Receive blocks and Interprocess Data Read/Write blocks
In an SoC model, when Interprocess Data Channel blocks form a closed-loop between two or more tasks, it can create an artificial algebraic loop for the Simulink® solver. To break the loop, the Simulink solver implicitly adds a delay into the loop. This delay is related to an internal event and cannot be modified by the user, but the delay typically will be on the same order as the base time-step of the model. For more information on artificial algebraic loops in Simulink solvers, see Artificial Algebraic Loops.
overwritten — Output overwrite notification signal
This port sends a true signal output whenever an overwrite of the internal buffer queue occurs. When the connected processor model executes in external mode, the connected Interprocess Data Write block generates the overwritten signal in the Simulation Data Inspector tool.
To enable this port, select the Show when buffer is overwritten parameter.
used — Output number of buffers in use
This port outputs the number of buffers currently in use in the block's internal buffer queue. When the connected processor model executes in external mode, the connected Interprocess Data Write block generates the used signal in the Simulation Data Inspector tool.
To enable this port, select the Show number of used buffers parameter.
event — Task event signal
This port sends a task event signal that triggers the Task Manager block to execute the associated event-driven task.
For TI’s C2000™ hardware boards, when the Interprocess Data Channel
block connects to the Task Manager
block, the allowed interrupts available in the Hardware
Mapping tool must be in consecutive order starting from
IPC0. For example:
If one Interprocess Data Channel block is in the model, then only
IPC0interrupt is allowed
If two Interprocess Data Channel blocks are in the model, the only
IPC1interrupts are allowed.
To enable this port, select the Show event port parameter.
Circular FIFO depth — Number of storage buffers
1 (default) | positive integer
Buffers are circular buffers created in shared message RAM. Number of buffer is the number of elements stored at a time in the shared message RAM. These are not FIFO but will be overwritten at next instance.
Propagation delay — Propagation delay of data through the channel
1e-6 (default) | non-negative number
Specify the propagation delay of data transfers through the this block. To ignore
propagation delays, set this parameter to
Show event port — Option to enable task event ports
off (default) |
Enable an event port that, when connected to the Task Manager block, can execute event-driven tasks.
Show number of used circular FIFO — Option to enable circular FIFO count ports
off (default) |
Enable an output port that shows the current number of circular FIFO used in the Interprocess Data Channel block internal buffer queue.
Show when circular FIFO is overwritten — Enable port that shows circular FIFO overwrites
off (default) |
Enable an output port that signals when a overwrite of the Interprocess Data Channel block internal circular FIFO queue occurred.
Introduced in R2020b
