Marine Full Electric Propulsion Power System

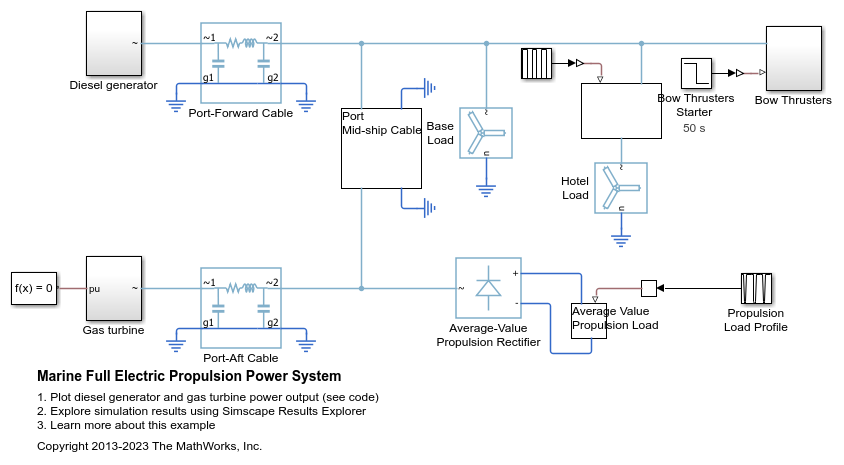

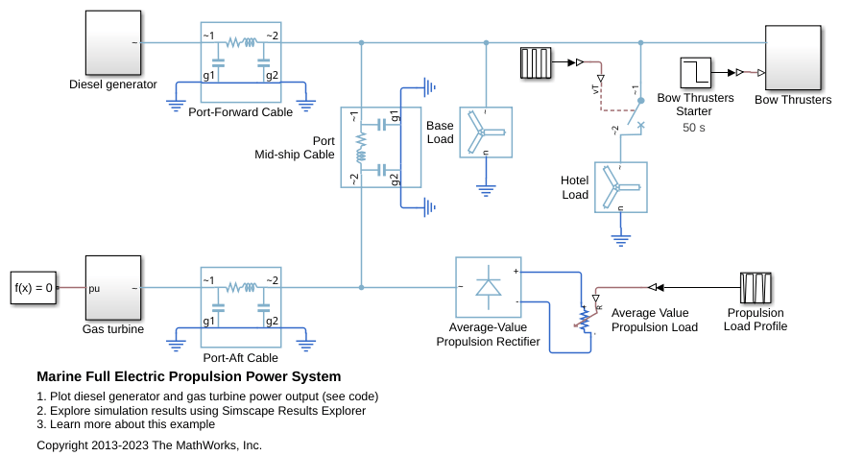

This example shows a representative marine half-ship electrical power system with base load, hotel load, bow thrusters and electric propulsion.
The principal components of the system are:
30 MVA Gas Turbine, Round Rotor Alternator
5 MVA Diesel Generator, Salient Pole Alternator
11.5 MVA Base Load
6 MVA Switched Hotel Load
20 MVA Average-Value Propulsion Rectifier
1 MVA Direct Online Start, Squirrel Cage Bow Thrusters
The sequence of events during the simulation is:
10 seconds - Hotel Load disconnected
20 seconds - Propulsion begins ramping up
30 seconds - Full power ahead
40 seconds - Propulsion begins ramping down
50 seconds - Bow Thrusters start up
60 seconds - Hotel Load connected
Simulation Results from Simscape Logging

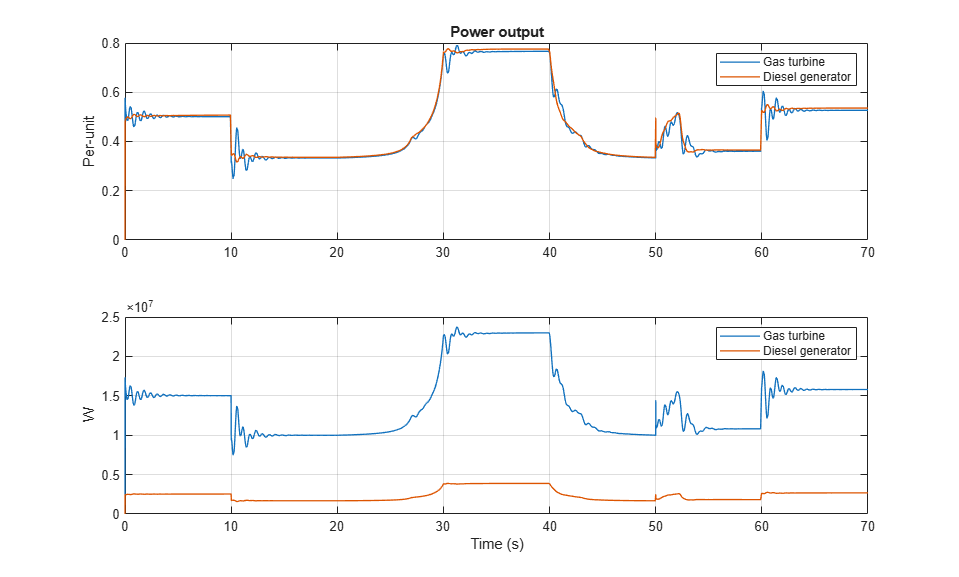

The plot below shows the diesel generator and gas turbine power outputs.
Results from Real-Time Simulation
This example has been tested on a Speedgoat Performance real–time target machine with an Intel® 3.5 GHz i7 multi–core CPU. This model can run in real time with a step size of 500 microseconds.
