isvalid

Determine if message is valid

Syntax

isvalid(message_name)

Description

example

isvalid(message_name) checks if a message is valid. A message is valid if the chart has removed it from the queue and has not forwarded or discarded it.

Examples

expand all

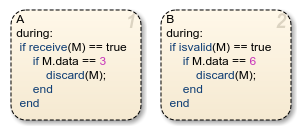

Determine whether the message M is valid. If the message is valid and has a data value equal to 6, discard the message.

during:
if isvalid(M) == true
    if M.data == 6
        discard(M);
    end
end

Tips

  • Use the isvalid operator to check if a message is valid in a Simulink® model that contains more than one Stateflow® chart.

Introduced in R2018b
