# loss

Regression error

## Syntax

## Description

returns the mean squared error between the predictions of `L`

= loss(`tree`

,`Tbl`

,`ResponseVarName`

)`tree`

to the data in `Tbl`

, compared to the true responses
`Tbl.ResponseVarName`

.

computes the error in prediction with additional options specified by one or more
name-value arguments, using any of the previous syntaxes.`L`

= loss(___,`Name=Value`

)

## Examples

### Compute the In-Sample MSE

Load the `carsmall`

data set. Consider `Displacement`

, `Horsepower`

, and `Weight`

as predictors of the response `MPG`

.

```
load carsmall
X = [Displacement Horsepower Weight];
```

Grow a regression tree using all observations.

tree = fitrtree(X,MPG);

Estimate the in-sample MSE.

L = loss(tree,X,MPG)

L = 4.8952

### Find the Pruning Level Yielding the Optimal In-Sample Loss

Load the `carsmall`

data set. Consider `Displacement`

, `Horsepower`

, and `Weight`

as predictors of the response `MPG`

.

```
load carsmall
X = [Displacement Horsepower Weight];
```

Grow a regression tree using all observations.

Mdl = fitrtree(X,MPG);

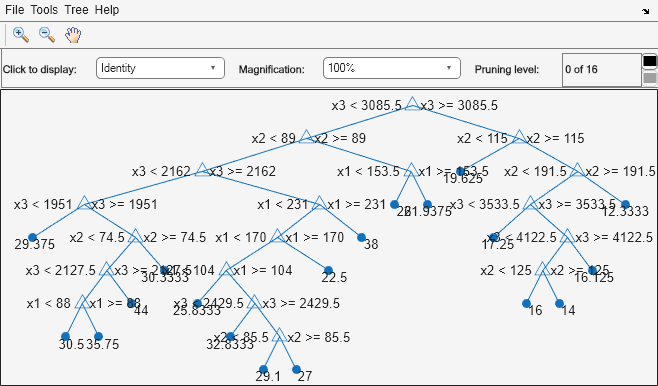

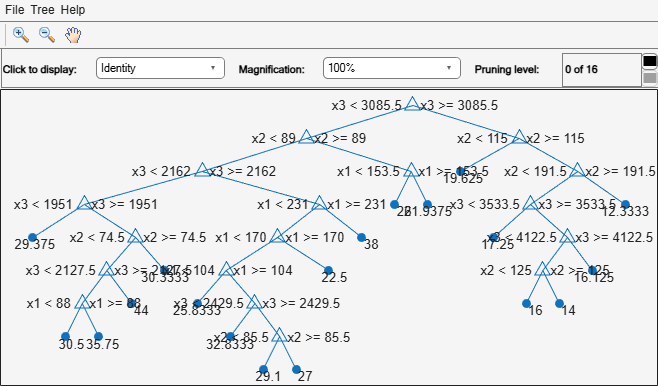

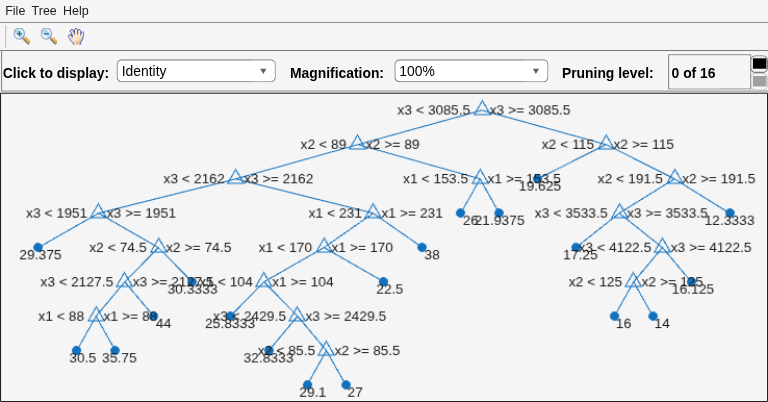

View the regression tree.

`view(Mdl,Mode="graph");`

Find the best pruning level that yields the optimal in-sample loss.

```
[L,se,NLeaf,bestLevel] = loss(Mdl,X,MPG,Subtrees="all");
bestLevel
```

bestLevel = 1

The best pruning level is level 1.

Prune the tree to level 1.

```
pruneMdl = prune(Mdl,Level=bestLevel);
view(pruneMdl,Mode="graph");
```

### Examine the MSE for Each Subtree

Unpruned decision trees tend to overfit. One way to balance model complexity and out-of-sample performance is to prune a tree (or restrict its growth) so that in-sample and out-of-sample performance are satisfactory.

Load the `carsmall`

data set. Consider `Displacement`

, `Horsepower`

, and `Weight`

as predictors of the response `MPG`

.

```
load carsmall
X = [Displacement Horsepower Weight];
Y = MPG;
```

Partition the data into training (50%) and validation (50%) sets.

n = size(X,1); rng(1) % For reproducibility idxTrn = false(n,1); idxTrn(randsample(n,round(0.5*n))) = true; % Training set logical indices idxVal = idxTrn == false; % Validation set logical indices

Grow a regression tree using the training set.

Mdl = fitrtree(X(idxTrn,:),Y(idxTrn));

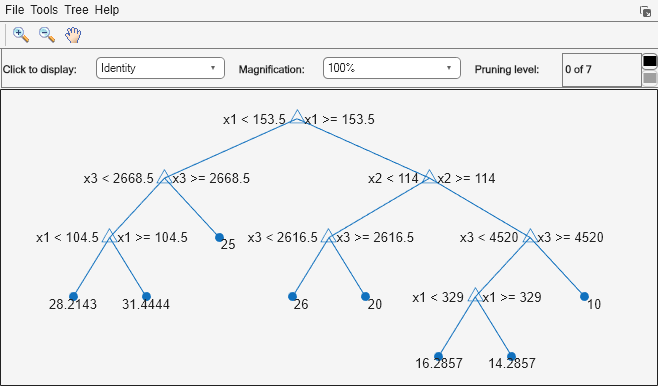

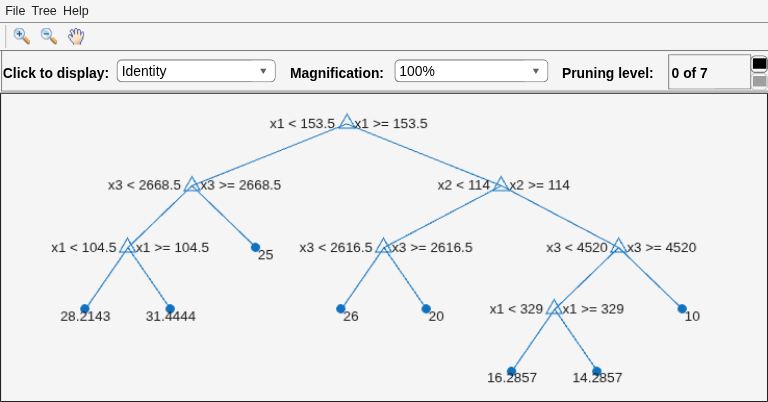

View the regression tree.

`view(Mdl,Mode="graph");`

The regression tree has seven pruning levels. Level 0 is the full, unpruned tree (as displayed). Level 7 is just the root node (i.e., no splits).

Examine the training sample MSE for each subtree (or pruning level) excluding the highest level.

m = max(Mdl.PruneList) - 1; trnLoss = resubLoss(Mdl,SubTrees=0:m)

`trnLoss = `*7×1*
5.9789
6.2768
6.8316
7.5209
8.3951
10.7452
14.8445

The MSE for the full, unpruned tree is about 6 units.

The MSE for the tree pruned to level 1 is about 6.3 units.

The MSE for the tree pruned to level 6 (i.e., a stump) is about 14.8 units.

Examine the validation sample MSE at each level excluding the highest level.

valLoss = loss(Mdl,X(idxVal,:),Y(idxVal),Subtrees=0:m)

`valLoss = `*7×1*
32.1205
31.5035
32.0541
30.8183
26.3535
30.0137
38.4695

The MSE for the full, unpruned tree (level 0) is about 32.1 units.

The MSE for the tree pruned to level 4 is about 26.4 units.

The MSE for the tree pruned to level 5 is about 30.0 units.

The MSE for the tree pruned to level 6 (i.e., a stump) is about 38.5 units.

To balance model complexity and out-of-sample performance, consider pruning `Mdl`

to level 4.

```

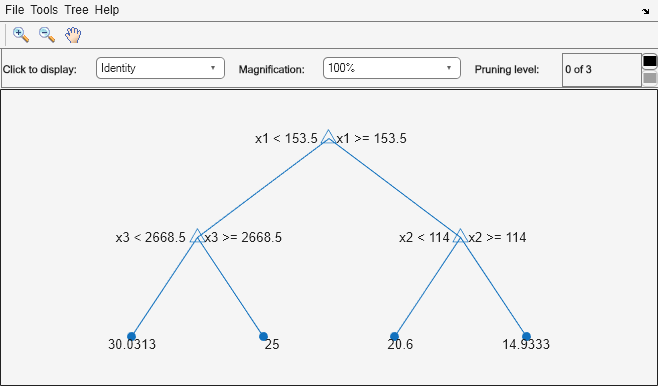

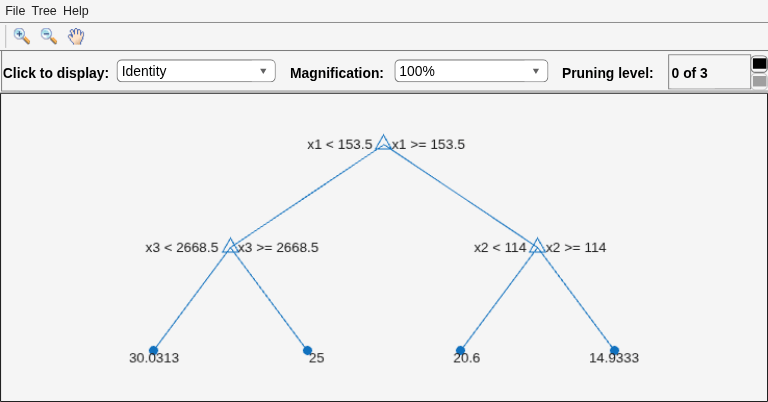

pruneMdl = prune(Mdl,Level=4);
view(pruneMdl,Mode="graph")
```

## Input Arguments

`tree`

— Trained regression tree

`RegressionTree`

object | `CompactRegressionTree`

object

Trained regression tree, specified as a `RegressionTree`

object created by the `fitrtree`

function or a `CompactRegressionTree`

object created by the `compact`

function.

`Tbl`

— Sample data

table

Sample data, specified as a table. Each row of `Tbl`

corresponds to one observation, and each column corresponds to one predictor
variable. `Tbl`

must contain all of the predictors used
to train `tree`

. Optionally, `Tbl`

can
contain additional columns for the response variable and observation
weights. Multicolumn variables and cell arrays other than cell arrays of
character vectors are not allowed.

If `Tbl`

contains the response variable used to train
`tree`

, then you do not need to specify
`ResponseVarName`

or `Y`

.

If you trained `tree`

using sample data contained in a
table, then the input data for this method must also be in a table.

**Data Types: **`table`

`X`

— Predictor values

numeric matrix

`ResponseVarName`

— Response variable name

name of a variable in `Tbl`

Response variable name, specified as the name of a variable in
`Tbl`

. If `Tbl`

contains the
response variable used to train `tree`

, then you do not
need to specify `ResponseVarName`

.

If you specify `ResponseVarName`

, then you must do so
as a character vector or string scalar. For example, if the response
variable is stored as `Tbl.Response`

, then specify it as
`"Response"`

. Otherwise, the software treats all
columns of `Tbl`

, including
`Tbl.ResponseVarName`

, as predictors.

**Data Types: **`char`

| `string`

`Y`

— Response data

numeric column vector

Response data, specified as a numeric column vector with the same number
of rows as `X`

. Each entry in `Y`

is
the response to the data in the corresponding row of
`X`

.

**Data Types: **`single`

| `double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`L = loss(tree,X,Y,Subtrees="all")`

prunes all
subtrees.

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

`LossFun`

— Loss function

`"mse"`

(default) | function handle

Loss function, specified as a function handle for loss, or
`"mse"`

representing mean-squared error. If you
pass a function handle `fun`

, `loss`

calls `fun`

as:

fun(Y,Yfit,W)

`Y`

is the vector of observed responses.`Yfit`

is the vector of predicted responses.`W`

is the observation weights. If you pass`W`

, the elements are normalized to sum to`1`

.

All the vectors have the same number of rows as
`Y`

.

**Example: **`LossFun="mse"`

**Data Types: **`function_handle`

| `char`

| `string`

`Subtrees`

— Pruning level

`0`

(default) | vector of nonnegative integers | `"all"`

Pruning level, specified as a vector of nonnegative integers in ascending order or
`"all"`

.

If you specify a vector, then all elements must be at least `0`

and at most
`max(tree.PruneList)`

. `0`

indicates the full,
unpruned tree and `max(tree.PruneList)`

indicates the completely pruned
tree (in other words, just the root node).

If you specify `"all"`

, then `loss`

operates on all
subtrees (in other words, the entire pruning sequence). This specification is equivalent
to using `0:max(tree.PruneList)`

.

`loss`

prunes `tree`

to each level indicated in
`Subtrees`

, and then estimates the corresponding output arguments.
The size of `Subtrees`

determines the size of some output
arguments.

To invoke `Subtrees`

, the properties `PruneList`

and
`PruneAlpha`

of `tree`

must be nonempty. In
other words, grow `tree`

by setting `Prune="on"`

, or
by pruning `tree`

using `prune`

.

**Example: **`Subtrees="all"`

**Data Types: **`single`

| `double`

| `char`

| `string`

`TreeSize`

— Tree size

`"se"`

(default) | `"min"`

Tree size, specified as one of the following:

`"se"`

— The`loss`

function returns`bestLevel`

that corresponds to the smallest tree whose mean squared error (MSE) is within one standard error of the minimum MSE.`"min"`

— The`loss`

function returns`bestLevel`

that corresponds to the minimal MSE tree.

**Example: **`TreeSize="min"`

`Weights`

— Observation weights

`ones(size(X,1),1)`

(default) | numeric vector | name of variable in `Tbl`

Observation weights, specified as a numeric vector or the name of a
variable in `Tbl`

. The software weights the
observations in each row in `X`

or
`Tbl`

with the corresponding value in
`Weights`

. The length of
`Weights`

must equal the number of rows in
`X`

or `Tbl`

.

If you specify the input data as a table `Tbl`

,
then you can specify `Weights`

as the name of a
variable in `Tbl`

that contains a numeric vector. In
this case, you must specify `Weights`

as a string
scalar or character vector. For example, if weights vector
`W`

is stored as `Tbl.W`

, then
specify `Weights`

as `"W"`

.
Otherwise, the software treats all columns of `Tbl`

,
including `W`

, as predictors when training the
model.

**Data Types: **`single`

| `double`

| `char`

| `string`

## Output Arguments

`se`

— Standard error of loss

numeric vector

Standard error of loss, returned as a vector of the length of
`Subtrees`

.

`NLeaf`

— Number of leaf nodes

numeric vector

Number of leaves in the pruned subtrees, returned as a numeric vector of
the length of `Subtrees`

. Leaf nodes are terminal nodes,
which give responses, not splits.

`bestLevel`

— Best pruning level

numeric scalar

Best pruning level as defined in the `TreeSize`

name-value argument, returned as a numeric scalar whose value depends on
`TreeSize`

:

When

`TreeSize`

is`"se"`

, the`loss`

function returns the highest pruning level with loss within one standard deviation of the minimum (`L`

+`se`

, where`L`

and`se`

relate to the smallest value in`Subtrees`

).When

`TreeSize`

is`"min"`

, the`loss`

function returns the element of`Subtrees`

with smallest loss, usually the smallest element of`Subtrees`

.

## More About

### Mean Squared Error

The mean squared error *m* of the predictions
*f*(*X _{n}*) with weight
vector

*w*is

$$m=\frac{{\displaystyle \sum {w}_{n}{\left(f\left({X}_{n}\right)-{Y}_{n}\right)}^{2}}}{{\displaystyle \sum {w}_{n}}}.$$

## Extended Capabilities

### Tall Arrays

Calculate with arrays that have more rows than fit in memory.

Usage notes and limitations:

Only one output is supported.

You can use models trained on either in-memory or tall data with this function.

For more information, see Tall Arrays.

### GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

The

`loss`

function does not support decision tree models trained with surrogate splits.

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

## Version History

**Introduced in R2011a**
