Post Temperature Data and Read from Channel

This example demonstrates the collection of environmental data and shows you how to post it from your device to a ThingSpeak™ channel. You use an ESP8266 and the ThingSpeak Communication Library to post data to a channel and retrieve data from a channel.

Supported Hardware

  • ESP-8266–12

  • ESP8266–12E

This example uses an analog thermistor and the built-in ADC from an ESP8266–12 to read the voltage and convert to temperature. A thermistor is a device with a resistance that is inversely proportional to temperature. The calibration data for the thermistor is stored in your channel and read by the device. Calibration data is from a fit to the Steinhart-Hart model. Some manufacturers provide this calibration data with the device. You can fit the parameters yourself by measuring the resistance of the thermistor at three distinct temperatures. For more information, see Calibrate Temperature Coefficients.

Prerequisites

  • Create a ThingSpeak Channel.

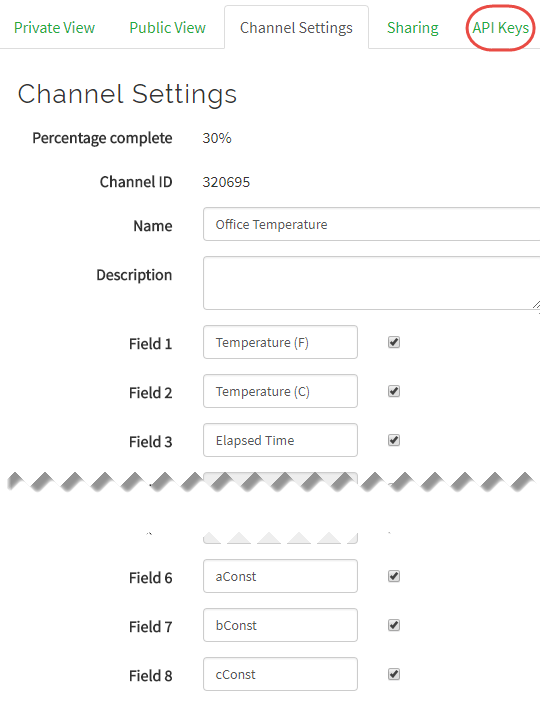

  • Be sure to enable at least two fields. One for reading, and one for writing. Data is written to field 1, 2, and 3. Fields 6, 7, and 8 are used to store the temperature calibration coefficients. This image shows the Channel Settings view for a single channel setup.

  • Record your Read API Key and Write API Key. They are available in the API Keys tab of the Channel Settings view, circled in the image.

  • Populate your calibration fields using a web browser address bar. The values here are estimates. You can start with these values, and then calibrate your thermistor as described in Calibrate Temperature Coefficients. Modify this text with your Write API Key and paste it directly to the address bar of your browser:

    Set the a coefficient:

    https://api.thingspeak.com/update?api_key=YOUR WRITE API KEY&field6=0.002039
    Set the b coefficient:
    https://api.thingspeak.com/update?api_key=YOUR WRITE API KEY&field7=0.0000672
    Set the c coefficient:
    https://api.thingspeak.com/update?api_key=YOUR WRITE API KEY&field8=0.0000008929

    The browser returns the number of entries in the channel. If you just created the channel, the browser returns a 1, 2, and 3 when you populate the three required calibration fields.

Required Hardware

  • ESP8266. This example uses the ESP8266–12E on a NodeMCU development board. The ESP8266–01 does not expose the ADC pin. It is possible to use a digital interface temperature sensor with the ESP8266–01.

  • 10-kΩ thermistor, for example Cantherm MF52A2103J3470

  • 10-kΩ resistor. (A high tolerance resistor, 1% or less, yields better results)

  • Breadboard

  • Jumper wires (at least 3)

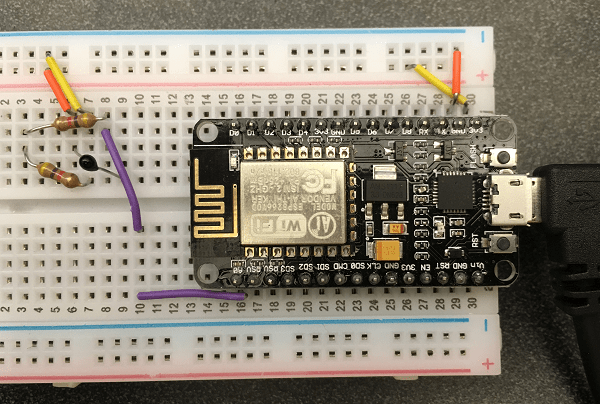

Schematic and Connections

Connect:

  • One pin of the thermistor to pin A0 on the Node MCU.

  • The second pin of the thermistor to a 10-kΩ resistor.

  • The second resistor pin to ground. Be sure that the ground is common to the Node MCU.

Program Your ESP8266

  1. Download the latest Arduino® IDE.

  2. Add the ThingSpeak Library for Arduino and ESP8266:

    Select Sketch > Include Library > manage Libraries. Select ThingSpeak to add it to your sketch.

  3. Add the ESP8266 Board Package.

    1. Under File > Preferences, enter http://arduino.esp8266.com/stable/package_esp8266com_index.json into Additional Board Manager URLs.

    2. Choose Tools > Boards > Board Manager. Enter ESP8266 in the search bar and install the package.

  4. Select the appropriate port and board in the Arduino IDE. The hardware used to generate this example used the Node MCU 1.0 (ESP 8266–12E) option.

  5. Create the application:

    Open a new window in the Arduino IDE, and save the file. Add the code provided here. Be sure to change the wireless network information, the channel IDs (you can use a single channel), the Read API Key, and the Write API Key. You do not need to change the coefficients in the code since the program reads them from your channel.

    Once connected, the device measures the voltage across the thermistor every two minutes. It calculates the temperature based on the calibration stored in your channel, and posts the temperature to your channel.

     Copy and Paste Full Code

    1. The first section is initialization of variables. Be sure to edit the Read API Key and Write API Key, your channel numbers, and wireless network connection information.

      #include <ThingSpeak.h>
      #include <ESP8266WiFi.h>

      // Network Parameters
      const char* ssid     = "SSSSSSS";
      const char* password = "PPPPPPPPPP";

      // ThingSpeak information
      char thingSpeakAddress[] = "api.thingspeak.com";
      unsigned long channelID = NNNNNN;
      char* readAPIKey = "XXXXXXXXXXXXXXXX";
      char* writeAPIKey = "YYYYYYYYYYYYYYYY";
      const unsigned long postingInterval = 120L * 1000L;
      unsigned int dataFieldOne = 1;                            // Field to write temperature data
      unsigned int dataFieldTwo = 2;                       // Field to write temperature data
      unsigned int dataFieldThree = 3;                     // Field to write elapsed time data
      unsigned int aField = 6;                             //Field to hold first constant of the thermistor calibration
      unsigned int bField = 7;                             //Field to hold second constant of the thermistor calibration
      unsigned int cField = 8;                             //Field to hold third constant of the thermistor calibration

      // Global variables
      // These constants are device specific.  You will need to get them from the manufacturer or determine them yourself.
      float aConst = 2.25E-02;
      float bConst = -0.003422894649;
      float cConst = 0.00001518485044;

      unsigned long lastConnectionTime = 0;
      long lastUpdateTime = 0;
      WiFiClient client;


    2. In the setup function, start the serial monitor and read the calibration constants.

      void setup() {

      Serial.begin(9600);
      Serial.println("Start");
      connectWiFi();

      // Read the constants at startup.
      aConst = readTSData( channelID, aField );
      bConst = readTSData( channelID, bField );
      cConst = readTSData( channelID, cField );
      }
    3. The main loop continuously checks to see how long it has been since the temperature was read. If the set time period has elapsed, the device is read, the temperature is calculated, and the output is written to your channel.

      void loop() {

          // Only update if posting time is exceeded
          if (millis() - lastUpdateTime >=  postingInterval) {

              float fahrenheitTemperature, celsiusTemperature;

              lastUpdateTime = millis();

              float readValue = analogRead(A0);
              float logR = log( 10000 * ( 1024 / readValue - 1 ));                 // Separate the calculation for simplicity and debugging

              celsiusTemperature = 1 / ( aConst + bConst * logR + cConst * pow(logR,3) ) - 273.15;   // Calculate the temperature in Celsius
              fahrenheitTemperature = celsiusTemperature * 9 / 5 + 32;
              Serial.println("ADC =  " + String( readValue )+ " Temp = "+String( fahrenheitTemperature ));
              write2TSData( channelID , dataFieldOne , celsiusTemperature , dataFieldTwo , fahrenheitTemperature , dataFieldThree , millis() );      // Write the temperature in F, C, and time since starting.
          }
      }
    4. Connect your device to the wireless network using the connectWiFi function.

      int connectWiFi(){

          while (WiFi.status() != WL_CONNECTED) {

              WiFi.begin( ssid, password );
              delay(2500);
              Serial.println("Connecting to WiFi");
          }

          Serial.println( "Connected" );
          ThingSpeak.begin( client );
      }
    5. Read data from a single field on a channel with readTSData. Write a single value to ThingSpeak using writeTSData, write multiple values simultaneously with write2TSdata.

      float readTSData( long TSChannel,unsigned int TSField ){

        float data =  ThingSpeak.readFloatField( TSChannel, TSField, readAPIKey );
        Serial.println( " Data read from ThingSpeak: " + String( data, 9 ) );
        return data;

      }

      // Use this function if you want to write a single field
      int writeTSData( long TSChannel, unsigned int TSField, float data ){
        int  writeSuccess = ThingSpeak.writeField( TSChannel, TSField, data, writeAPIKey ); // Write the data to the channel
        if ( writeSuccess ){

          Serial.println( String(data) + " written to Thingspeak." );
          }

          return writeSuccess;
      }

      //use this function if you want multiple fields simultaneously
      int write2TSData( long TSChannel, unsigned int TSField1, float field1Data, unsigned int TSField2, long field2Data, unsigned int TSField3, long field3Data ){

        ThingSpeak.setField( TSField1, field1Data );
        ThingSpeak.setField( TSField2, field2Data );
        ThingSpeak.setField( TSField3, field3Data );

        int writeSuccess = ThingSpeak.writeFields( TSChannel, writeAPIKey );
        return writeSuccess;
      }

Calibrate Temperature Coefficients

This example uses the Steinhart-Hart model to turn the measured resistance of the thermistor into a temperature. The model has the form:

T = 1 / ( A + B * ln( R ) + C * ln( R ) 3).

You can determine the coefficients by measuring the resistance of the thermistor at three different temperatures. An ice water bath is very near 0 °C, and room temperature is generally 24–26 °C. If you have access to boiling water, you have 100 °C. If you do not have boiling water, you can squeeze the thermistor between your fingers and use 33 °C as an estimate of the surface temperature. You can use your device to calibrate the coefficients with this procedure.

  1. Initialize the coefficients. Use these values or some other guess:

    A = 3.76595E-03
    B = -1.98462E-04
    C = 1.81973E-06
  2. Start your device and watch the serial monitor. The ADC value is an accurate measure of the voltage, but the temperature calculated incorrectly.

  3. Place your thermistor in an ice water bath (0 °C). Convert the ADC value to resistance with this formula:

    Thermistor resistance R = 105*( 1024 / ADC-1 ).

  4. Record the temperature and ADC values for room temperature (~25 °C) and elevated temperature. If boiling water is not available, 33 °C is a reasonable estimate if you squeeze your fingers on the thermistor.

  5. Convert all ADC values to resistance, and use this Thermistor Calculator to solve for the coefficients for your thermistor. Upload your new coefficients to your channel and reset the device.
