Write Data and Execute TalkBack Command

Update channel data with HTTP GET or POST and execute TalkBack command

Request

HTTP Method

POST or GET

URL

https://api.thingspeak.com/update.<format>

URL Parameters

NameDescription

<format>

(Required) Format for the HTTP response, specified as blank, json, or xml.

Example: https://api.thingspeak.com/update.json?api_key=XXXXXXXXXXXXXXXXtalkback_key=YYYYYYYYYYYYYYYY

Body

NameDescriptionValue Type
api_key

(Required) Specify Write API Key for this specific channel. You can also send the Write API Key using a THINGSPEAKAPIKEY HTTP header. The Write API Key is found on the API Keys tab of the channel view.

string

talkback_key

(Required) API key for a specific instance of TalkBack. Including the TalkBack API key causes the next command in the queue to be removed and returns the command in the response.

string
field<X>

(Optional) Field X data, where X is the field ID

any
lat

(Optional) Latitude in degrees

decimal

long

(Optional) Longitude in degrees

decimal
elevation

(Optional) Elevation in meters

integer
status

(Optional) Status update message

string
twitter(Optional) Twitter® username linked to ThingTweetstring
tweet(Optional) Twitter status updatestring
created_at

(Optional) Date when feed entry was created, in ISO 8601 format, for example, 2014-12-31 23:59:59. Must be unique within the channel. Time zones can be specified using the timezone parameter.

datetime

Content-Type

Content-Type is required only for the POST method, not for the GET method.

Use application/json for updates in JSON format.

Use application/x-www-form-urlencoded for all other updates.

Response

Success

HTTP Status Code

200 OK

Body

 Text Example

 JSON Example

 XML Example

Error

For the full list, see Error Codes.

Examples

collapse all

You can use POSTMAN to try out your HTTP requests using the RESTful API for ThingSpeak. This example shows how to simultaneously update a channel and execute a TalkBack command from an existing queue using POSTMAN.

Write 123 to field 1 of a channel and return the next TalkBack command in an existing TalkBack queue.

POST https://api.thingspeak.com/update
     api_key=XXXXXXXXXXXXXXXX
     talkback_key=YYYYYYYYYYYYYYYYY

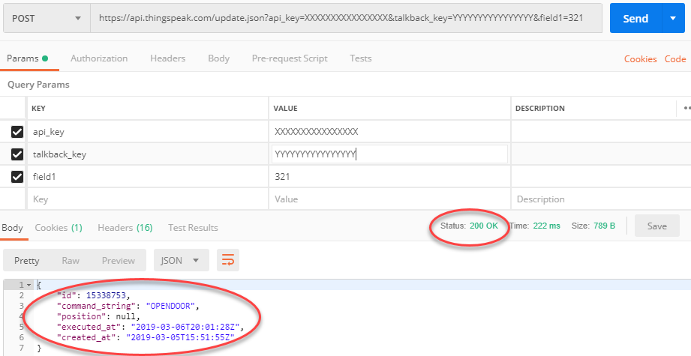

  1. In POSTMAN, select POST from the drop-down list of HTTP verbs, and enter https://api.thingspeak.com/update in the address bar.

  2. Enter the additional parameters and values:

    • Key: api_key, Value: XXXXXXXXXXXXXXXX

    • Key: talkback_key, Value: YYYYYYYYYYYYYYYY

The response is in text format. Note the server response value of 200 OK, which indicates successful channel update and execution of the TalkBack command.

The executed command is shown in the response.

Limitations

All timestamps must be unique. You cannot write new data using timestamps that match existing data in the channel.
