Fixed wing aircraft dimensions

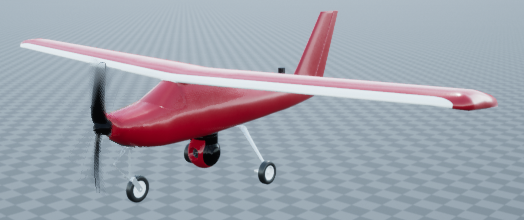

Fixed Wing Aircraft is one of the vehicles that you can use within the Unreal Engine® simulation environment. This environment is rendered using the Unreal Engine from Epic Games®. The origin is located at the center of the camera gimbal located on the underside of the aircraft. For detailed specifications of the vehicle dimensions , see the Dimensions section.
To add this type of vehicle to the 3D simulation environment:
Add a Simulation 3D UAV Vehicle block to your Simulink® model.
In the block, set the Type parameter to

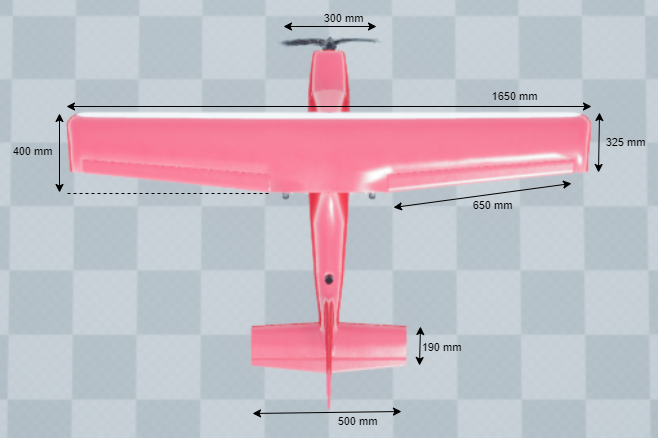

Top-down view— Vehicle width dimensions

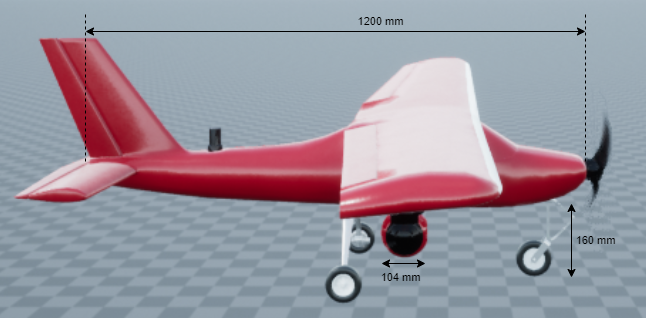

Side view— Vehicle length, landing gear height, and camera dimensions
Front view— Tire width dimensions

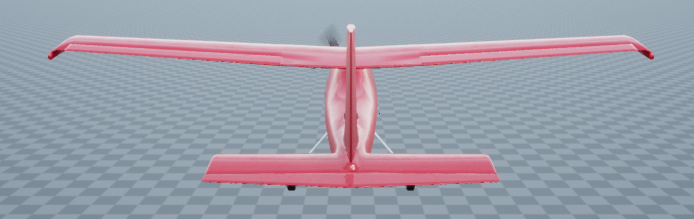

Rear view— Vehicle height and rear axle dimensions
