This reference application represents a full vehicle dynamics model undergoing a swept-sine steering maneuver. You can create your own versions, providing a framework to test that your vehicle meets the design requirements under normal and extreme driving conditions. Use the reference application to analyze vehicle ride and handling and develop chassis controls. To analyze the dynamic steering response, use this reference application.
The swept-sine steering maneuver tests the vehicle frequency response to steering inputs. In the test, the driver:
Accelerates until the vehicle hits a target velocity.
Commands a sinusoidal steering wheel input.
Linearly increase the frequency of the sinusoidal wave.
To test advanced driver assistance systems (ADAS) and automated driving (AD) perception, planning, and control software, you can run the maneuver in a 3D environment. For the 3D visualization engine platform requirements and hardware recommendations, see 3D Visualization Engine Requirements and Limitations.
To create and open a working copy of the swept-sine steering reference application project, enter
This table summarizes the blocks and subsystems in the reference application. Some subsystems contain variants.
|Reference Application Element||Description||Variants|
Swept Sine Reference Generator block
Generate the sinusoidal steering commands for a swept-sine steering maneuver.
Implements the driver model that the reference application uses to generate acceleration, braking, gear, and steering commands.
By default, Driver Commands subsystem variant is the Predictive Driver block.
Implements wind and road forces.
Implements controllers for engine control units (ECUs), transmissions, anti-lock braking systems (ABS), and active differentials.
Provides the vehicle trajectory, driver response, and 3D visualization.
To override the default variant, on the Modeling tab, in the Design section, click the drop-down. In the General section, select Variant Manager. In the Variant Manager, navigate to the variant that you want to use. Right-click and select Override using this Choice.
Use the Swept Sine Reference block to generate the sinusoidal steering commands for a swept-sine steering maneuver.
Longitudinal velocity setpoint — Target velocity
Steering amplitude — Sinusoidal wave amplitude
Final frequency — Cut off frequency to stop the maneuver
The Driver Commands block implements the driver model that the reference application uses to generate acceleration, braking, gear, and steering commands. By default, if you select the Reference Generator block parameter Use maneuver-specific driver, initial position, and scene, the reference application selects the driver for the maneuver that you specified.
Vehicle Command Mode Setting
Longitudinal Driver block — Longitudinal speed-tracking controller. Based on reference and feedback velocities, the block generates normalized acceleration and braking commands that can vary from 0 through 1. Use the block to model the dynamic response of a driver or to generate the commands necessary to track a longitudinal drive cycle.
Predictive Driver block — Controller that generates normalized steering, acceleration, and braking commands to track longitudinal velocity and a lateral reference displacement. The normalized commands can vary between -1 to 1. The controller uses a single-track (bicycle) model for optimal single-point preview control.
Implements an open-loop system so that you can configure the reference application for constant or signal-based steering, acceleration, braking, and gear command input.
The Environment subsystem generates the wind and ground forces. The reference application has these environment variants.
Uses Vehicle Terrain Sensor block to implement ray tracing in 3D environment
Implements a constant friction value
The Controllers subsystem generates engine torque, transmission gear, brake pressure, and differential pressure commands.
The ECU controller generates the engine torque command. The controller prevents
over-revving the engine by limiting the engine torque command to the value specified by
model workspace variable
EngRevLim. By default, the value is 7000
rpm. If the differential torque command exceeds the limited engine torque command, the
ECU sets the engine torque command to the commanded differential torque.
The Transmission Controller subsystem generates the transmission gear command. The controller includes these variants.
Implements a transmission control module (TCM) that uses Stateflow® logic to generate the gear command based on the vehicle acceleration, wheel speed, and engine speed.
Open loop transmission control. The controller sets the gear command to the gear request.
Implements a transmission control module (TCM) that uses Stateflow logic to generate the gear command based on the vehicle acceleration, brake command, wheel speed, engine speed, and gear request.
Implements a paddle controller that uses the vehicle acceleration and engine speed to generate the gear command.
The Brake Controller subsystem implements a Brake Pressure Control subsystem to generate the brake pressure command. The Brake Pressure Control subsystem has these variants.
Implements an anti-lock braking system (ABS) feedback controller that switches between two states to regulate wheel slip. The bang-bang control minimizes the error between the actual slip and desired slip. For the desired slip, the controller uses the slip value at which the mu-slip curve reaches a peak value. This desired slip value is optimal for minimum braking distance.
Open loop brake control. The controller sets the brake pressure command to a reference brake pressure based on the brake command.
Five-state ABS control when you simulate the maneuver.1,2,3 The five-state ABS controller uses logic-switching based on wheel deceleration and vehicle acceleration to control the braking pressure at each wheel.
Consider using five-state ABS control to prevent wheel lock-up, decrease braking distance, or maintain yaw stability during the maneuver. The default ABS parameters are set to work on roads that have a constant friction coefficient scaling factor of 0.6.
The Active Differential Control subsystem generates the differential pressure command. To calculate the command, the subsystem has these variants.
Implements a controller that generates the differential pressure command based on the:
Does not implement a controller. Sets the differential pressure command to 0.
The Passenger Vehicle subsystem has an engine, controllers, and a vehicle body with four wheels. Specifically, the vehicle contains these subsystems.
|Body, Suspension, Wheels Subsystem||Variant||Description|
Vehicle with four wheels:
Vehicle with four wheels.
Mapped spark-ignition (SI) engine
Steering, Transmission, Driveline, and Brakes Subsystem
Driveline Ideal Fixed Gear
Configure the driveline for all-wheel, front-wheel, rear-wheel, or rear-wheel active differential drive and specify the type of torque coupling.
Implements an ideal fixed gear transmission.
Implements the heuristic response of a hydraulic system when the controller applies a brake command to a cylinder. Includes front and rear wheel bias coefficients. The subsystem converts the applied pressure to a cylinder spool position. To generate the brake pressure, the spool applies a flow downstream to the cylinders.

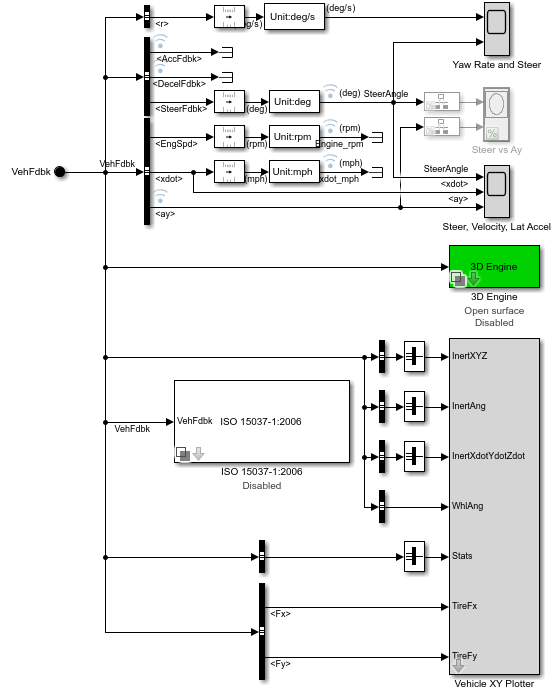

When you run the simulation, the Visualization subsystem provides driver, vehicle, and response information. The reference application logs vehicle signals during the maneuver, including steering, vehicle and engine speed, and lateral acceleration. You can use the Simulation Data Inspector to import the logged signals and examine the data.
Yaw Rate and Steer Scope block
Yaw rate and steering angle versus time:
Steer vs Ay Scope block
Steering angle versus lateral acceleration
Steer, Velocity, Lat Accel Scope block
Vehicle XY Plotter
Plot of vehicle longitudinal versus lateral distance
ISO 15037-1:2006 block
Display ISO standard measurement signals in the Simulation Data Inspector, including steering wheel angle and torque, longitudinal and lateral velocity, and sideslip angle
Optionally, you can enable or disable the 3D visualization environment. For the 3D visualization engine platform requirements and hardware recommendations, see 3D Visualization Engine Requirements and Limitations. After you open the reference application, in the Visualization subsystem, open the 3D Engine block. Set these parameters.
3D Engine to Enabled.
Scene to one of the scenes, for example
To position the vehicle in the scene:
Select the position initialization method:
Recommended for scene — Set the initial vehicle position to values recommended for the scene
User-specified — Set your own initial vehicle position
Click Update the model workspaces with the initial values to overwrite the initial vehicle position in the model workspaces with the applied values.
When you run the simulation, view the vehicle response in the
To open and close the
AutoVrtlEnv window, use the
Simulink® Run and Stop buttons. If you manually close the
AutoVrtlEnv window, Simulink stops the simulation with an error.
When you enable the 3D visualization environment, you cannot step the simulation back.
To smoothly change the camera views, use these key commands.
For additional camera controls, use these key commands.
Cycle the view between all vehicles in the scene.
Mouse scroll wheel
Control the camera distance from the vehicle.
Toggle a camera lag effect on or off. When you enable the lag effect, the camera view includes:
This lag enables improved visualization of overall vehicle acceleration and rotation.
Toggle the free camera mode on or off. When you enable the free camera mode, you can use the mouse to change the pitch and yaw of the camera. This mode enables you to orbit the camera around the vehicle.
 Pasillas-Lépine, William. "Hybrid modeling and limit cycle analysis for a class of five-phase anti-lock brake algorithms." Vehicle System Dynamics 44, no. 2 (2006): 173-188.
 Gerard, Mathieu, William Pasillas-Lépine, Edwin De Vries, and Michel Verhaegen. "Improvements to a five-phase ABS algorithm for experimental validation." Vehicle System Dynamics 50, no. 10 (2012): 1585-1611.
 Bosch, R. "Bosch Automotive Handbook." 10th ed. Warrendale, PA: SAE International, 2018.
