Assign detections to tracks for multiobject tracking

```
[assignments,unassignedTracks,unassignedDetections]
= assignDetectionsToTracks(costMatrix,costOfNonAssignment)
```

```
[assignments,unassignedTracks,unassignedDetections]
= assignDetectionsToTracks(costMatrix, unassignedTrackCost,unassignedDetectionCost)
```

`[`

assigns detections to tracks in the context of multiple object tracking using
the James Munkres's variant of the Hungarian assignment algorithm. It also
determines which tracks are missing and which detections should begin new
tracks. It returns the indices of assigned and unassigned tracks, and unassigned
detections. The `assignments`

,`unassignedTracks`

,`unassignedDetections`

]
= assignDetectionsToTracks(`costMatrix`

,`costOfNonAssignment`

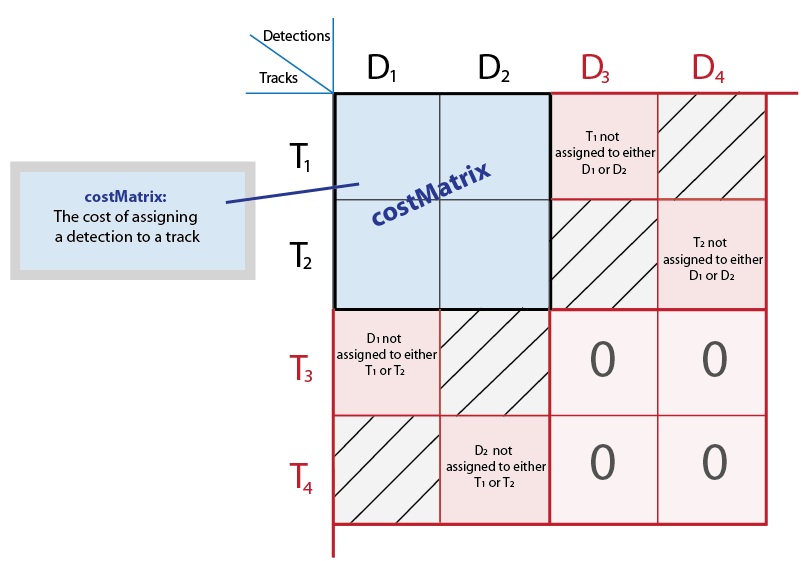

)`costMatrix`

must be an
*M*-by-*N* matrix. In this matrix,
*M* represents the number of tracks, and
*N* is the number of detections. Each value represents the
cost of assigning the *N*^{th}
detection to the *M*^{th} track. The
lower the cost, the more likely that a detection gets assigned to a track. The

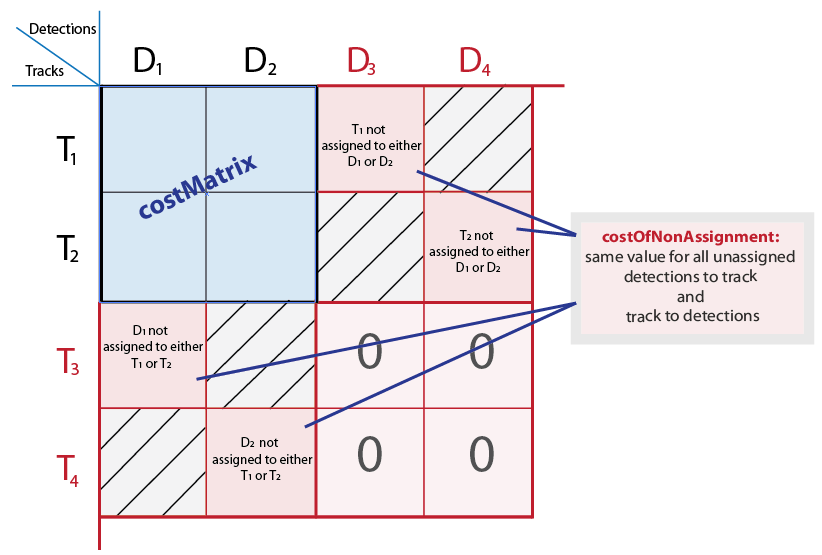

`costOfNonAssignment`

scalar input represents the cost of
a track or a detection remaining unassigned.

`[`

specifies
the cost of unassigned tracks and detections separately. The `assignments`

,`unassignedTracks`

,`unassignedDetections`

]
= assignDetectionsToTracks(`costMatrix`

, `unassignedTrackCost`

,`unassignedDetectionCost`

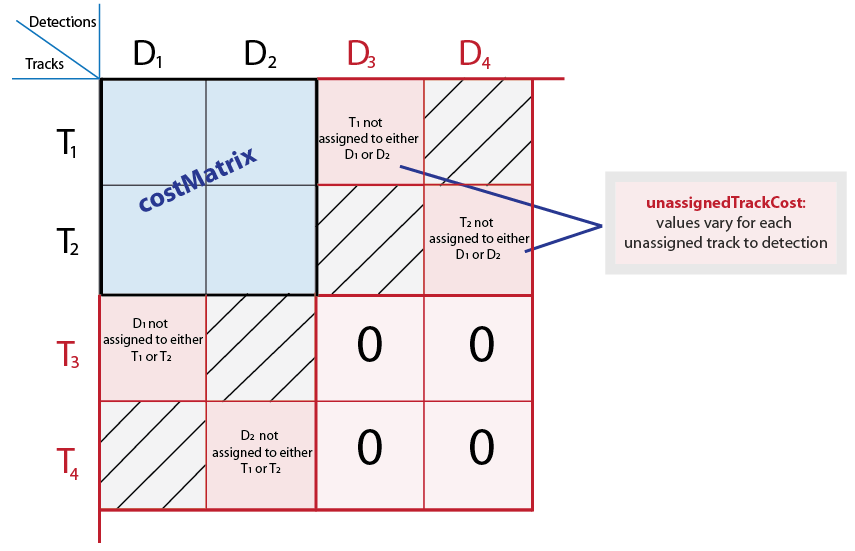

)`unassignedTrackCost`

must
be a scalar value, or an *M*-element vector, where *M* represents
the number of tracks. For the *M*-element vector,
each element represents the cost of not assigning any detection to

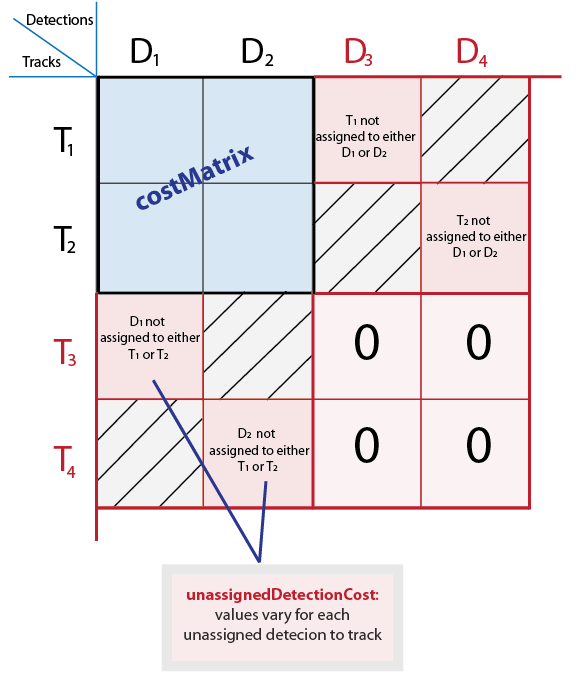

that track. The `unassignedDetectionCost`

must
be a scalar value or an *N*-element vector, where *N* represents
the number of detections.

[1] Miller, Matt L., Harold S. Stone, and Ingemar J. Cox,
“Optimizing Murty's Ranked Assignment Method,” *IEEE
Transactions on Aerospace and Electronic Systems*, 33(3),
1997.

[2] Munkres, James, “Algorithms for Assignment and
Transportation Problems,” *Journal of the Society
for Industrial and Applied Mathematics*, Volume 5, Number
1, March, 1957.
