plot

Plot 3-D map points and estimated camera trajectory in visual SLAM

Since R2023b

Syntax

plot(vslam)

plot(vslam,Name=Value)

ax = plot(___)

Description

plot(vslam) plots the 3-D map points and estimated camera trajectory from the visual SLAM object vslam.

plot(vslam,Name=Value) specifies options using one or more name-value arguments. For example, MarkerSize=10 sets the diameter of the marker size to 10 points.

ax = plot(___) returns the axes handle for the 3-D mapped points of the plot, using any combination of input arguments from previous syntaxes.

Examples

Monocular Visual SLAM Using TUM RGB-D Data Set

Perform monocular visual simultaneous localization and mapping (vSLAM) using the data from the TUM RGB-D Benchmark. You can download the data to a temporary directory using a web browser or by running this code:

baseDownloadURL = "https://vision.in.tum.de/rgbd/dataset/freiburg3/rgbd_dataset_freiburg3_long_office_household.tgz";
dataFolder = fullfile(tempdir,"tum_rgbd_dataset",filesep);
options = weboptions(Timeout=Inf);
tgzFileName = [dataFolder,"fr3_office.tgz"];
folderExists = exist(dataFolder,"dir");

% Create a folder in a temporary directory to save the downloaded file
if ~folderExists
    mkdir(dataFolder)
    disp("Downloading fr3_office.tgz (1.38 GB). This download can take a few minutes.")
    websave(tgzFileName,baseDownloadURL,options);

    % Extract contents of the downloaded file
    disp("Extracting fr3_office.tgz (1.38 GB) ...")
    untar(tgzFileName,dataFolder);
end

Create an pixelLabelImageDatastore object to store all the RGB images.

imageFolder = [dataFolder,"rgbd_dataset_freiburg3_long_office_household/rgb/"];
imds = imageDatastore(imageFolder);

Specify your camera intrinsic parameters, and use them to create a monocular visual SLAM object.

intrinsics = cameraIntrinsics([535.4 539.2],[320.1 247.6],[480 640]);
vslam = monovslam(intrinsics);

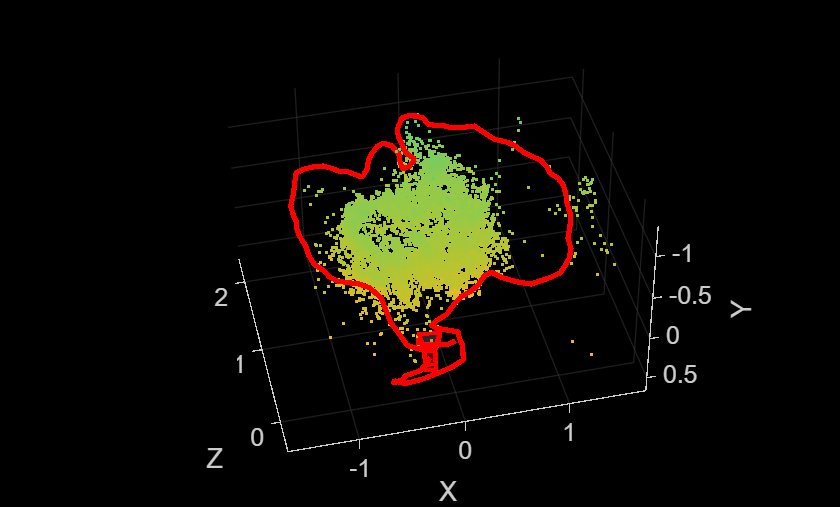

Process each image frame, and visualize the camera poses and 3-D map points.

for i = 1:numel(imds.Files)
    addFrame(vslam,readimage(imds,i))

    if hasNewKeyFrame(vslam)
        % Query 3-D map points and camera poses
        xyzPoints = mapPoints(vslam);
        [camPoses,viewIds] = poses(vslam);

        % Display 3-D map points and camera trajectory
        plot(vslam)
    end

    % Get current status of system
    status = checkStatus(vslam);

    % Stop adding frames when tracking is lost
    if status == uint8(0)
        break
    end
end

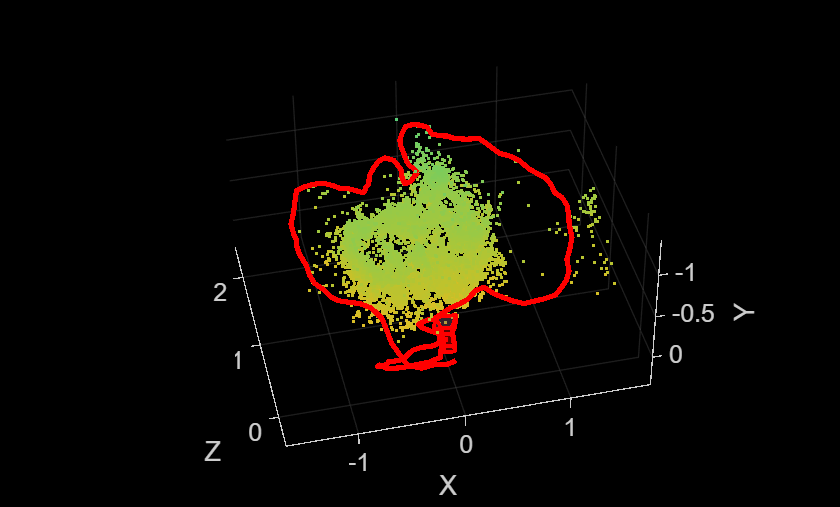

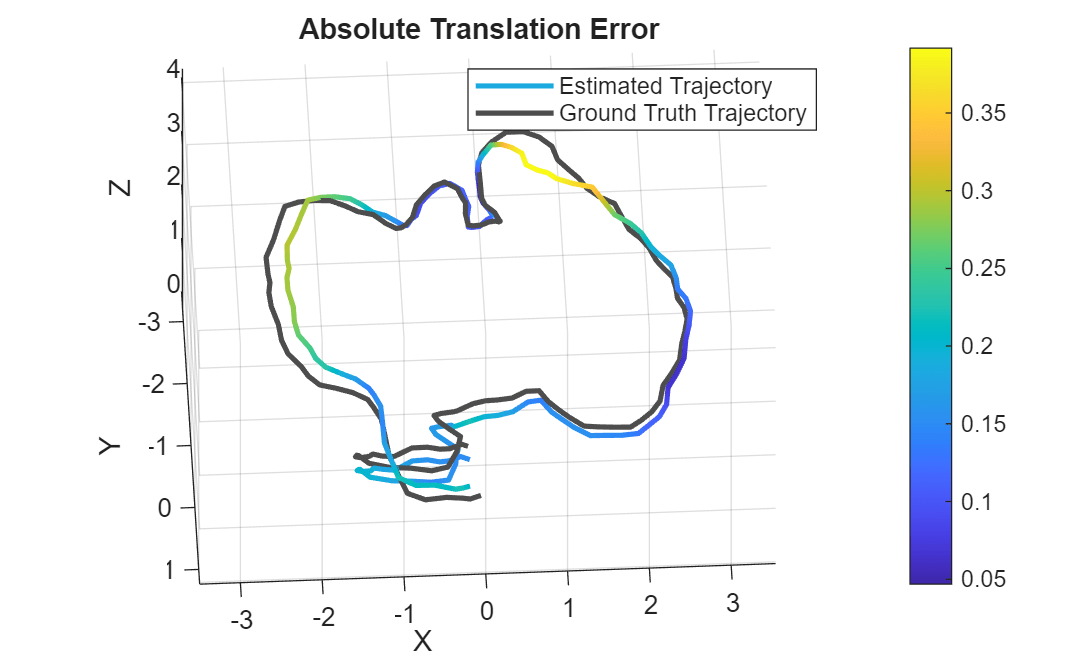

Once all the frames have been processed, reset the system.

while ~isDone(vslam)
    plot(vslam)
end
reset(vslam)

Input Arguments

vslam — Visual SLAM object

monovslam object

Visual SLAM object, specified as a monovslam object.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: plot(vslam,MarkerSize=10), sets the diameter of the marker to 10 points.

MarkerSize — Diameter of markers for 3-D map points

6 (default) | positive integer

Diameter of markers for 3-D map points, specified as a positive integer in points.

MarkerColor — Color of markers for 3-D map points

[0,1,0] (default) | RGB triplet | short or long color name

Color of markers for 3-D map points, specified as an RGB triplet or a short or long color name. Each value within an RGB triplet must be in the range [0, 1]

ColorSource — Colormap source for markers

"Y" (default) | "X" | "Z" | "MarkerColor"

Colormap source for markers, specified as "X", "Y", "Z", or "MarkerColor".

CameraSize — Width of camera base

0.1 (default) | scalar

Width of the camera base, specified as a scalar in the data units of the axes.

CameraColor — Color of camera

[1,0,0] (default) | RGB triplet | short or long color name

Color of the camera, specified as an RGB triplet or a short or long color name. Each value within an RGB triplet must be in the range [0, 1].

Parent — Axes for visualization

Axes object | UIAxes object

Axes for visualization, specified as an Axes object or a UIAxes object. Use this name-value argument to visualize the plot in a UI for which you have specified Figure and Axes properties.

Output Arguments

ax — Axes handle

Axes graphics object

Axes handle, returned as an axes graphics object

Version History

Introduced in R2023b
