# pcsegdist

Segment point cloud into clusters based on Euclidean distance

## Syntax

## Description

segments a point cloud into clusters, with a minimum Euclidean distance of
`labels`

= pcsegdist(`ptCloud`

,`minDistance`

)`minDistance`

between points from different clusters.
`pcsegdist`

assigns an integer cluster label to each point in
the point cloud, and returns the `labels`

of all points.

`[`

also returns the number of clusters.`labels`

,`numClusters`

] = pcsegdist(`ptCloud`

,`minDistance`

)

`[___] = pcsegdist(___,`

sets properties using name-value arguments. For example, `Name=Value`

)```
labels =
pcsegdist(
```

sets the minimum and maximum number of points in each cluster to
`ptCloud`

,`minDistance`

,NumClusterPoints=[1,Inf])`[1,Inf]`

.

## Examples

### Cluster Point Cloud Based on Euclidean Distance

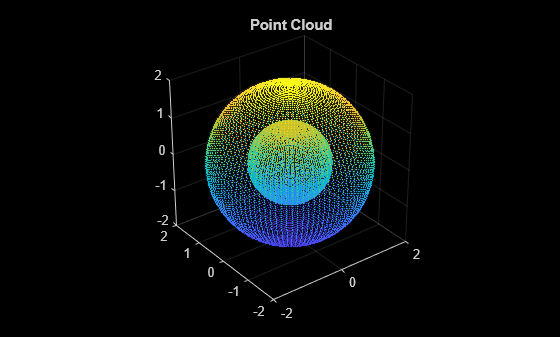

Create two concentric spheres and combine them.

```
[X,Y,Z] = sphere(100);
loc1 = [X(:),Y(:),Z(:)];
loc2 = 2*loc1;
ptCloud = pointCloud([loc1;loc2]);
pcshow(ptCloud)
title('Point Cloud')
```

Set the minimum Euclidean distance between clusters.

minDistance = 0.5;

Segment the point cloud.

[labels,numClusters] = pcsegdist(ptCloud,minDistance);

Plot the labeled results. The points are grouped into two clusters.

```
pcshow(ptCloud.Location,labels)
colormap(hsv(numClusters))
title('Point Cloud Clusters')
```

### Cluster Lidar Point Cloud Based on Euclidean Distance

Load an organized lidar point cloud to the workspace.

`ld = load('drivingLidarPoints.mat');`

Detect the ground plane. Distance is measured in meters.

maxDistance = 0.9; referenceVector = [0 0 1]; [~,inliers,outliers] = pcfitplane(ld.ptCloud,maxDistance,referenceVector);

Remove the ground plane points.

ptCloudWithoutGround = select(ld.ptCloud,outliers);

Cluster the point cloud with a minimum of 10 points per cluster using the exhaustive method.

minDistance = 2; minPoints = 10; [labels,numClusters] = pcsegdist(ptCloudWithoutGround,minDistance,Method="exhaustive",... NumClusterPoints=minPoints);

Remove the points with a label value of `0`

.

idxValidPoints = find(labels); labelColorIndex = labels(idxValidPoints); segmentedPtCloud = select(ptCloudWithoutGround,idxValidPoints);

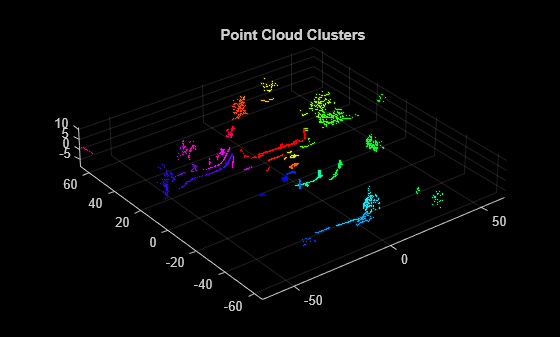

Plot the labeled results.

```
figure
colormap(hsv(numClusters))
pcshow(segmentedPtCloud.Location,labelColorIndex)
title('Point Cloud Clusters')
```

## Input Arguments

`ptCloud`

— Point cloud

`pointCloud`

object

Point cloud, specified as a `pointCloud`

object.

`minDistance`

— Minimum Euclidean distance

positive scalar

Minimum Euclidean distance between points from two different clusters, specified as a positive scalar.

**Data Types: **`single`

| `double`

### Name-Value Arguments

**Example: **`ParallelNeighborSearch`

=`false`

sets
the `ParallelNeighborSearch`

to
`false`

.

Specify optional pairs
of arguments as `Name1=Value1,...,NameN=ValueN`

, where
`Name`

is the argument name and `Value`

is the
corresponding value. Name-value arguments must appear after other arguments, but the
order of the pairs does not matter.

`NumClusterPoints`

— Minimum and maximum number of points in each cluster

`[1,Inf]`

(default) | 2-element vector | scalar

Minimum and maximum number of points in each cluster, specified as a
scalar or a 2-element vector of the form
[*minPoints*,*maxPoints*]. When
you specify `NumClusterPoints`

as a scalar, the
maximum number of points in the cluster is unrestricted. The function
sets `labels`

to `0`

when clusters
are outside of the specified range.

`Method`

— Method to segment the point cloud

`"approximate"`

(default) | `"exhaustive"`

Method to segment the point cloud, specified as
`"approximate"`

or `"exhaustive"`

.
Set `Method`

to `"exhaustive"`

to
ensure that no points outside of each cluster are less than
`minDistance`

away. This approach uses the
density-based spatial clustering of applications with noise (DBSCAN)
algorithm. Set `Method`

to
`"approximate"`

for faster segmentation, but at the
expense of accuracy.

`ParallelNeighborSearch`

— Parallel neighbor search to segment point cloud data

`false`

(default) | `true`

Parallel neighbor search to segment point cloud data, specified as
`true`

or `false`

. Set this
property to `true`

when you expect there to be
approximately 50 clusters or more with fewer than 100 points per
cluster.

A parallel neighbor search can improve segmentation speed for some
datasets. Improved speed depends on the dataset and the value of the
`minDistance`

input. This argument is not
supported when you set the `Method`

name-value
argument to `"exhaustive"`

.

## Output Arguments

`labels`

— Cluster labels

*M*-by-1 vector | *M*-by-*N* matrix

Cluster labels, returned as one of the following.

If the point cloud,

`ptCloud`

, stores point locations as an unorganized*M*-by-3 matrix, then`labels`

is an*M*-by-1 vector.If the point cloud,

`ptCloud`

, stores point locations as an organized*M*-by-*N*-by-3 matrix, then`labels`

is an*M*-by-*N*matrix.

Each point in the point cloud has a cluster label, specified
by the corresponding element in `labels`

. The value of
each label is an integer from `0`

to the number of clusters
of valid points, `numClusters`

. The value
`0`

is reserved for invalid points, such as points with
`Inf`

or `NaN`

coordinates.

**Data Types: **`uint32`

`numClusters`

— Number of clusters

positive integer

Number of clusters, returned as a positive integer. The number of clusters
excludes the label value `0`

, which is reserved for invalid
points. The function returns `numClusters`

as a
`single`

data type when the value of the
`Location`

property of the `ptCloud`

object is `single`

. Otherwise, the function returns the
value as a `double`

data type.

**Data Types: **`single`

| `double`

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

The `"exhaustive"`

segmentation method, which can be set by using
the `Method`

name-value argument, does not support C/C++ code
generation.

### GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

The generated CUDA

^{®}code segments the point cloud into clusters by using a combination of algorithms described in [1] and [2]. The output from the generated code can differ slightly with results from MATLAB^{®}simulation.The

`NumClusterPoints`

name-value argument is not supported for GPU code generation.The

`"exhaustive"`

segmentation method, which can be set by using the`Method`

name-value argument, does not support GPU code generation.

## References

[1] Andrade, Guilherme,
Gabriel Ramos, Daniel Madeira, Rafael Sachetto, Renato Ferreira, and Leonardo
Rocha. *“G-DBSCAN: A GPU Accelerated Algorithm for Density-Based
Clustering.”*
*Procedia Computer Science* 18 (2013): 369–78.
https://doi.org/10.1016/j.procs.2013.05.200.

[2] Kalentev, Oleksandr,
Abha Rai, Stefan Kemnitz, and Ralf Schneider. *“Connected Component
Labeling on a 2D Grid Using CUDA.”*
*Journal of Parallel and Distributed Computing*
71, no. 4 (April 2011): 615–20. https://doi.org/10.1016/j.jpdc.2010.10.012.

## Version History

**Introduced in R2018a**

### R2024b: New `Method`

name-value argument for segmenting point cloud

Configure the `Method`

name-value argument to choose between
`"exhaustive"`

or `"approximate"`

segmentation methods. The `ParallelNeighborhood`

name-value
argument does not support the `"exhaustive"`

method.
